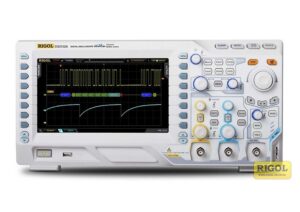

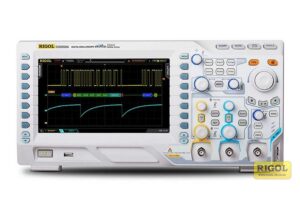

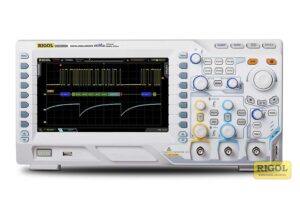

Rigol DS2000A Series Digital Oscilloscopes

Free Software Options Bundle (£215.00 Value)
Purchase any DS/MSO2000A Series Oscilloscope and receive a Software Options Bundle (BND-MSO-DS2000A)

Bandwidth: 100MHz, 200MHz, 300MHz | Channels: 2 | Max Sample Rate: 2GSa/s

• Low Noise floor with wide vertical range (500uV/div ~ 10V/div)
• Waveform Record and Playback
• 16 Digital Channels (MSO Models)
• Integrated 2 Channel full function 25MHz generator
• Serial bus triggering and decoding

The 2000 Series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The 2000 Series Oscilloscopes bring advanced triggering, large display, and decoding features to customers with a limited budget. This new, low starting price enables customers to analyse higher speed signals with a larger display for less than previously possible. The 2000A Series is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you’ve got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO models add 16 bits of mixed signal logic channels with included RPL2316 digital probe kit. The ‘-S’ models provide an embedded 2 channel, 25 MHz waveform generator.
