DHO1000 Series

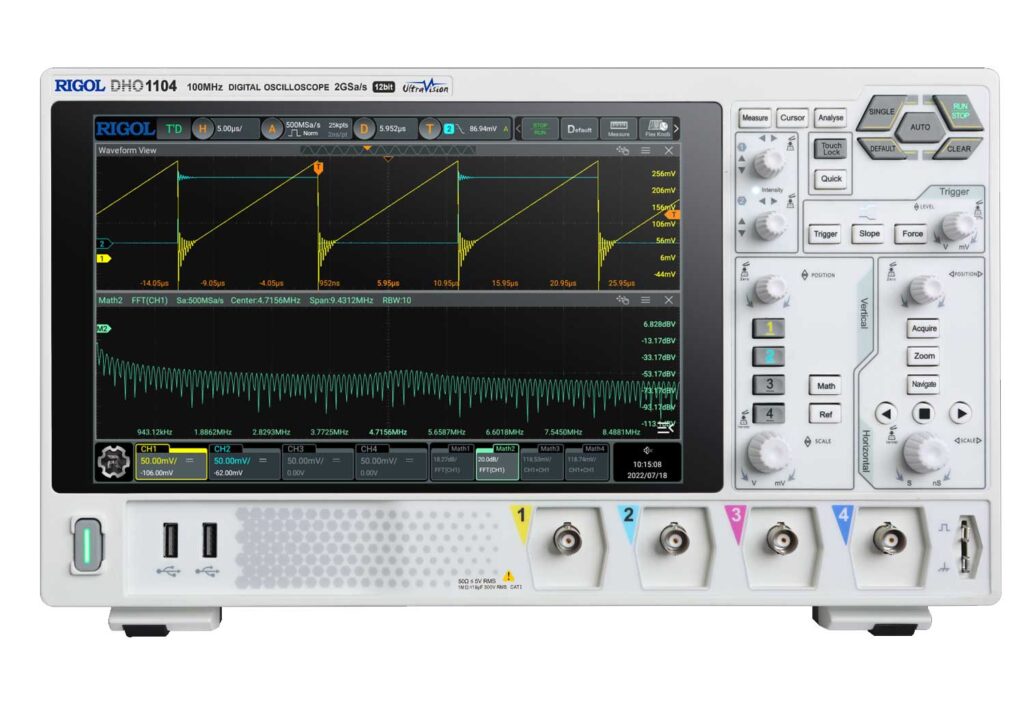

RIGOL DHO1000 Series Digital Oscilloscopes: 12-Bit, 70/100/200MHz Bandwidth, High-Resolution Precision

The RIGOL DHO1000 series digital oscilloscopes are engineered to meet the critical demands of design, debugging, and testing in the mainstream oscilloscope market. Powered by the advanced “Centaurus” chipset developed by RIGOL, the DHO1000 series offers exceptional performance with a waveform capture rate of up to 1,500,000 waveforms per second (wfms/s) in UltraAcquire mode. With up to 100 Mpts memory depth, a 12-bit vertical resolution, and ultra-low noise floor, this series ensures precise and reliable measurements for a wide range of applications.

Key Specifications:

• Bandwidth Options: 70MHz, 100MHz, or 200MHz, catering to various signal analysis needs.
• Channels: Available with 2 or 4 channels, providing flexibility for different testing scenarios.
• Max Sample Rate: Achieves up to 2GSa/s real-time sample rate, ensuring accurate signal capture.
• Vertical Resolution: High 12-bit resolution (4096 levels of detail) for precise signal analysis.

Key Features:

• Centaurus Chipset: Leveraging RIGOL’s cutting-edge technology for superior performance and accuracy.
• Ultra-Low Noise Floor: Achieve cleaner signals with a noise floor as low as 18 μVrms, allowing for precise measurement of small signals.
• High Sensitivity: Capture minute signals with a high sensitivity of 500 µV vertical scale, ideal for analyzing microvolt (µV) range signals.
• Wide Vertic
• al Sensitivity Range: Capable of handling signals from 500 µV/div to 10 V/div, making it versatile for both small and large signal measurements.
• User-Friendly Interface: Front-panel Flex Knobs ensure smoother interaction, while the 10.1” 1280×800 HD touch display enhances usability with clear and intuitive operation.
• Portability & Flexibility: An optional battery pack allows for highly portable use, providing the freedom to conduct tests in various environments.
• Comprehensive Connectivity: Includes standard USB Device & Host, LAN, and HDMI interfaces for versatile connectivity.
• Upgradeable Firmware: Stay updated with support for online version upgrades, ensuring your oscilloscope remains current with the latest features.

The RIGOL DHO10

00 series is the perfect choice for professionals seeking high-resolution, accurate, and reliable signal measurements. Whether working with small or large signals, this series provides the tools needed for precise and efficient testing and development.
