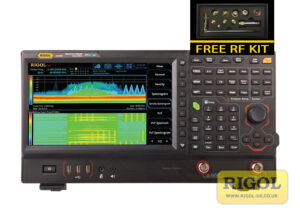

Rigol RSA5000 Series Real-Time Spectrum Analysers
Frequency Range: 9kHz to 3.2GHz, 6.5GHz | Minimum Resolution Bandwidth: 1Hz | Phase Noise: <-108dBc/Hz
- Built-in Vector Network Analysis mode
- Discover Transient Anomalies Through Ultra Real Technology
- Discover Problems in Design with Vector Analysis
- Conduction/radiation Pre-testing with Built-in Emi Test Software
- Signal Triggering and Monitoring Via FMT Template
- Excellent Phase Noise Metric
- Multiple interfaces to improve the connectivity of the instruments
- Quickly Complete Operations with a Multi-touch Screen
- 7 Real-time Display Modes
Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference. Real-Time Spectrum Analysers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA5000 combines industry leading real-time performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyse these complex events.
| Model | Frequency Range | Real-Time Bandwidth | Minimum Resolution Bandwidth (RBW) | Maximum CW RF Power | SSB Phase Noise (@10kHz offset) | DANL, Preamplifier Off (typ. 20MHz – 1.5GHz) | DANL, Preamplifier ON (typ. 20MHz – 1.5GHz) | Advanced Measurement Functions | Price |
|---|---|---|---|---|---|---|---|---|---|
| RSA5032 | 9kHz – 3.2GHz | 25MHz (standard) 40MHz (optional) | 1Hz | 30dBm (1W) | <-108dBc/Hz typ. | <-145dBm/Hz | <-165dBm/Hz | Optional | £5,401.00 |
| RSA5032-TG | 9kHz – 3.2GHz | 25MHz (standard) 40MHz (optional) | 1Hz | 30dBm (1W) | <-108dBc/Hz typ. | <-145dBm/Hz | <-165dBm/Hz | Optional | £6,302.00 |
| RSA5065 | 9kHz – 6.5GHz | 25MHz (standard) 40MHz (optional) | 1Hz | 30dBm (1W) | <-108dBc/Hz typ. | <-145dBm/Hz | <-165dBm/Hz | Optional | £6,932.00 |
| RSA5065-TG | 9kHz – 6.5GHz | 25MHz (standard) 40MHz (optional) | 1Hz | 30dBm (1W) | <-108dBc/Hz typ. | <-145dBm/Hz | <-165dBm/Hz | Optional | £7,833.00 |
