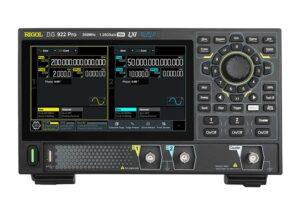

Rigol DG900 Pro Series Waveform Generators

RIGOL DG900 Pro Series Function/Arbitrary Waveform Generator: High-Resolution, Multi-Function Signal Generator

The RIGOL DG900 Pro Series function/arbitrary waveform generator is a versatile and high-performance instrument designed to meet the diverse needs of modern testing environments. With options for a maximum output frequency of 70MHz, 150MHz, or 200MHz, this generator offers exceptional precision and flexibility. Its 1.25 GSa/s sample rate, 16-bit vertical resolution, and extensive waveform length capabilities ensure detailed and accurate signal generation, making it an ideal choice for a wide range of applications.

Key Specifications:

• Max Output Frequency: Available in 70MHz, 150MHz, and 200MHz, suitable for various testing scenarios.
• Sample Rate: Achieves a high sample rate of 1.25 GSa/s for precise signal reproduction.
• Arbitrary Waveform Length: Standard 16 Mpts/CH, with an optional upgrade to 32 Mpts/CH, allowing for complex waveform generation.
• Vertical Resolution: 16-bit vertical resolution for highly detailed waveform accuracy.

Key Features:

• Multi-Functionality: The DG900 Pro Series combines multiple functions into one compact instrument, including a function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, and frequency counter.
• Harmonic Generation: Built-in high-order harmonic generator capable of generating up to the 20th harmonic, essential for advanced signal analysis.
• Frequency Measurement: Includes an independent signal frequency measurement channel with a maximum frequency of 1 GHz, providing precise frequency analysis.
• Remote Connectivity: Equipped with USB and LAN interfaces, allowing for convenient remote connection and control.
• Field Testing Ready: Features a Type-C power interface that enables the instrument to be powered by a mobile power source, ideal for testing in the field.
• Web Control Functionality: The standard Web Control feature offers easy remote operation, making collaboration and control simple from any location.

The RIGOL DG900 Pro Series is designed for professionals who require a high-resolution, versatile signal generator that delivers precision and flexibility. Whether you need detailed waveform generation or comprehensive frequency analysis, this instrument provides the advanced features and performance needed to meet your testing and development goals.
