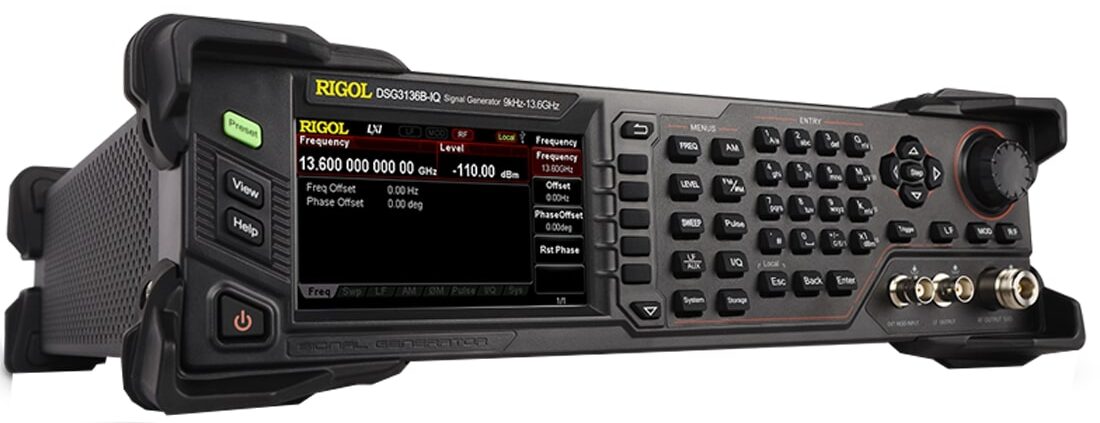

Rigol DSG3000B RF Signal Generators
Frequency Range: 9kHz to 6.5/13.6GHz| Phase Noise: <-116dBc/Hz | Amplitude Accuracy: <0.5dB
- High Power Output up to +25 dBm
- Advanced Modulations
- IQ Modulation
- High Accuracy timebase option
- Connectivity: USB/LAN/GPIB remote control; SCPI command set
The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analogue modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in “IQ”. The DSG3065B has a maximum frequency of 6.5 GHz and the DSG3136B outputs all the way to 13.6 GHz. Featuring a high signal purity with phase noise measuring <-116dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000B RF signal generator has optional pulse modulation and pulse train generation with the DSG3000B-PUG option.
| Model | Maximum Frequency | Amplitude Range | Amplitude Accuracy | Phase Noise | IQ Modulation | Connectivity | Price |
|---|---|---|---|---|---|---|---|
| DSG3065B | 9kHz – 6.5GHz | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | No | USB/LAN/GPIB remote control; SCPI command set | £6,576.00 |
| DSG3065B-IQ | 9kHz – 6.5GHz (IQ: 50MHz to 6.5GHz) | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | Yes | USB/LAN/GPIB remote control; SCPI command set | £9,549.00 |
| DSG3136B | 9kHz – 13.6GHz | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | No | USB/LAN/GPIB remote control; SCPI command set | £10,630.00 |
| DSG3136B-IQ | 9kHz – 13.6GHz (IQ: 50MHz to 6.5GHz) | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | Yes | USB/LAN/GPIB remote control; SCPI command set | £14,774.00 |
| Model | Maximum Frequency | Amplitude Range | Amplitude Accuracy | Phase Noise | IQ Modulation | Connectivity | Price |
|---|---|---|---|---|---|---|---|
| DSG3065B | 9kHz – 6.5GHz | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | No | USB/LAN/GPIB remote control; SCPI command set | £6,576.00 |
| DSG3065B-IQ | 9kHz – 6.5GHz (IQ: 50MHz to 6.5GHz) | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | Yes | USB/LAN/GPIB remote control; SCPI command set | £9,549.00 |
| DSG3136B | 9kHz – 13.6GHz | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | No | USB/LAN/GPIB remote control; SCPI command set | £10,630.00 |
| DSG3136B-IQ | 9kHz – 13.6GHz (IQ: 50MHz to 6.5GHz) | -130dBm to +27dBm | <0.5dB (typical) | <-116 dBc/Hz@20 kHz (typical) | Yes | USB/LAN/GPIB remote control; SCPI command set | £14,774.00 |
