DG800 Pro Series Waveform Generators

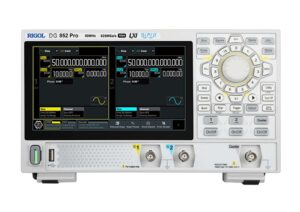

RIGOL DG800 Pro Series Function/Arbitrary Waveform Generator: High-Performance, Versatile Signal Generation

The RIGOL DG800 Pro Series function/arbitrary waveform generator is a multifunctional instrument designed to meet a wide range of testing and signal generation needs. Despite its compact size, this powerful device offers impressive performance with a maximum output frequency of 25MHz or 50MHz, a high sample rate of 625MSa/s, and a 16-bit vertical resolution, ensuring precise and reliable signal generation.

Key Specifications:

• Max Output Frequency: Choose between 25MHz and 50MHz, tailored to your specific application requirements.
• Sample Rate: Achieve a high sample rate of 625MSa/s for accurate signal reproduction.
• Arbitrary Waveform Length: Features a standard 2 Mpts/CH waveform length, with an optional upgrade to 8 Mpts/CH.

Key Features:

• High-Resolution Signal Generation: 16-bit vertical resolution ensures precise and detailed waveform creation.
• Harmonic Generator: Built-in high-order harmonic generator capable of generating up to the 20th harmonic for advanced testing scenarios.
• Frequency Measurement: Includes an independent signal frequency measurement channel with a maximum frequency of 500MHz for accurate frequency analysis.
• Versatile Connectivity: Equipped with USB and LAN interfaces for easy remote connection, along with a Type-C power interface that allows the instrument to be powered by a mobile power source, perfect for field testing.
• Web Control Function: Standard Web Control feature enables easier remote operation and collaboration, making it ideal for diverse testing environments.

The DG800 Pro Series function/arbitrary waveform generator is more than just a basic signal generator. It combines the capabilities of a function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, and frequency counter into one compact and efficient instrument. With a 3 ns rise time, 16-bit vertical resolution, and up to 8 Mpts/CH waveform length, it delivers the performance you need for even the most demanding signal generation tasks.
