Tekbox TBMA2 Biconical Antenna 30MHz to 300MHz
Tekbox TBMA2 Biconical Antenna 30MHz to 300MHz
Tekbox TBMA2 Biconical Antenna 30MHz to 300MHz

Tekbox TBMA2 Biconical Antenna 30MHz to 300MHz

£937.42 (£1124.90 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: TBMA2 Categories: , , , , , ,

Description


Tekbox TBMA2 Antenna

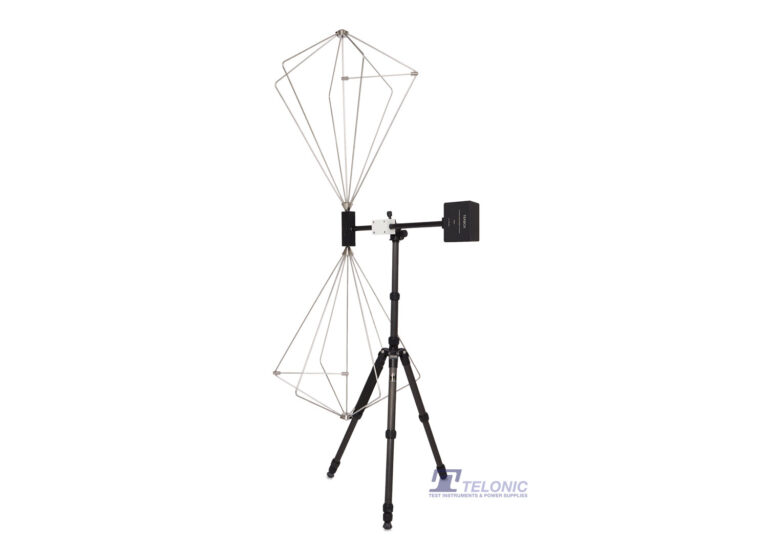

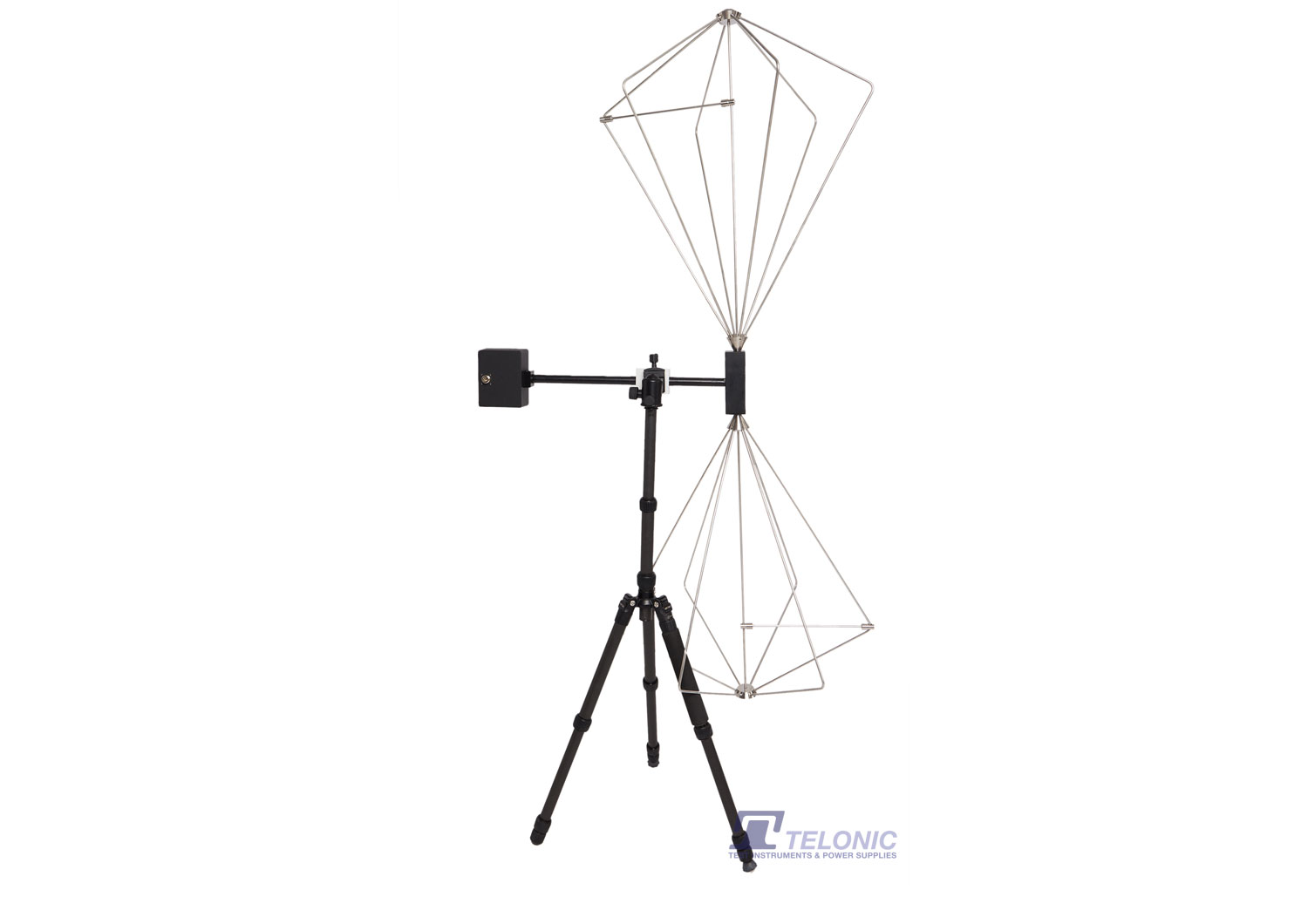

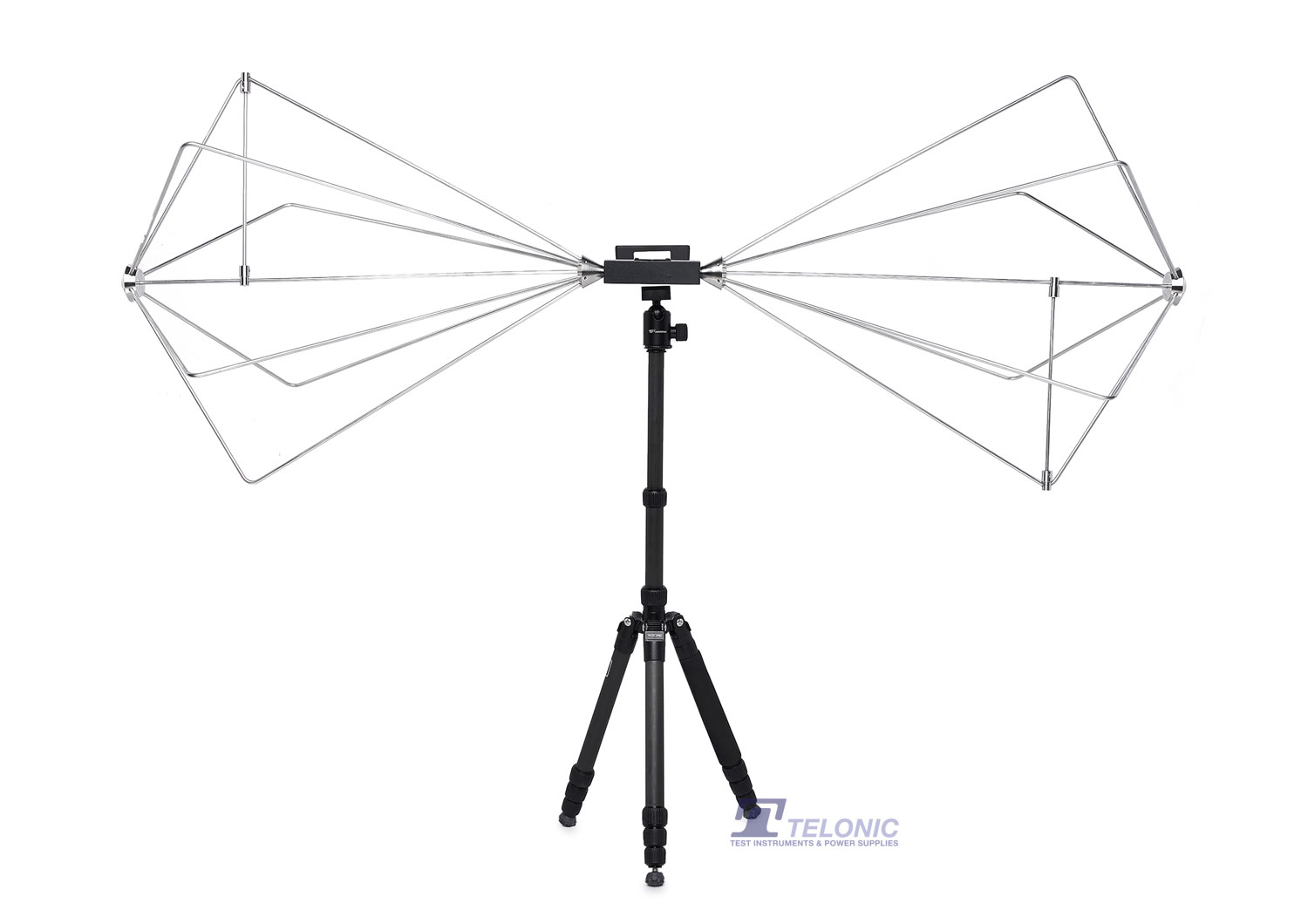

The Tekbox TBMA2 is a (30MHz to 300MHz) biconical antenna for EMC radiated emission testing and generating defined field strength. With its affordable price it is an excellent choice for any lab carrying out in house pre-compliance testing.

Its Frequency Ranges from 30MHz to 300MHz and has a directional pattern similar to a dipole antenna.

The TBMA2 comes with a POM bracket with a ¼ ” thread insert for mounting the antenna on standard tripods.

The TBMA2 radiating elements are made of stainless steel parts to avoid the disadvantages of contact degeneration over time, which are associated with non-welded designs using aluminium. The radiating elements are not welded but fastened with grub screws, which makes assembly / disassembly simple and makes the antenna easily storable and transportable.

The antenna elements are fed via a 1:4 balun with 100 W power handling capability.

Features:

  • Type: passive biconical
  • Frequency range: 30 MHz– 300 MHz
  • Nominal impedance: 50 Ω
  • Balun: 1:4
  • Maximum continuous input RF power: 100 W
  • Connector: N type female

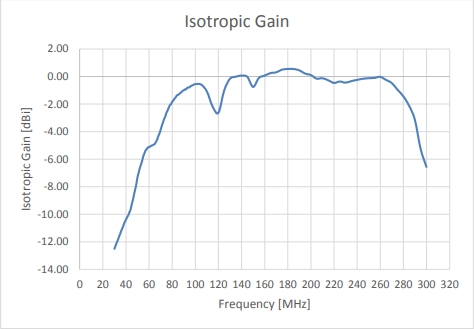

  • Isotropic Gain: -12.51 to 0.55, see Figure 2 and Table 1

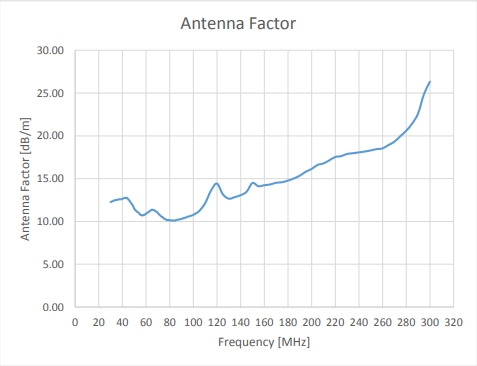

  • Antenna Factor: 10.8 to 26.3, see Figure 3 and Table 1

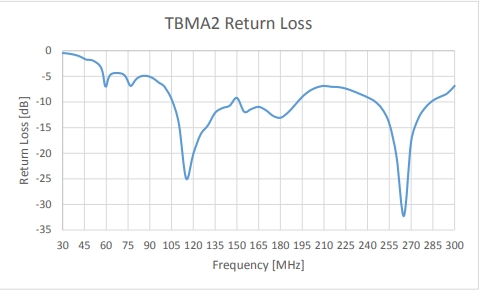

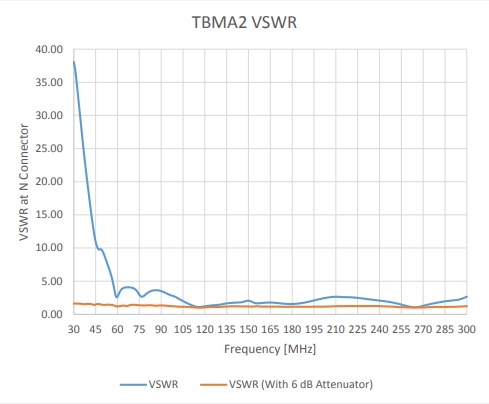

  • Voltage Standing Wave Ratio (VSWR): 1.05 to 38.05, see Figure 4 and Figure 5
  • Test standards: FCC, CISPR, SAE, RTCA-DO-160, Mil STD-461, etc.
  • Length: 138.7 cm (54.6 “) tip
  • Diameter: 54.2 cm (21.3 “)
  • Depth: 80.3 cm (31.6 “) including balun
  • Weight of one radiating element: 1.28 kg (2.82 lbs)
  • Weight of holder/balun: 0.96 kg (2.12 lbs)

Product Images

Documentation

User Manual

Tekbox TBMA2 User Manual



Specifications
Typepassive biconical
Frequency range30 MHz– 300 MHz
Nominal impedance50 Ω
Balun1:4
Maximum continuous input RF power100 W
ConnectorN type female
Isotropic Gain-12.51 to 0.55
Antenna Factor10.8 to 26.3
Voltage Standing Wave Ratio (VSWR)1.05 to 38.05
Test standardsFCC, CISPR, SAE, RTCA-DO-160, Mil-STD-461
Length138.7 cm (54.6 “) tip-to-tip
Diameter54.2 cm (21.3 “)
Depth80.3 cm (31.6 “) including balun
Weight of one radiating element1.28 kg (2.82 lbs)
Weight of holder/balun0.96 kg (2.12 lbs)



Frequency (MHz)Wavelength (M)Gain (Isotropic) (dBi)Gain (Dipole) (dBd)Antenna Factor (dB/m)
30.0010.00-12.51-14.7012.27
31.009.7-12.28-14.4012.32
32.009.4-12.06-14.2012.38
33.009.1-11.87-14.0012.46
34.008.8-11.62-13.8012.47
35.008.6-11.42-13.6012.52
36.008.3-11.18-13.3012.53
37.008.1-11.00-13.2012.58
38.007.9-10.76-12.9012.58
39.007.7-10.55-12.7012.59
40.007.5-10.39-12.5012.65
41.007.3-10.21-12.4012.69
42.007.1-10.07-12.2012.76
43.007.0-9.85-12.0012.74
44.006.8-9.66-11.8012.75
45.006.7-9.28-11.4012.57
46.006.5-8.96-11.1012.44
47.006.4-8.56-10.7012.22
48.006.2-8.18-10.3012.02
49.006.1-7.80-10.0011.83
50.006.0-7.30-9.5011.50
51.005.9-6.97-9.1011.34
52.005.8-6.64-8.8011.18
53.005.7-6.39-8.5011.09
54.005.6-6.12-8.3010.99
55.005.5-5.78-7.9010.80
56.005.4-5.57-7.7010.75
57.005.3-5.36-7.5010.69
58.005.2-5.27-7.4010.76
59.005.1-5.14-7.3010.78
60.005.0-5.13-7.3010.92
61.004.9-5.07-7.2010.99
62.004.8-5.02-7.2011.08
63.004.8-4.99-7.1011.20
64.004.7-4.94-7.1011.28
65.004.6-4.89-7.0011.37
66.004.5-4.73-6.9011.34
67.004.5-4.57-6.7011.31
68.004.4-4.32-6.5011.19
69.004.3-4.13-6.3011.13
70.004.3-3.87-3.0010.99
71.004.2-3.58-5.7010.83
72.004.2-3.34-5.5010.70
73.004.1-3.09-5.2010.57
74.004.1-2.90-5.1010.51
75.004.0-2.63-4.8010.35
76.003.9-2.47-4.6010.30
77.003.9-2.26-4.4010.21
78.003.8-2.08-4.2010.14
79.003.8-2.00-4.2010.18
80.003.7-1.83-4.0010.11
81.00 3.7-1.74-3.9010.14
82.00 3.7-1.60-3.8010.10
83.003.6-1.51-3.7010.12
84.003.6-1.37-3.5010.08
85.003.5-1.33-3.5010.14
86.003.5-1.27-3.4010.18
87.003.4-1.19-3.3010.20
88.003.4-1.13-3.3010.24
89.003.4-1.04-3.2010.25
90.003.3-1.00-3.2010.30
91.003.3-0.93-3.1010.33
92.003.3-0.93-3.1010.42
93.003.2-0.82-3.0010.41
94.003.2-0.79-2.9010.47
95.003.2-0.78-2.9010.55
96.003.1-0.69-2.8010.56
97.003.1-0.66-2.8010.62
98.003.1-0.61-2.8010.66
99.003.0-0.58-2.7010.71
100.003.0-0.55-2.7010.77
105.002.9-0.58-2.7011.22
110.002.7-1.08-3.2012.13
115.002.6-2.18-4.3013.61
120.002.5-2.63-4.8014.43
125.002.4-1.01-3.2013.17
130.002.3-0.16-2.3012.66
135.002.2-0.01-2.2012.84
140.002.10.07-2.1013.07
145.002.1-0.02-2.2013.46
150.002.0-0.75-2.9014.49
155.001.9-0.10-2.3014.12
160.001.90.07-2.1014.23
165.001.80.25-1.9014.32
170.001.80.31-1.8014.52
175.001.70.50-1.7014.58
180.001.70.55-1.6014.77
185.001.60.55-1.6015.02
190.001.60.45-1.7015.35
195.001.50.22-1.9015.80
200.001.50.11-2.0016.13
205.001.5-0.15-2.3016.60
210.001.4-0.12-2.3016.78
215.001.4-0.27-2.4017.14
220.001.4-0.46-2.6017.53
225.001.3-0.36-2.5017.63
230.001.3-0.44-2.6017.89
235.001.3-0.33-2.5017.97
240.001.2-0.24-2.4018.07
245.001.2-0.16-2.3018.17
250.001.2-0.12-2.3018.30
255.001.2-0.10-2.3018.45
260.001.2-0.02-2.2018.54
265.001.1-0.24-2.4018.93
270.001.1-0.47-2.6019.32
275.001.1-0.96-3.1019.96
280.001.1-1.43-3.6020.60
285.001.1-2.12-4.3021.44
290.001.0-3.14-5.3022.61
295.001.0-5.26-7.4024.87
300.001.0-6.56-8.7026.32
