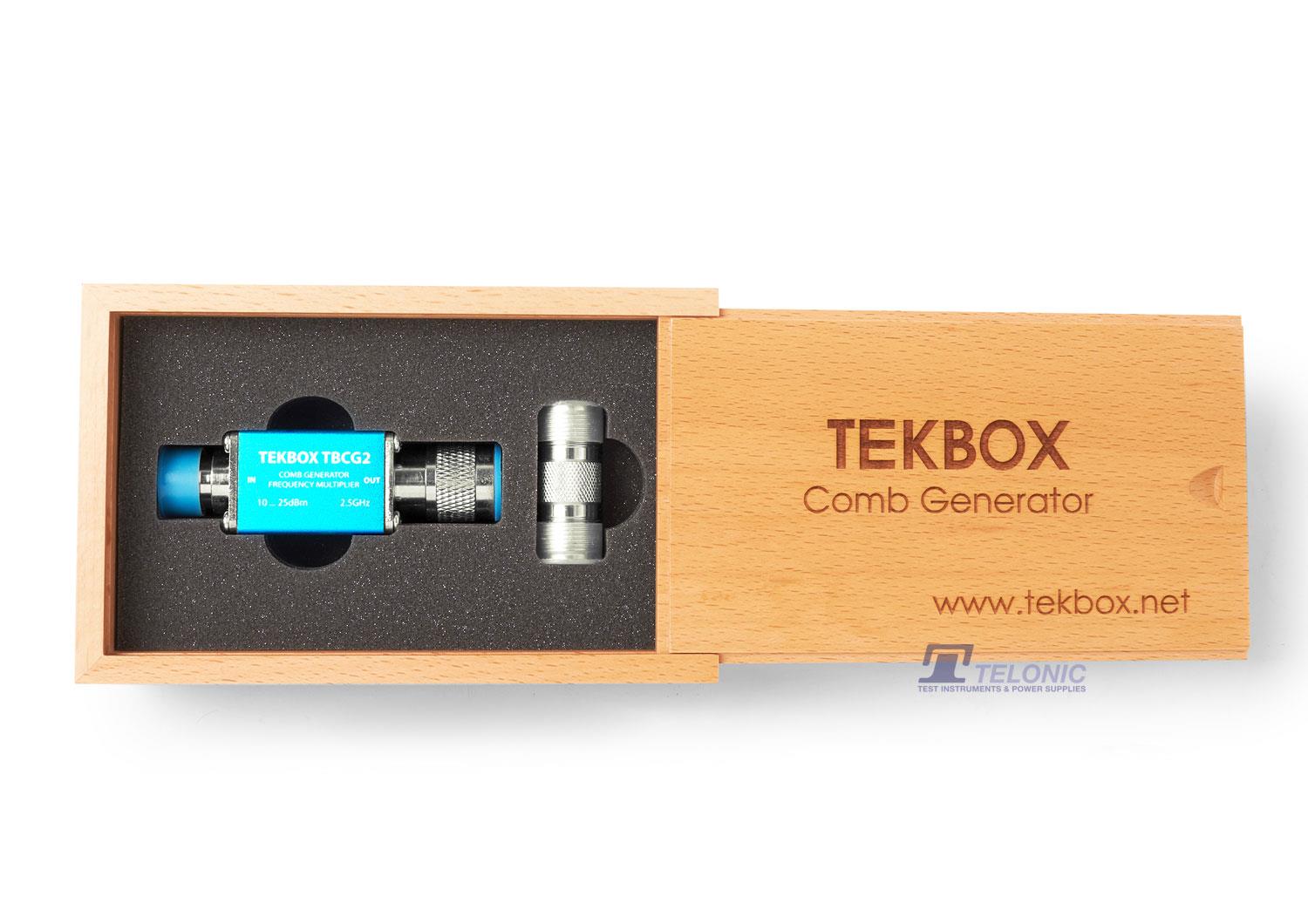

TEKBOX TBCG2 COMB GENERATOR/FREQUENCY MULTIPLIER

Description

The TBCG2 is a passive, step recovery diode based comb generator/frequency multiplier. It is optimised for moderate drive power and spectrum flatness in the frequency range 1MHz to 2.5GHz.

The recommended drive power is +10dBm to +20dBm.

The frequency range for the drive signal is 1MHz to 350MHz.

Features:

• Input Power : +10dBm to +20dBm; 25dBm max

• Input Frequency : 1MHz to 350MHz

• Comb Spectrum : 1MHz to 2.5HGz

• Input Connector : N Female

• Output Connector : N Male

• Dimensions : 81mm x 26mm x 26mm

• Weight : 96g
