Description
Tekbox DC-LISN Combo
The DC-LISN-Combo1 set is perfect for testing conducted noise emissions from DC powered devices, such as DC power supplies.
The included LISN-Mate is for splitting the conducted interface signal into its common mode and differential components. If you choose not to use the LISN-Mate, the RF output of the respectively unused LISN must be terminated with 50Ω.
Features:

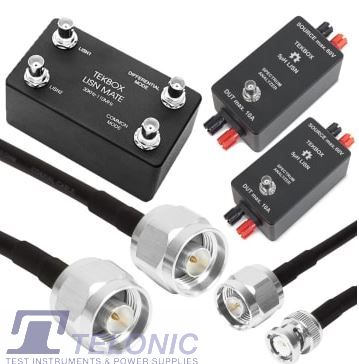

- This combo consists of:
- 2 x 5 μH DC-LISN up to 10A (TBOH01)
- 1 x LISN-Mate (TBLM1)
- 2 x Coaxial Cable (RG-223), BNC Male to BNC Male, 35cm
- 1 x Coaxial Cable (RG-58), BNC Male to N Male, 75cm
- 1 x 50Ω BNC terminating resistor, 2W
Robert V –
This kit comprises 2 x TBOH01 5 uH LISNs, a TBLM01 LISN Mate (combines two LISN outputs into common-mode and differential signals), 50 ohm termination and coax leads. All nicely built and documented (on-line). Far better option than trying to build your own LISNs. Excellent service from Telonics.
