£173.00 (£207.60 inc VAT)
3 in stock (can be backordered)
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

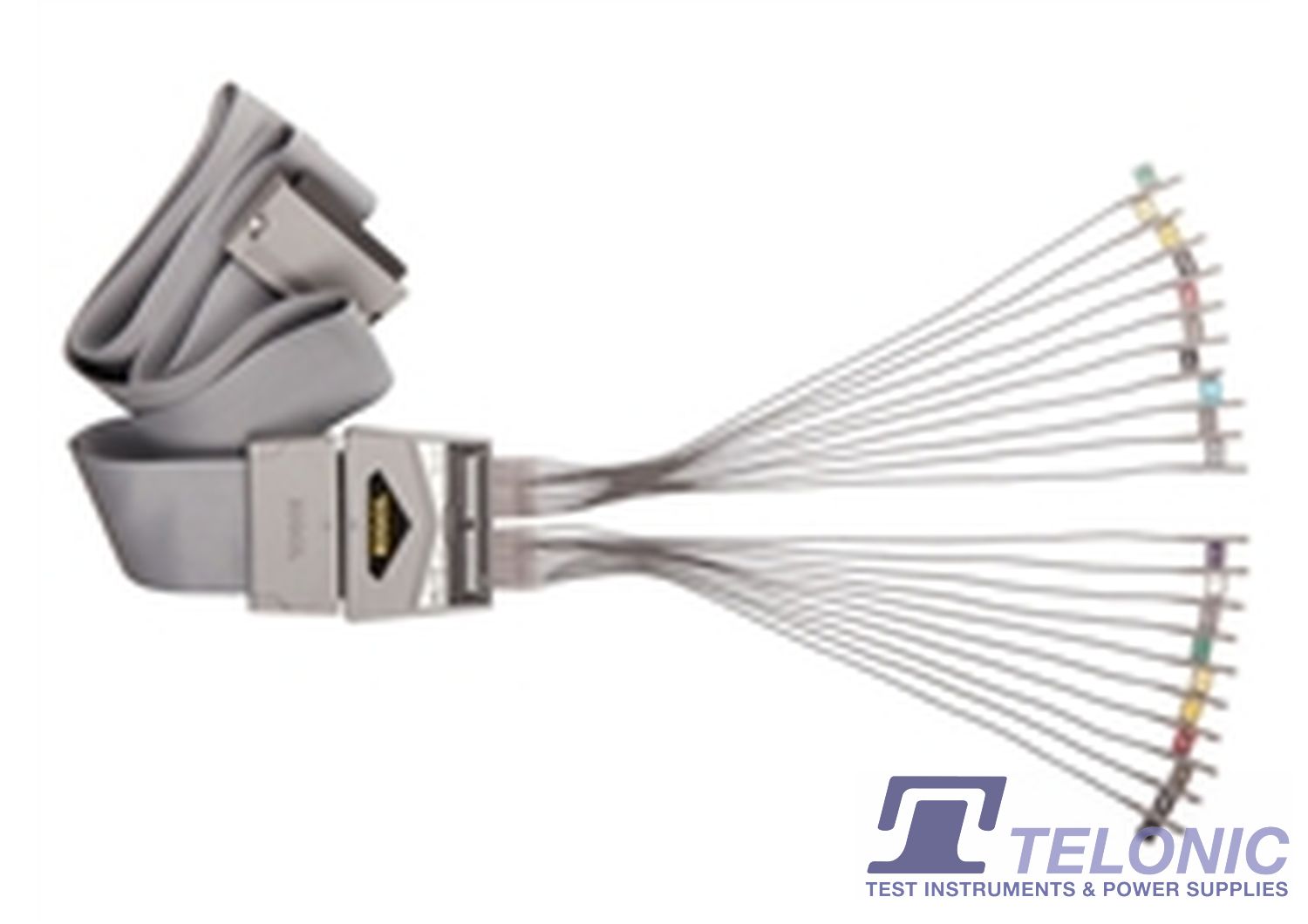

Logic analyser probe set compatible with Rigol DS1000Z Plus series digital oscilloscopes and Rigol MSO1000Z series mixed signal oscilloscopes. The set consists of; 1-off parallel data cable, 1-off active logic head, 32-off data leads, 32-off grabbers and 1-off packing box. Please refer to the User Guide under the ‘DOCUMENTS, SOFTWARE & VIDEOS’ tab for further information.
| RPL1116 Specifications | |
|---|---|
| Model | RPL1116 |
| Input channels | 16 |
| Threshold range | ±15 V |
| Threshold accuracy | ±100m V+3% of threshold setting |
| Max input voltage | ±40 V |
| Max input dynamic range | ±10 V + threshold setting |
| Min voltage swing | 500 mV |
| Min detectable pulse width | 10ns |
| Input impedance | 100 kΩ±2% |
| Input capacitance | About 8 pF |
| Cable length | About 90 cm |
| Lead length | About 25 cm |
| Operation environment | 0℃~50℃, 0~80%RH |
| Storage environment | -20℃~60℃, 0~90%RH |
Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
