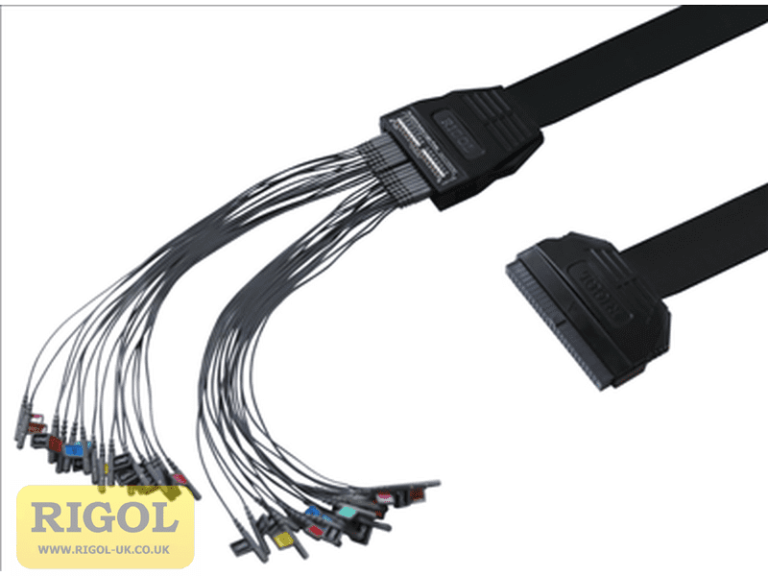

Rigol PLA2216 High-performance Active Logic Probe

Rigol PLA2216 High-performance Active Logic Probe

(1 customer review)

£260.00 (£312.00 inc VAT)

SKU: PLA2216 Categories: , ,

Description


Rigol PLA2216, High-performance active logic probe. BW: DC – 800MHz, 40V Peak, CAT I. Compatible with Rigol MSO5000 series oscilloscopes.

PLA2216 Specifications
ModelPLA2216
Input channels16
Threshold range±15 V
Threshold accuracy± (100 mV + 3% of threshold setting)
Max input voltage±40 V (peak)
Max input dynamic range±10 V + threshold setting
Min voltage swing500 mVpp
Min detectable pulse width5 ns
Input impedanceAbout 101 kΩ
Input capacitanceAbout 8 pF
Cable lengthAbout 90 cm
Lead lengthAbout 25 cm
Operation environment0℃~50℃, 0~80%RH
Storage environment-20℃~60℃, 0~90%RH

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

1 review for Rigol PLA2216 High-performance Active Logic Probe

  1. Norman Kearey (verified owner) –

    The Rigol PLA2216 High-performance Active Logic Probe provides a neat method for capturing multiple digital signals. This product was purchased along with a Rigol DHO924S oscilloscope for educational purposes. For more detail, see my review of that product.
    Norman, G8EYM.
    ———————––
