£2433.00 (£2919.60 inc VAT)

SKU: MSO7014 Category:

Description

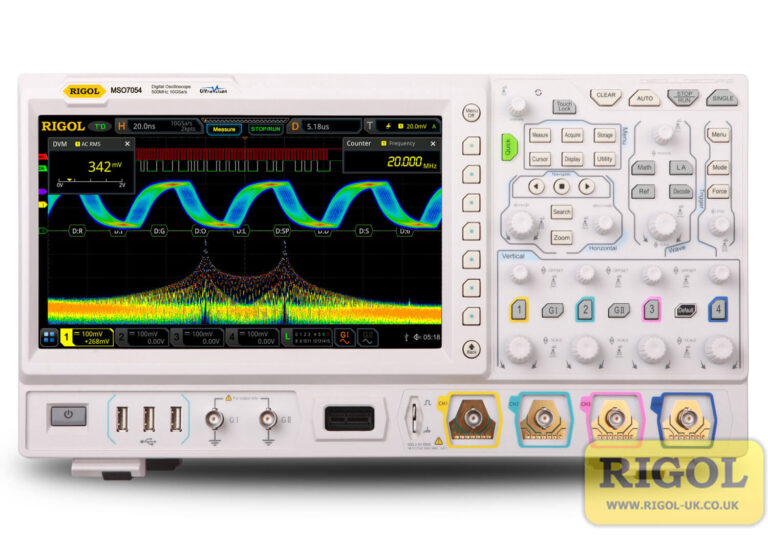

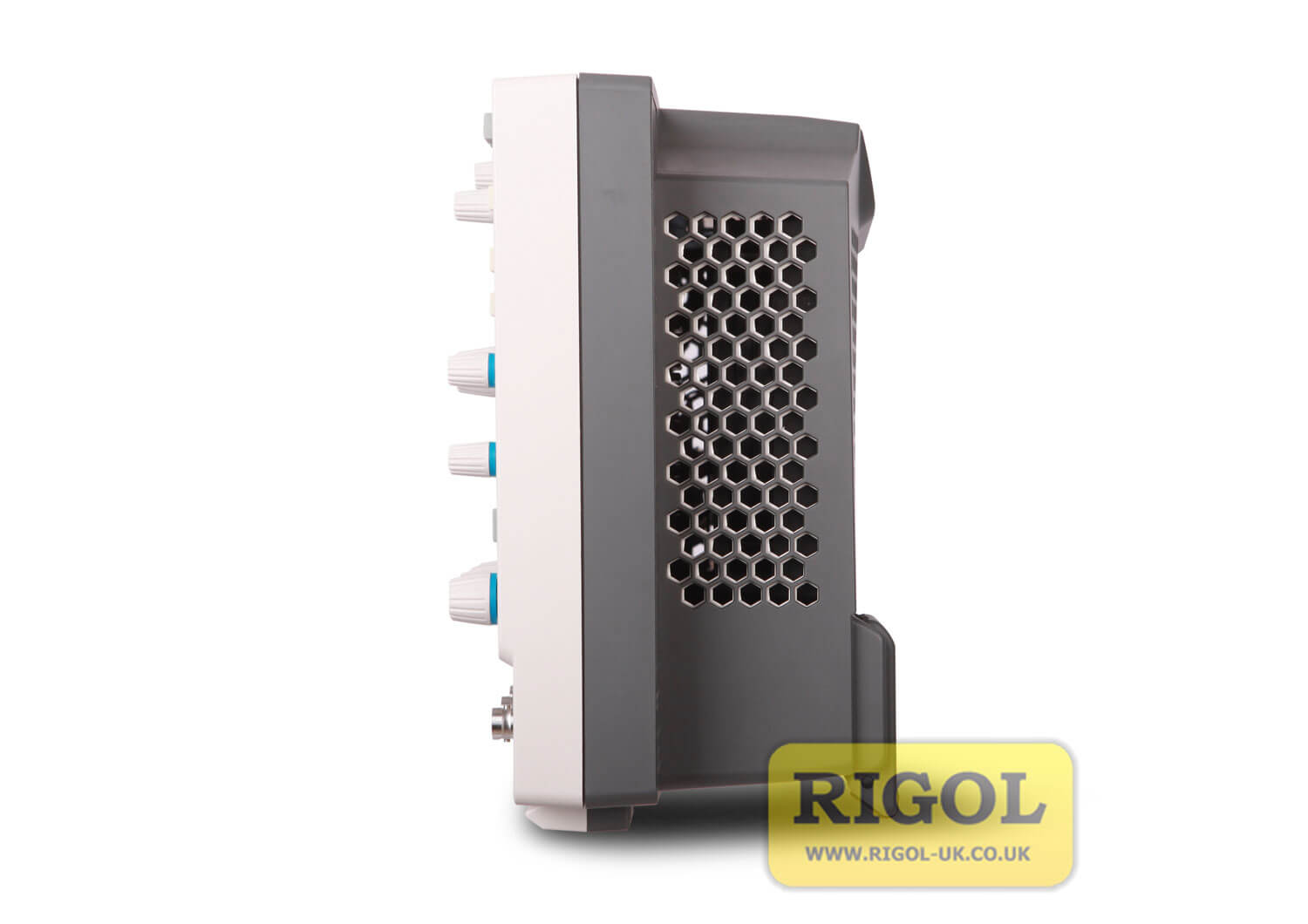

Rigol MSO7014 Digital Oscilloscope

The MSO7014 is a 100MHz, 4CH multifunctional, high-performance, Digital Oscilloscope based upon Rigol’s new UltraVision II technology. Integrating up to 6-off independent instruments into one, the MSO/DS7000 series offers a high sample rate / bandwidth ratio, high memory depth, clear touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production, quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.

Features:

  • 100MHz bandwidth (bandwidth upgrade options available)
  • 4 analogue channels, 1 EXT channel and 16 digital channels
  • Up to 10GSa/s real-time sample rate
  • Up to 500Mpts memory depth (optional)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates up to 6 independent instruments into 1: Digital oscilloscope, 16-channel logic analyser, arbitrary waveform generator (optional), digital voltmeter, 6-digit frequency counter & totalizer and protocol analyser
  • A variety of serial protocol triggers and decodes
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, built-in enhanced FFT analysis and peak search function
  • Waveform histogram analysis (standard)
  • Independent search, navigation keys and event table
  • Built-in advanced power analysis software (option)
  • User-defined one-key quick operation

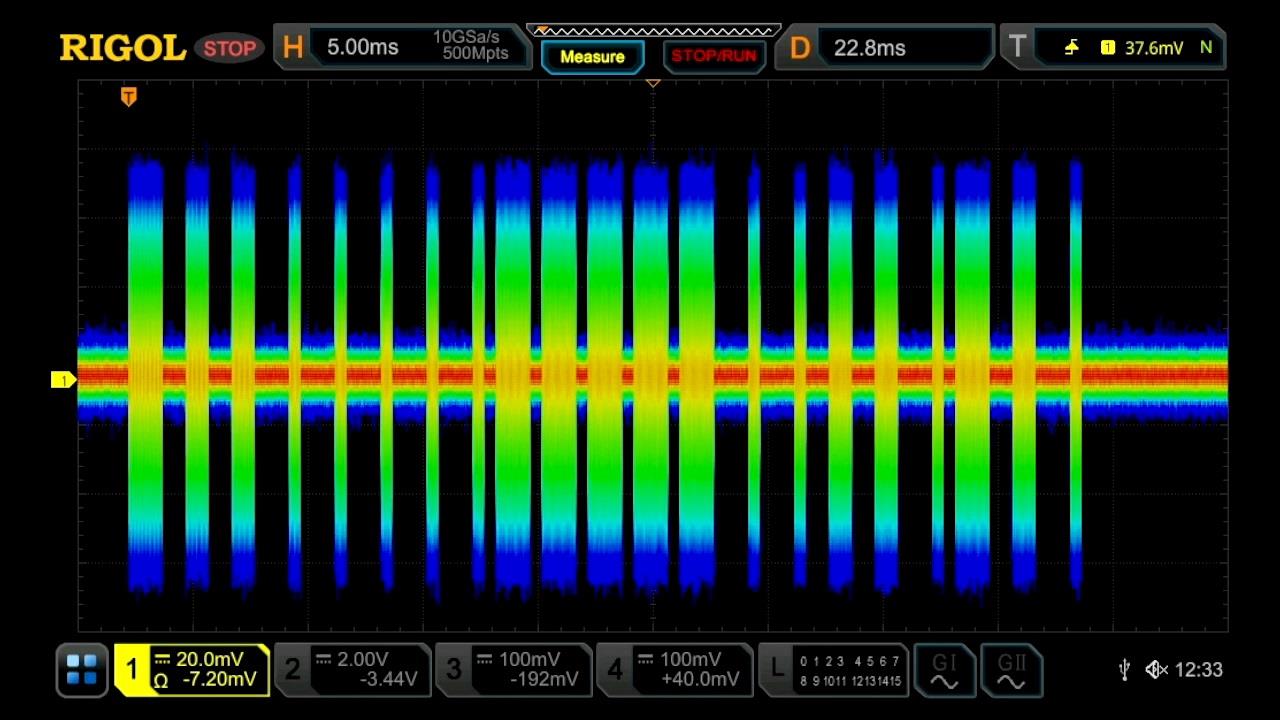

  • 10.1″ capacitive multi-touch screen, 256-level intensity grading display, with colour persistence
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate

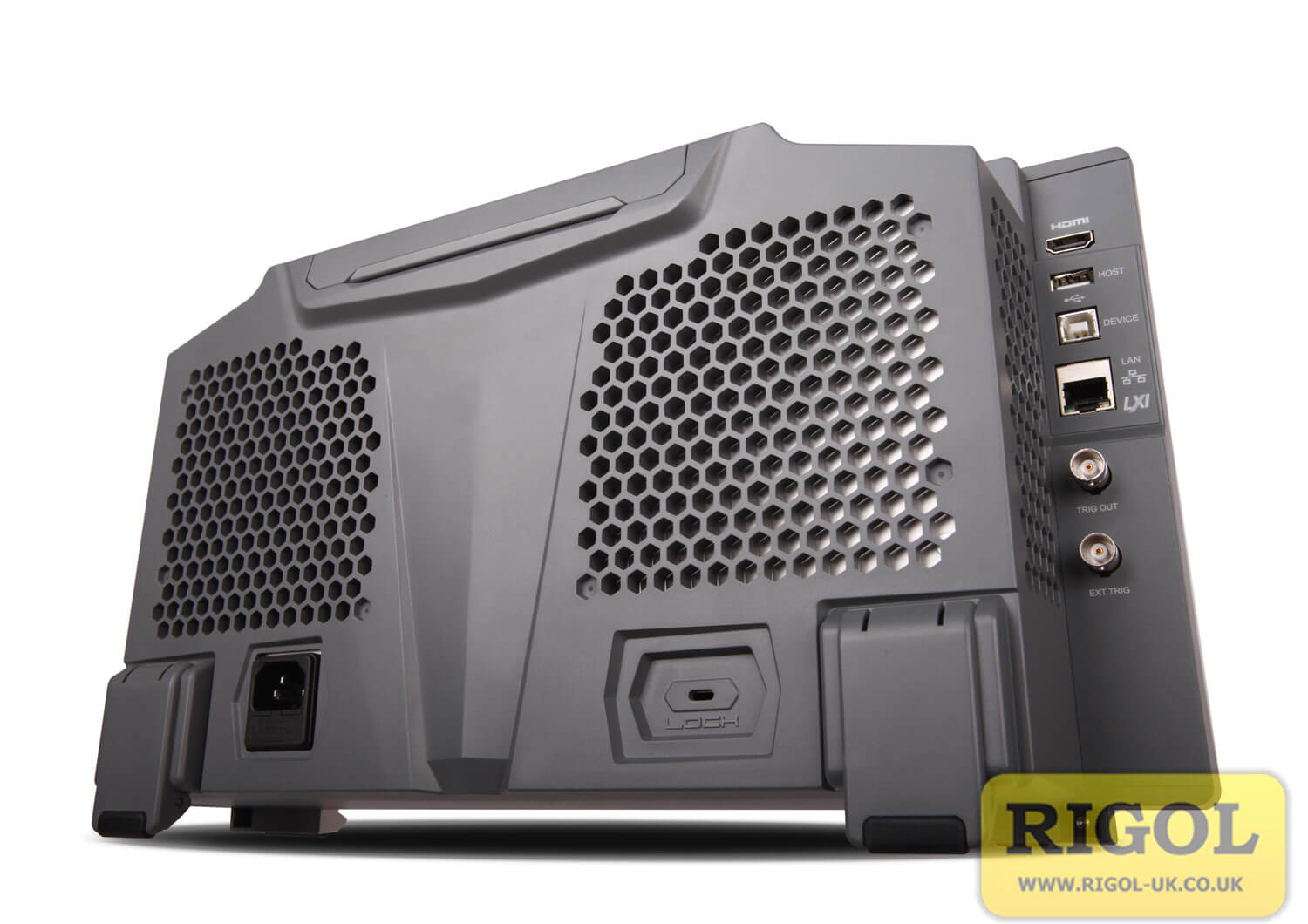

  • Connectivity: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT and USB-GPIB

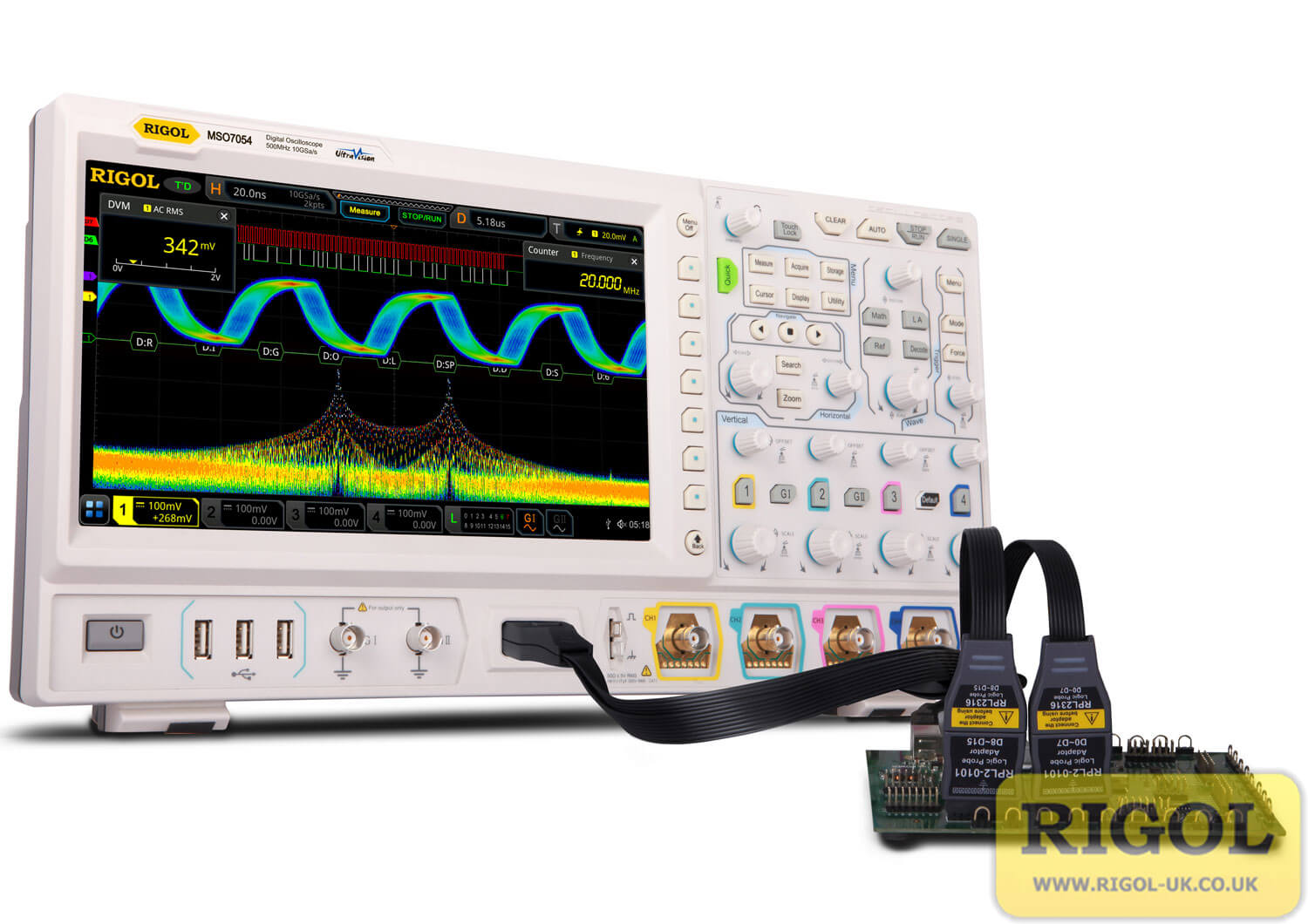

  • Supplied with… 4-off passive probes (500MHz), 1-off logic analyser probe set, USB cable, UK & European mains leads, front panel cover, quick guide
  • Options include… Bandwidth upgrades, memory upgrades, 25MHz dual-channel arbitrary waveform generator, built-in power analysis, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.
  • Optional accessories include… High-voltage probes, high-voltage differential probes, current probes, rack mount kit

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Vertical System Analogue Channel
Input CouplingDC or AC
Input Impedance1 MΩ ± 1%, 50 Ω ± 1%
Input Capacitance17 pF ± 3 pF
Probe Attenuation Coefficient0.01X, 0.02X, 0.05X, 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X, 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X, 20000X, and 50000X
Maximum Input Voltage1 MΩ CAT I 300 Vrms, 400 Vpk, Transient Overvoltage 1600 Vpk
50 Ω 5 Vrms
Vertical Resolution8 bits
Vertical Sensitivity Range1 MΩ 1 mV/div ~ 10 V/div , 50 Ω 1 mV/div ~ 1 V/div
Offset Range1 MΩ: ± 1 V ( 1 mV/div ~ 50 mV/div ) ± 30 V ( 51 mV/div ~ 260 mV/div ) ± 100 V ( 265 mV/div ~ 10 V/div )
50 Ω: ±1 V ( 1 mV/div ~ 100 mV/div ) ±4 V ( 102 mV/div ~ 1 V/div )
Dynamic Range±5 div (8 bits)
Bandwidth Limit (Typical)20 MHz, 250 MHz; selectable for each channel
DC Gain Accuracy± 2% of full scale
DC Offset Accuracy<200 mV/div (±0.1 div±2 mV±1.5% of offset value) >200 mV/div (±0.1 div±2 mV±1.0% of offset value)
Channel-to-Channel IsolationChannel-to-Channel Isolation 40dB, from DC to maximum rated bandwidth of each model
ESD Tolerance±8 kV (on input BNCs)
Vertical System Digital Channel
Number of Channels16 input channels (D0 ~ D15) (D0 ~ D7, D8 ~ D15)
Threshold Range±20.0 V, in 10 mV step
Threshold Accuracy±(100 mV + 3% of the threshold setting)
Threshold SelectionTTL(1.4 V), CMOS5.0(2.5 V), CMOS3.3(1.65 V), CMOS2.5(1.25 V), CMOS1.8(0.9 V), ECL(-1.3 V), PECL(3.7 V), LVDS(1.2 V), and 0.0V
User (adjustable threshold for 8 channels in a group)
Max. Input Voltage± 40 V peak CAT I; transient overvoltage 800 Vpk
Max. Input Dynamic Range±10 V + threshold
Minimum Voltage Swing500 mVpp
Input Impedanceabout 101 kΩ
Probe Load≈8 pF
Vertical Resolution1 bit
Horizontal System Analogue Channel
Time Base Resolution10 ps
Time Base Accuracy±2 ppm ± 2 ppm/year
Time Base Delay Rangebefore triggering ≥1/2 screen width
after triggering 1 s to 100 div
Time Interval (â–³T)
Measurement		±(1 sample interval) ± (2 ppm×readout) ± 50 ps
Inter-channel Offset Correction Range±100 ns
Horizontal ModeYT: Default
XY: X = Channel 1, Y = Channel 2
SCAN: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
ROLL: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
Horizontal System Digital Channel
Min. Detectable Pulse Width3.2 ns
Maximum Input Frequency500 MHz (accurately copied as the sine wave of the maximum frequency of the logic square wave; input amplitude is the minimum swing; the shortest the ground cable is required for the logic probe)
Inter-channel Time Delay1 ns (typical), 2 ns (maximum)
Trigger System
Trigger SourceAnalogue channel (1 ~ 4), Digital channel (D0 ~ D15), EXT TRIG, and AC Line
Trigger ModeAuto, Normal, Single
Trigger CouplingDC: DC coupling trigger
AC: AC coupling trigger
High Frequency Rejection: High frequency rejection, cut-off frequency ~ 75 kHz (internal only)
Low Frequency Rejection: Low frequency rejection, cut-off frequency ~ 75 kHz (internal only)
Noise Rejectionincrease delay for the trigger circuit (internal only), On/Off
Holdoff Range8 ns to 10 s
Trigger BandwidthInternal: analogue bandwidth of the oscilloscope
External: 200 MHz
Trigger SensitivityInternal: 1 div or 5 mVpp, whichever is larger, <10mV/div 0.5 div, ≥10mV/div
enable the noise rejection, with trigger sensitivity reducing halfExternal: 200 mVpp, DC ~ 100 MHz 500 mVpp, 100 MHz ~ 200 MHz
Trigger Level RangeInternal: ± 5 div from the center of the screen
External: ± 8 V
AC Line: AC Line fixed 50%
General Specifications
Power Voltage100 V-240 V, 45 Hz-440 Hz
PowerMax. 200 W (connect to various interfaces, USB, and active probes)
Fuse3.15 A, T degree, 250 V
Temperature RangeOperating 0℃ ~ +50℃
Non-operating -30℃ ~ +70℃
Humidity RangeOperating: below +30℃: ≤95% RH (without condensation)
+30℃ to +40℃, ≤75% RH (without condensation)
+40℃ to +50℃, ≤45% RH (without condensation)
Non-operating: below 65℃: ≤95% RH (without condensation)
AltitudeOperating: below 3,000
Non-operating: below 15,000
LCD10.1-inch capacitive multi-touch screen/gesture enabled operation
Resolution1024×600 (Screen Region)
Graticule(10 vertical divisions) x (8 horizontal divisions)
PersistenceOff, Infinite, variable persistence (100 ms to 10 s)
Brightness256 intensity levels (LCD,HDMI)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
