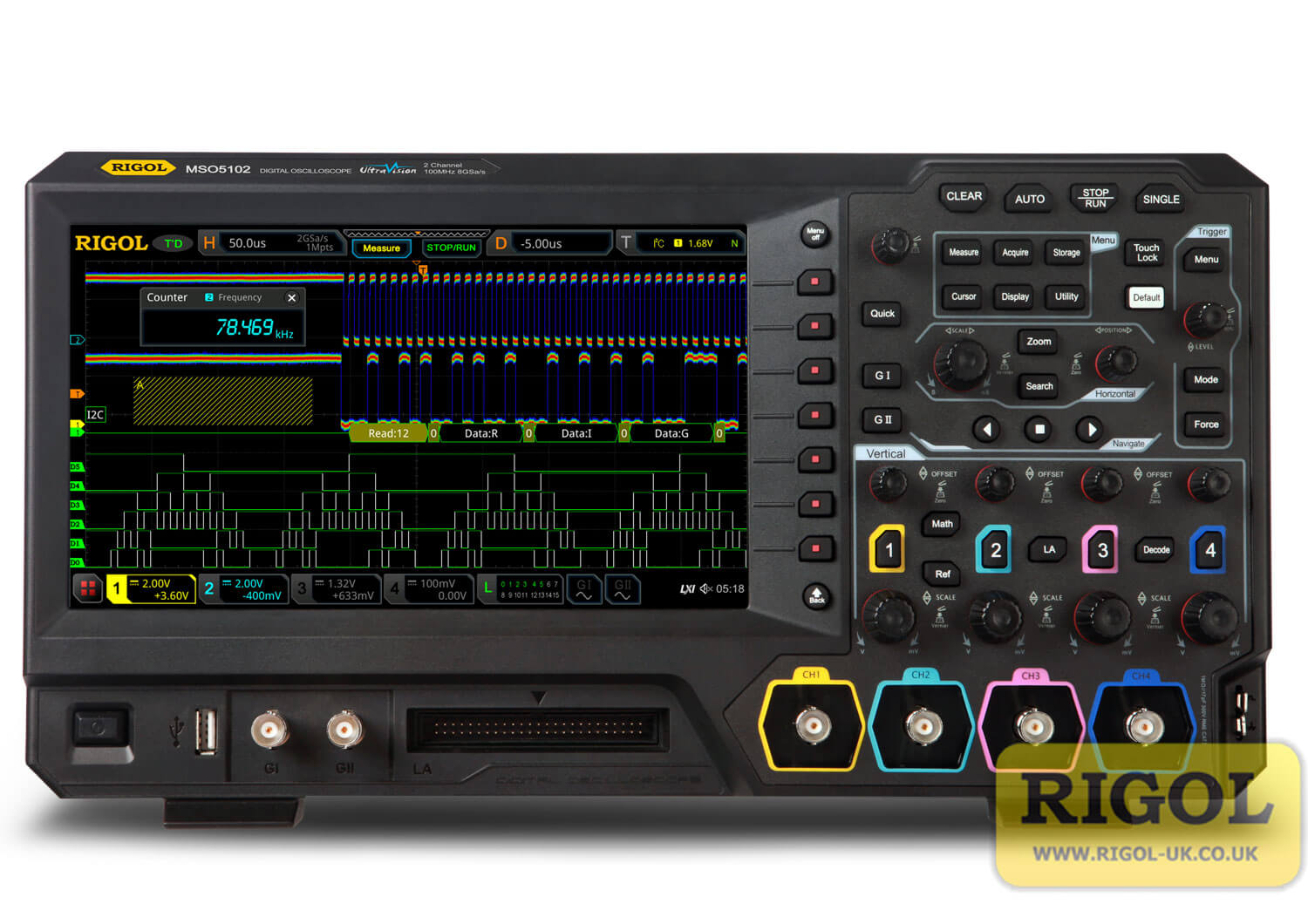

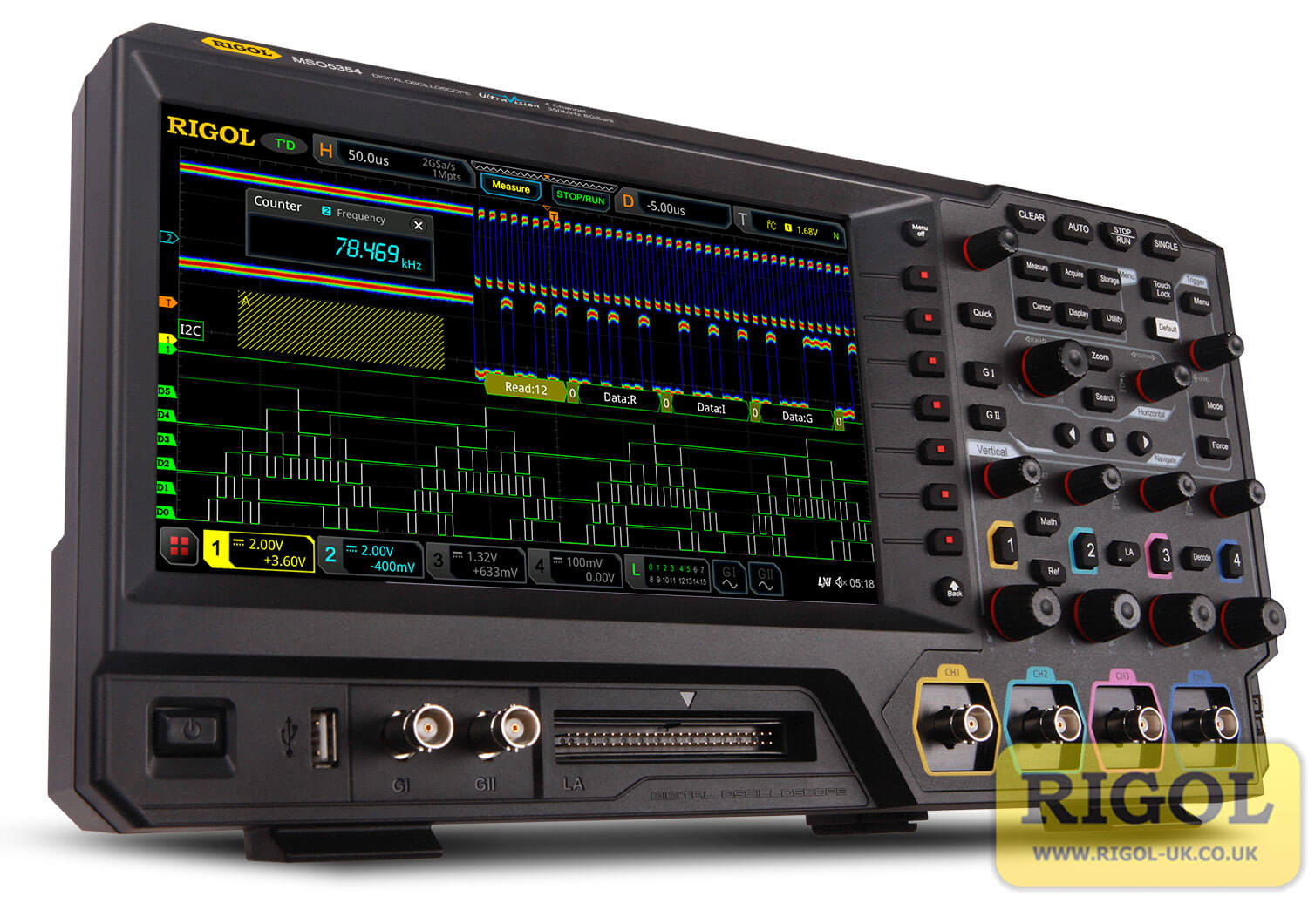

Rigol MSO5102 Digital Oscilloscope

The MSO5102 is a 100MHz, 2CH high-performance Digital Oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9 inch touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production , quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.

Features:

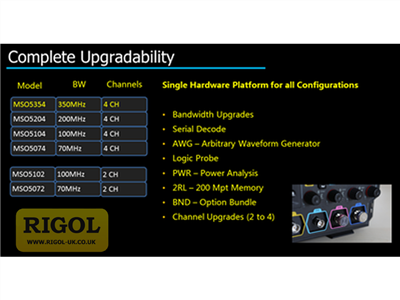

  • Analogue bandwidth: 100 MHz; bandwidth upgrade option supported
  • 2 or 4 analogue channels (upgradeable), standard 16 digital channels(LA probe required)

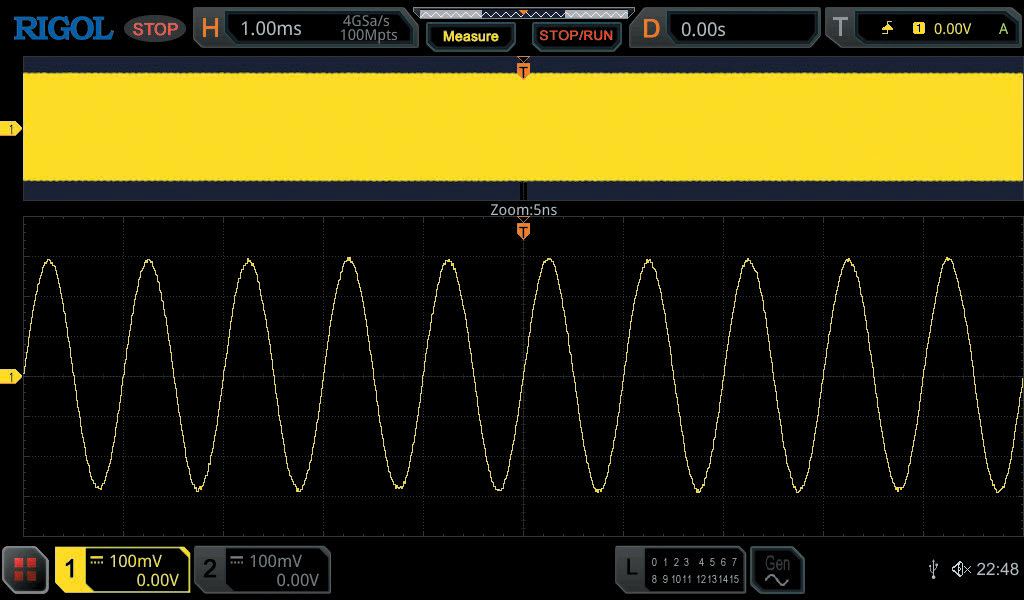

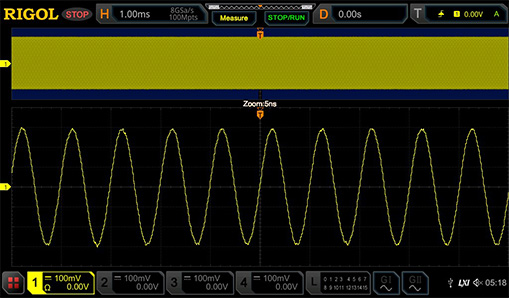

  • Up to 8 GSa/s real-time sample rate
  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfms/s)

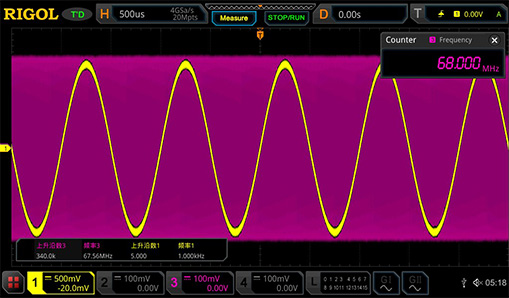

  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • NEW Bode Plot Analysis – Automate advanced device characterisation with new phase and gain analysis capabilities

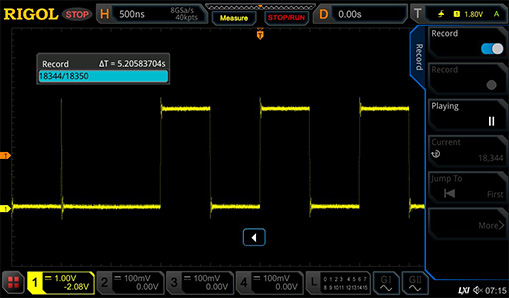

  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table
  • Built-in advanced power analysis software (option)

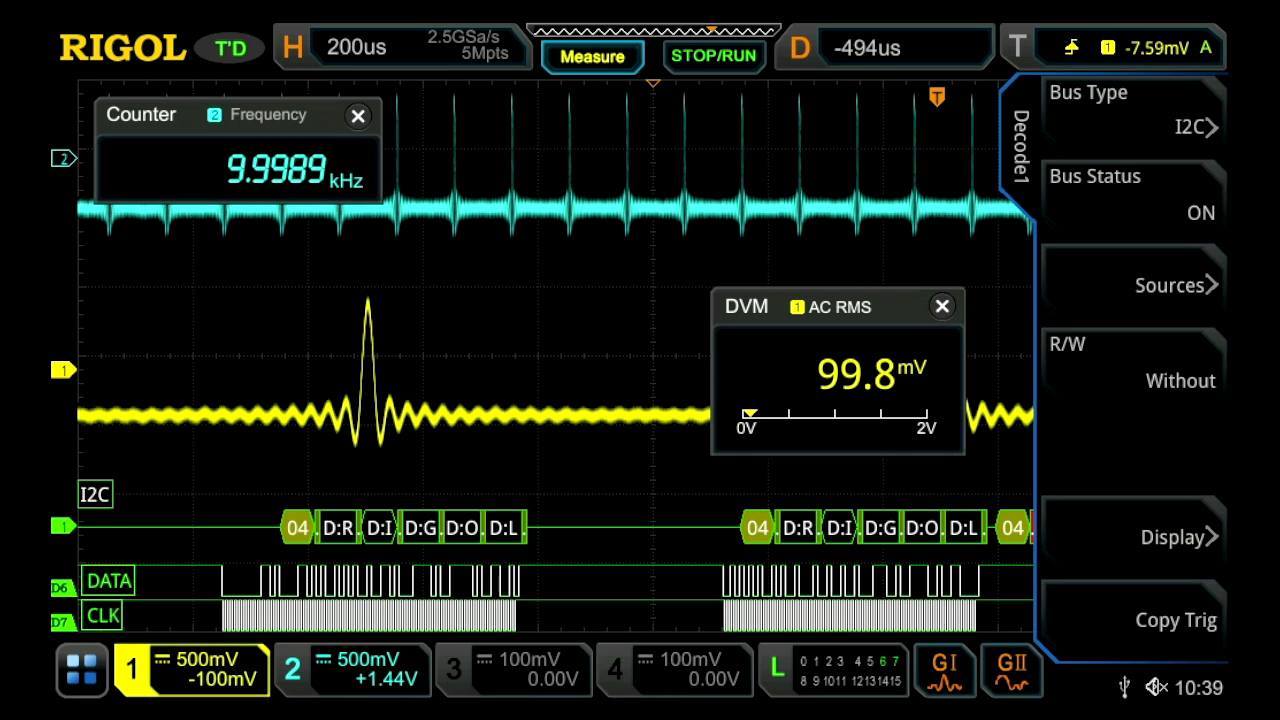

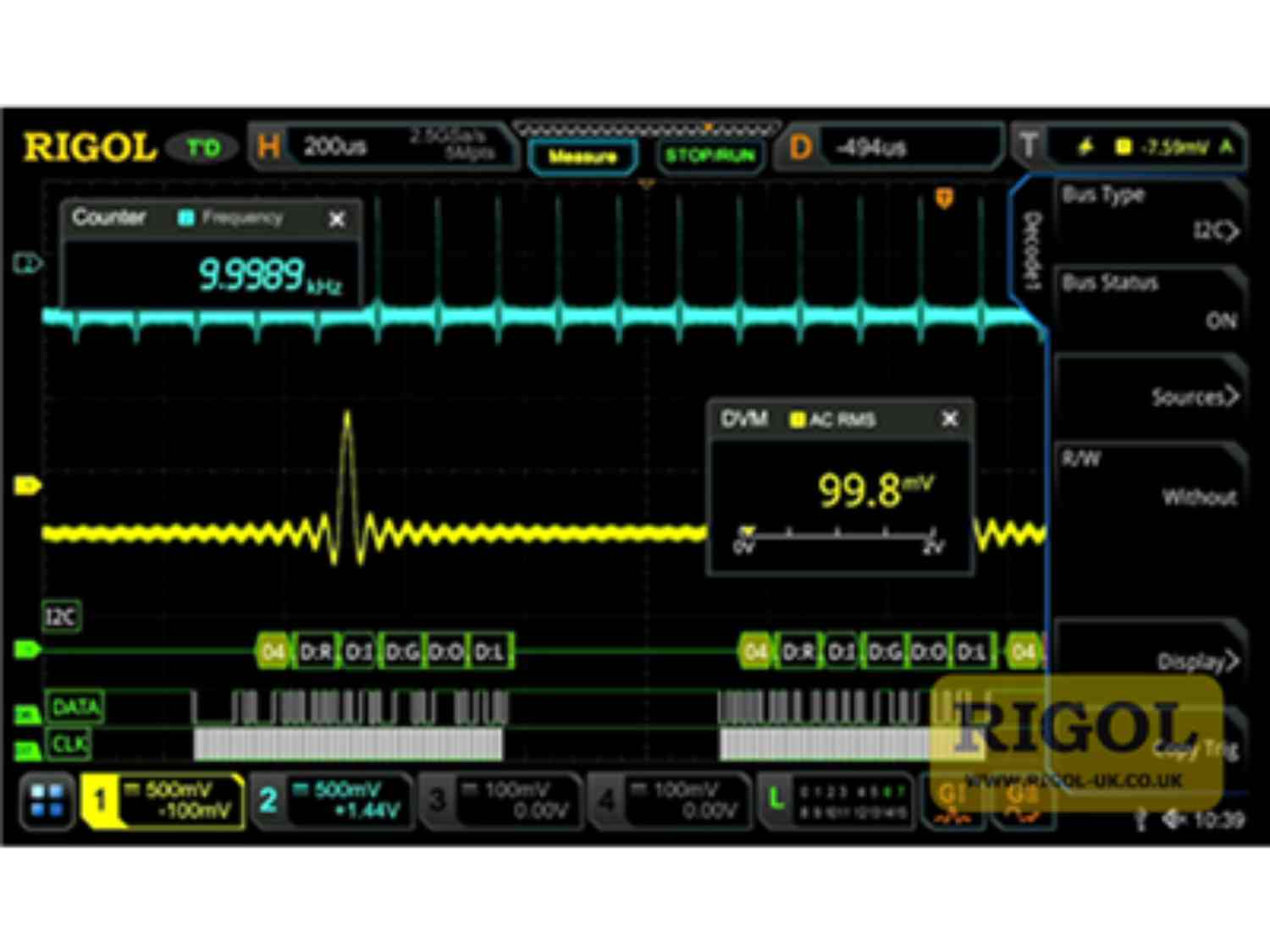

  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyser, a spectrum analyser, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totaliser, and a protocol analyser

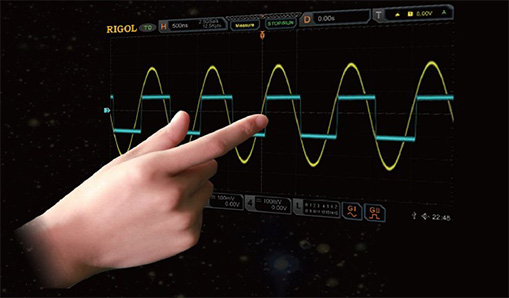

  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with colour persistence

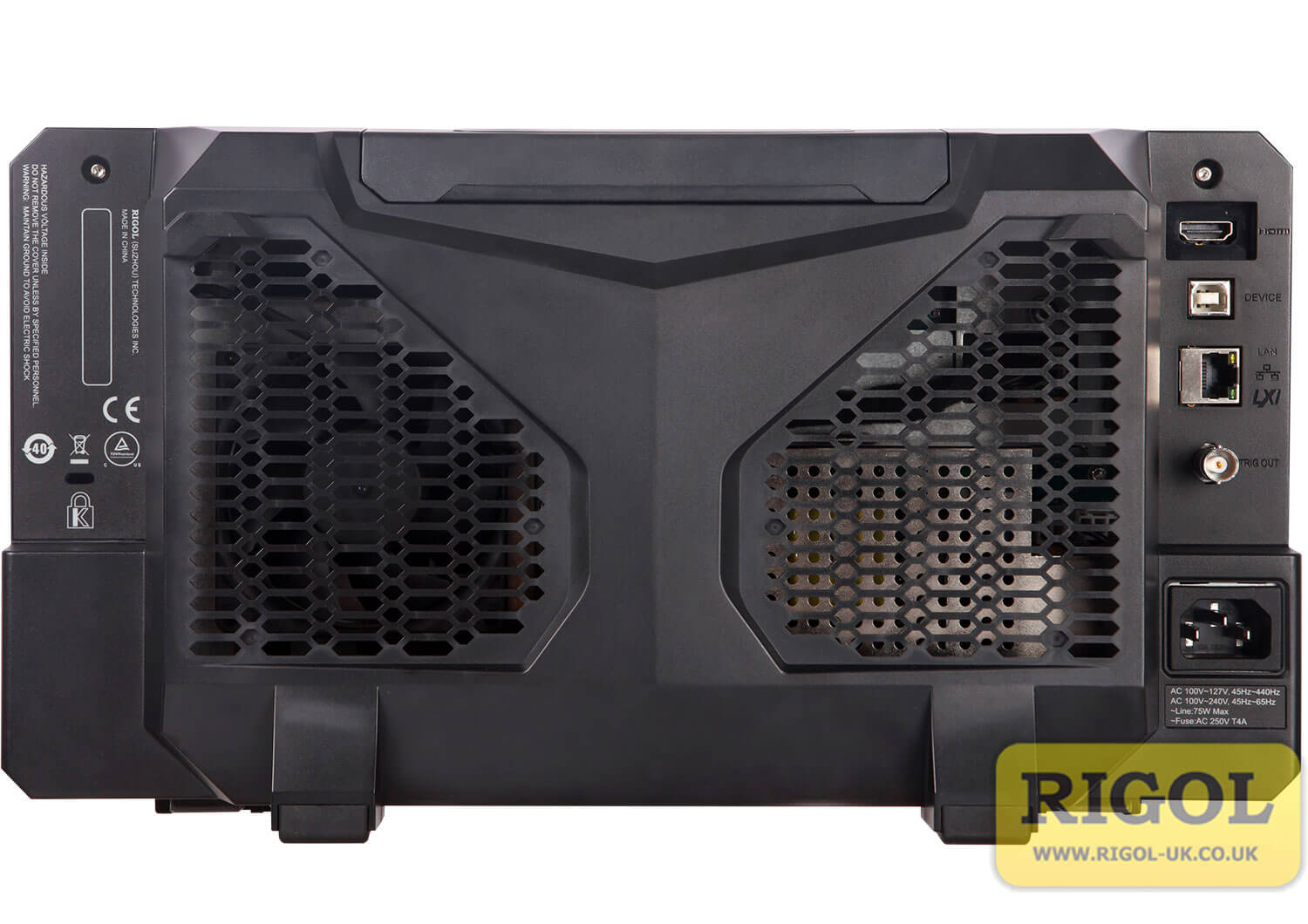

  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB

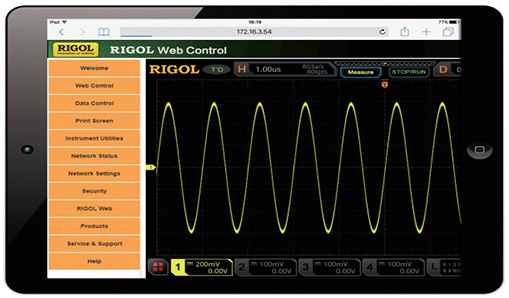

  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate
  • Supplied with… 2-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Vertical System Analogue Channel
Input CouplingDC, AC or GND
Input Impedance1 MΩ±1%
Input Capacitance17 pF ± 3 pF
Probe Attenuation Coefficient0.0001X, 0.0002X, 0.0005X, 0.001X, 0.002X, 0.005X, 0.01X, 0.02X, 0.05X, 0.1X, 0.2X, 0.5X, 1X, 2X, 5X,
10X, 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X, 20000X, and 50000X
Maximum Input VoltageCAT I 300 Vrms, 400 Vpk, Transient Overvoltage 1600 Vpk
Vertical Resolution8 bits
Vertical Sensitivity Range500 μV/div~10 V/div
Offset Range±1 V (500 μV/div~50 mV/div)
±30 V (51 mV/div~260 mV/div)
±100 V (265 mV/div~10 V/div)
Dynamic Range±5 div (8 bits)
Bandwidth Limit (Typical)20 MHz, 100 MHz, 200 MHz; selectable for each channe
DC Gain Accuracy± 3% of full scale
DC Offset Accuracy<200 mV/div (±0.1 div±2 mV±1.5% of offset value) >200 mV/div (±0.1 div±2 mV±1.0% of offset value)
Channel-to-Channel Isolation40 dB, from DC to maximum rated bandwidth of each model
ESD Tolerance±8 kV (on input BNCs)
Vertical System Digital Channel
Number of Channels16 input channels (D0~D15)
(D0~D7, D8~D15)
Threshold Range±15.0 V, in 10 mV step
Threshold Accuracy±(100 mV + 3% of the threshold setting)
Threshold SelectionTTL(1.4 V), COMS5.0(2.5 V), COMS3.3(1.65 V), COMS2.5(1.25 V), COMS1.8(0.9 V), ECL(-1.3 V),
PECL(3.7 V), LVDS(1.2 V), 0.0 V
User (adjustable threshold for 8 channels in a group)
Max. Input Voltage± 40 V peak CAT I; transient overvoltage 800 Vpk
Max. Input Dynamic Range±10 V + threshold
Minimum Voltage Swing500 mVpp
Input ImpedanceAbout 101 kΩ
Probe Load≈8 pF
Vertical Resolution1 bit
Horizontal System Analogue Channel
Time Base Resolution10 ps
Time Base Accuracy±10 ppm ± 10 ppm/year
Time Base Delay Rangebefore triggering: ≥1/2 screen width
after triggering: 1 s or 100 div, whichever is greater
Time Interval (â–³T)
Measurement		±(1 sample interval) ± (2 ppm×readout)±50 ps
Inter-channel Offset Correction Range±100 ns
Horizontal ModeYT: Default
XY X = Channel 1, Y = Channel 2
SCAN: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
ROLL: Time base ≥200 ms/div, available to enter or exit the ROLL mode by rotating the Horizontal SCALE knob
(enable the auto ROLL mode at first)
Horizontal System Digital Channel
Min. Detectable Pulse Width5ns
Maximum Input Frequency200 MHz (accurately copied as the sine wave of the maximum frequency of the logic square wave;
input amplitude is the minimum swing; the shortest the ground cable is required for the logic probe)
Inter-channel Time Delay2 ns (typical), 5 ns (maximum)
Trigger System
Trigger SourceAnalogue channel (1~4), digital channel (D0~D15), AC Line
Trigger ModeAuto, Normal, Single
Trigger CouplingDC: DC coupling trigger
AC: AC coupling trigger
High Frequency Rejection: High frequency rejection, cut-off frequency~55 kHz (internal only)
Low Frequency Rejection: Low frequency rejection, cut-off frequency~55 kHz (internal only)
Noise RejectionIncrease delay for the trigger circuit (internal only), On/Off
Holdoff Range8 ns to 10 s
Trigger BandwidthAnalogue bandwidth
Trigger Sensitivity1 div or 5 mVpp, whichever is larger, <10mV/div
0.5 div, ≥10mV/div
Enable the noise rejection, with trigger sensitivity reducing half
Trigger Level
Range		Internal: ± 5 div from the center of the screen
AC Line Fixed 50%
General Specifications
Power Voltage100 V-240 V, 45 Hz-440 Hz
PowerMax. 75 W (connect to various interfaces, USB)
Fuse4 A, T degree, 250 V
Temperature RangeOperating 0℃~+50℃
Non-operating -30℃~+70℃
Humidity RangeOperating:
Below +30℃: ≤90% RH (without condensation)
+30℃ to +40℃, ≤75% RH (without condensation)
+40℃ to +50℃, ≤45% RH (without condensation)Non-operating Below 65℃: ≤90% RH (without condensation)
AltitudeOperating Below 3,000
Non-operating Below 15,000
LCD9-inch capacitive multi-touch screen/gesture enabled operation
Resolution1024×600 (Screen Region)
Graticule(10 vertical divisions) x (8 horizontal divisions)
PersistenceOff, Infinite, variable persistence (100 ms to 10 s)
Brightness256 intensity levels (LCD,HDMI)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
