Rigol MSO4054 500MHz 4-Channel Mixed Signal Oscilloscope

Description

The MSO4054 is a versatile, high performance digital oscilloscope with built-in logic analyser. It offers a variety of trigger functions and auto measurements, record / playback / analysis functions, selectable 50Ω input impedance and VGA output all as standard. Other standard features include a waveform capture rate up to 110,000wfms/s and a large 9″ WVGA display with 256 intensity level grading. The MSO4054 is a flexible and powerful instrument at a very competitive price.

For further information, please refer to the ‘SPECIFICATION’ and ‘DOCUMENTS, SOFTWARE & VIDEOS’ tabs, above.

An overview of all Rigol mixed signal oscilloscopes can be found HERE.

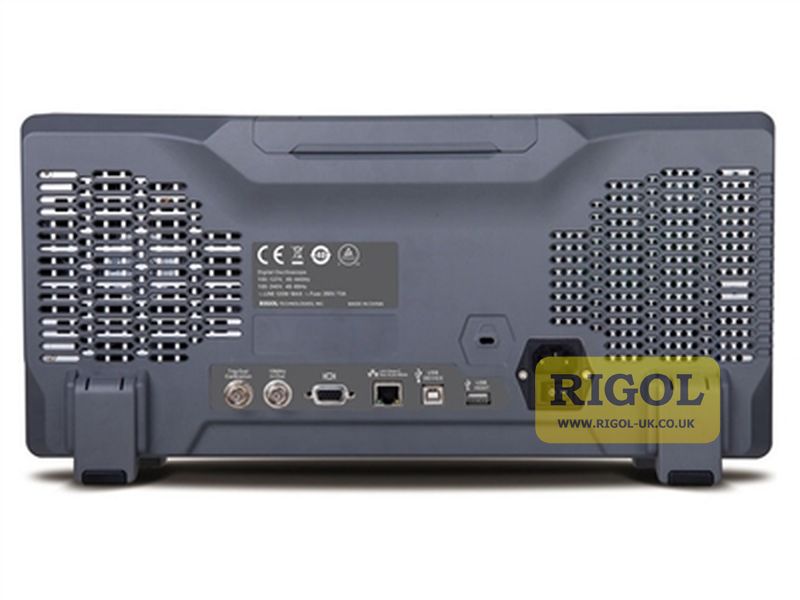

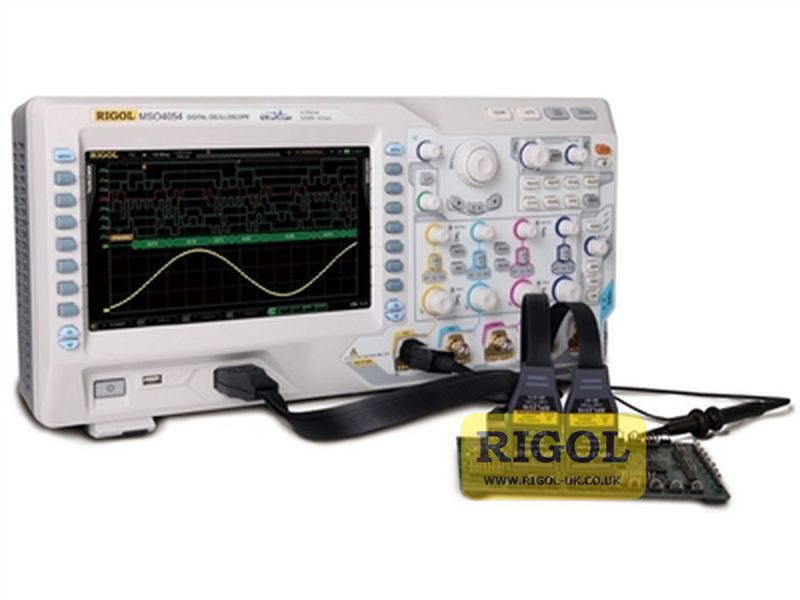

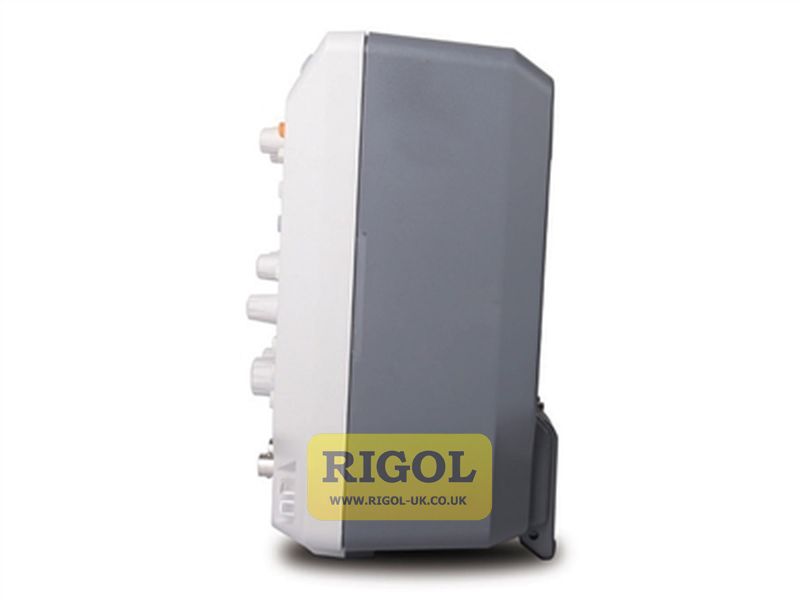

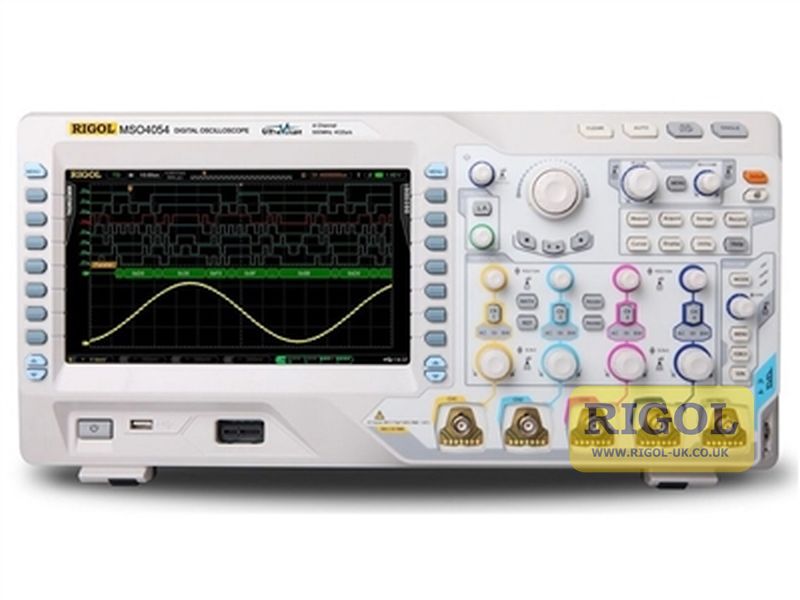

Click image to enlarge
