Description

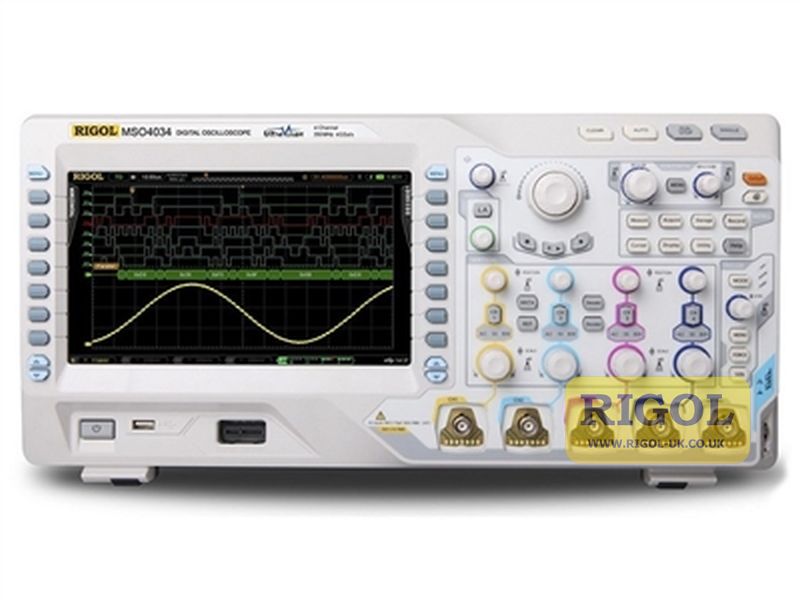

The MSO4034 is a versatile, high performance digital oscilloscope with built-in logic analyser. It offers a variety of trigger functions and auto measurements, record/playback/analysis functions, selectable 50Ω input impedance and VGA output all as standard. Other standard features include a waveform capture rate up to 110,000wfms/s and a large 9″ WVGA display with 256 intensity level grading. The MSO4034 is a flexible and powerful instrument at a very competitive price.
For further information, please refer to the ‘SPECIFICATION’ and ‘DOCUMENTS, SOFTWARE & VIDEOS’ tabs, above.
An overview of all Rigol mixed signal oscilloscopes can be found HERE.
Click image to enlarge
MB –
Fabulouse Scope. Interface easy and intuative.
Not a stock item so extended delivery time but made perfectly clear. Rigol_uk were open and polite when I enquired. As they always are.
The Oscilloscope its self hits all its spec marks 500Mhz bandwidth (Bandwidth extension included). No perceivable inter channel delay for 4 analogue or 16 Digital. there is between Ana and Dig but a delay can be added to fix this.
The interface is pretty much intuitive bar the odd things even then the manual is clear enough.
The Navigation knob nearly always does what you want. When it doesn’t its because there are 2 equally obvious choices (I.E zoomed on one frame of many. Nav Knob changes the frame not the zoom position)
Everything seems to work and nice and responsive.
One thing that would be nice for Multi-Frame recording would be separate triggers for the first and subsequent events. That is I often want to start capturing on on a particular word/value (like a SPI BURST READ Command ) then capture every other bus transaction.
Martin R –
best UK RIGOL stockist e.g MSO4034 Oscilloscope
A quick note to thank you, and Telonic Ltd., for the excellent service you gave for our recent order. I ordered the RIGOL scope online in the early hours of Weds morning, you sent it out later the same day and I received it Thursday within the specified 1 hour delivery slot. I just wanted to let you know that this level of service is much appreciate and I look forward to dealing with you again.
– Martin Ryall
Telonic comment: Thanks for your kind review on the Rigol MSO4034 oscilloscope.
