Description
Discontinued, Replaced with DS1104Z-PLUS
NOW EVEN BETTER VALUE…
GET ALL SOFTWARE OPTIONS FOR FREE!
Buy this Rigol MSO/DS1000Z series oscilloscope and get ALL software options…
(deeper memory, record & replay, advanced trigger functions and serial-bus analysis)
… for FREE (worth £205 + VAT)!

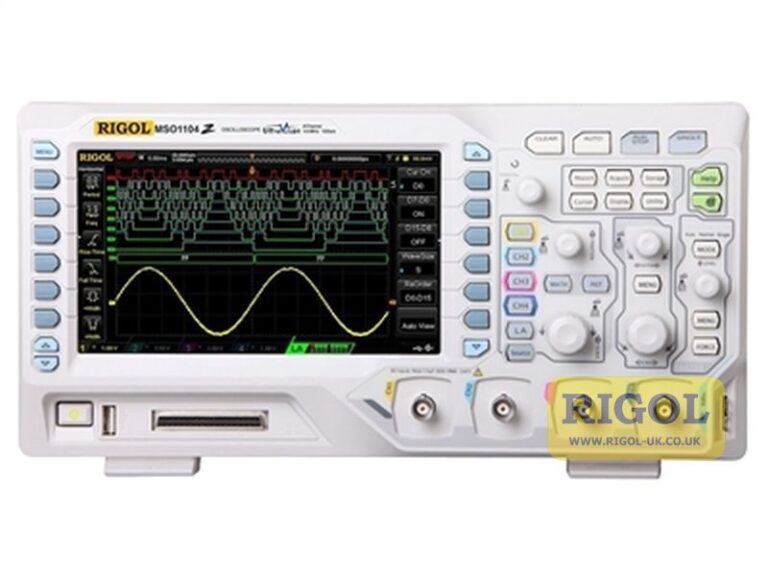

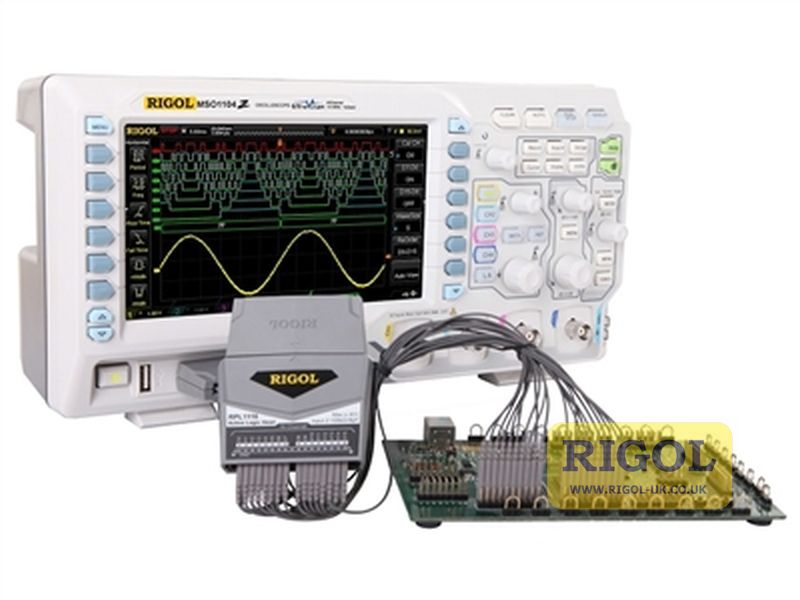

The MSO1104Z is the 100MHz bandwidth variant in the MSO1000Z range of 1GSa/s, 4-channel digital oscilloscopes with a built-in logic analyser. It offers exceptional flexibility, performance and features for the price. Four analogue probes and one logic analyser probe-set are included. Several options are available (see ‘
OPTIONS & ACCESSORIES’ below) to further enhance the user experience including; record and replay functions, deeper memory, advanced trigger functions, serial bus analysis, rack mount kit, standard calibration (traceable to UK national standards) and UKAS calibration.
For further information, please refer to the ‘SPECIFICATION’ and ‘DOCUMENTS, SOFTWARE & VIDEOS’ tabs, above.
An overview of all Rigol mixed signal oscilloscopes can be found HERE.
This Rigol oscilloscope is also available with a built-in 2-channel function / arbitrary waveform generator (MSO1104Z-S).
Click image to enlarge
Mike S –
Good value, but with limitations
The large number of sample points is attractive, but there is no control over the sample rate, so it is difficult even in single-shot mode to make a long capture.
And even if you do manage to make an acceptably long capture, the serial decoding tools are almost useless, because they work only on what is visible on the screen, and will lose sync if the start of (say) and I2C transaction is off screen to the left.
That, and some rough edges in the user interface, detract markedly from the feeling of quality and reliability. For example, the trigger reverts to Auto mode from Normal seemingly at will, and that gets annoying after a while.
Stuart –
Rigol MSO1104Z 100MHz Mixed Signal Oscilloscope
Excellent helpful service from the folks at Rigol/Telonic. Easy transaction and a great product. Well pleased, no hesitation in recommending both. Many thanks.
Patrick –
Good product
Good product at a good price. Good service, delivered on time.

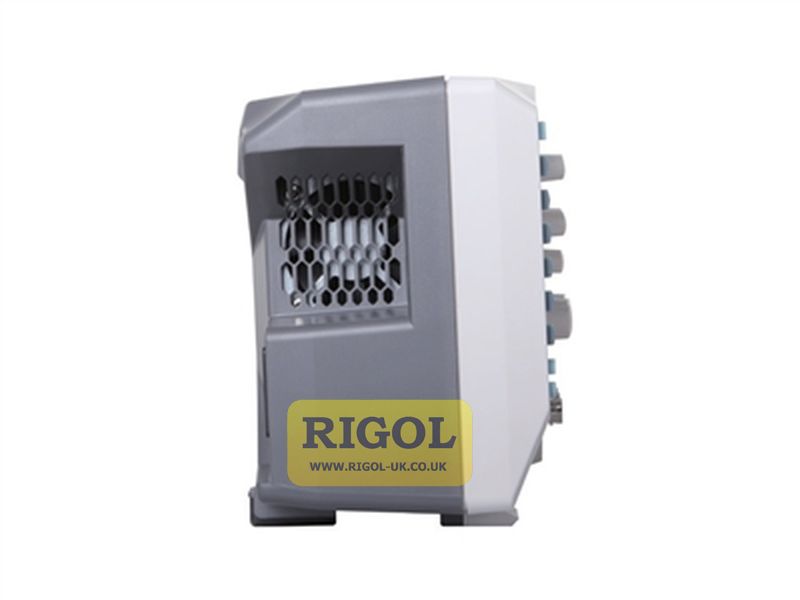

Only one negative – I’m not used to a scope having a noisy cooling fan. I would like to get rid of the fan!
Robin –
MSO1104z
An excellent scope that supports logic analysis. only used it a little since first received it but it has already proved its worth and provided the analysis required.
