Rigol DSG830 3GHz RF Signal Generator

£2939.00 (£3526.80 inc VAT)

SKU: DSG830 Categories: ,

Description

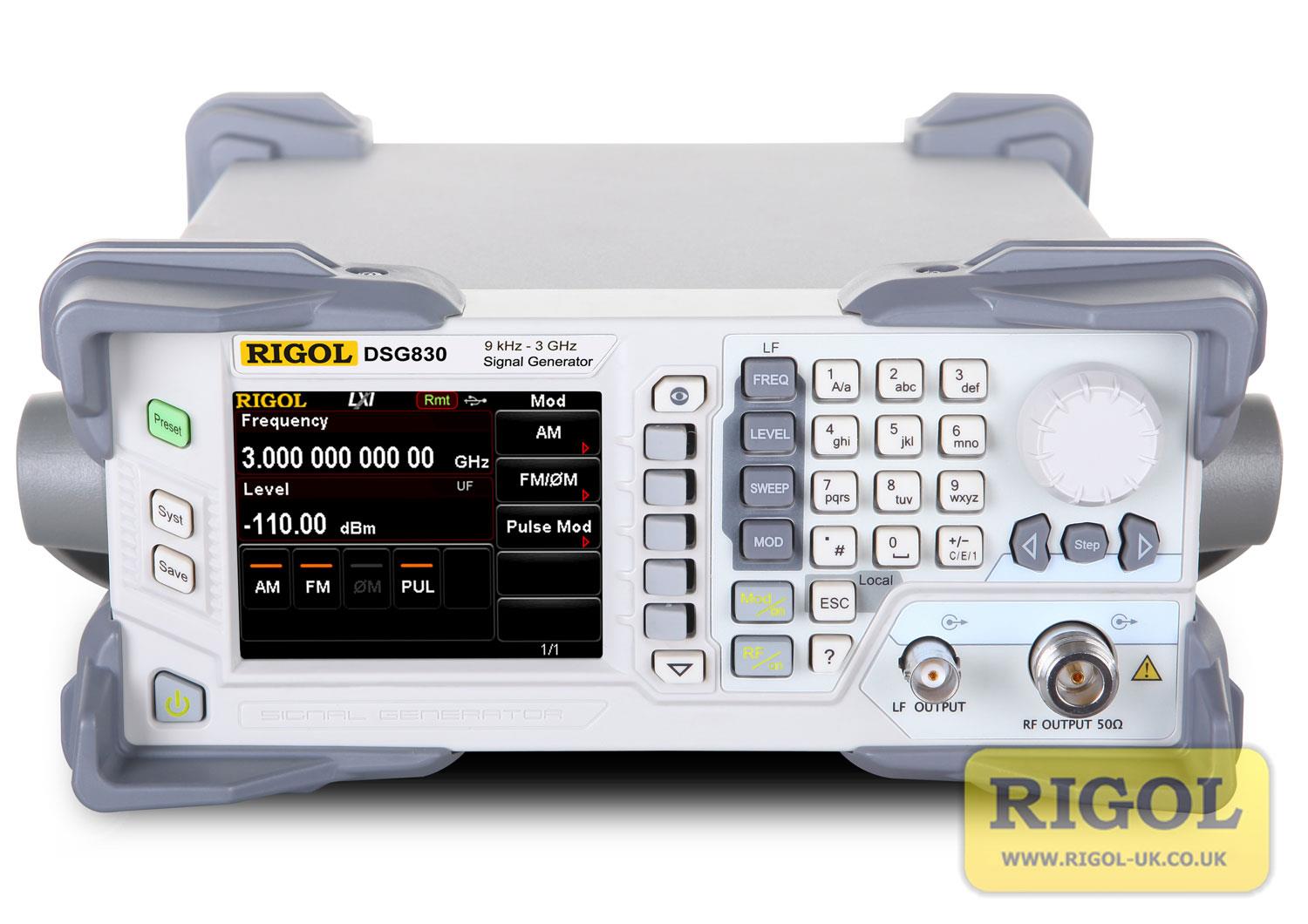

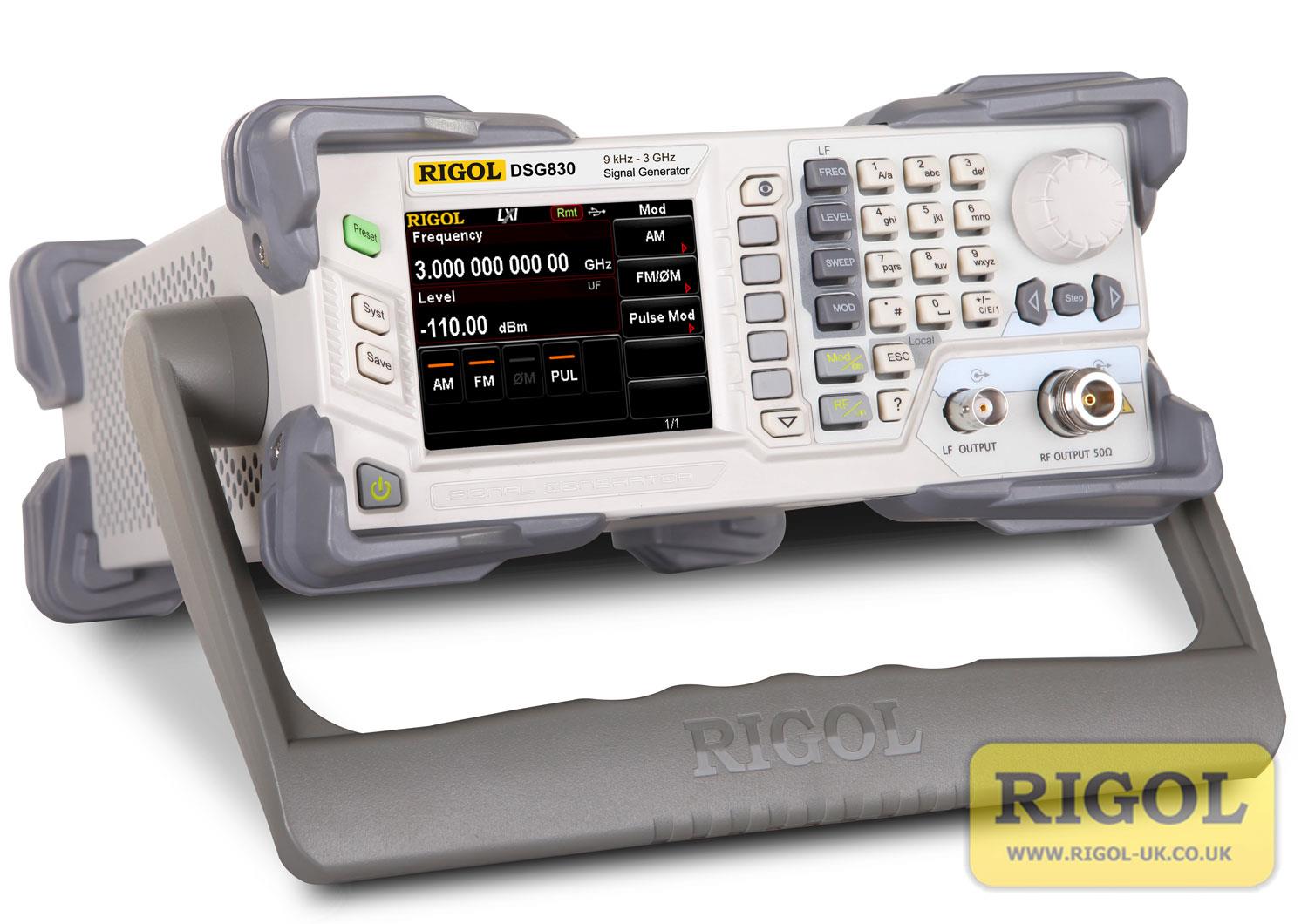

Rigol DSG830 Signal Generator

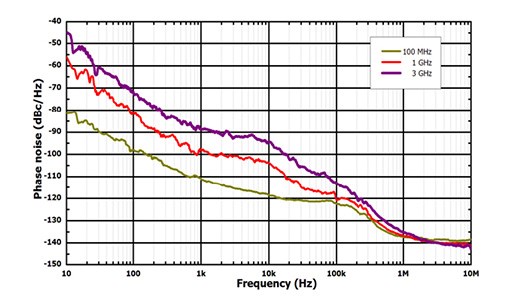

The DSG830 RF Signal Generator has a Frequency Range of 9kHz to 3GHz. The DSG800 offers outstanding performance at an affordable price. There are two models available that cover output frequencies from 9kHz to 1.5GHz (DSG815) or 9kHz to 3GHz (DSG830). Maximum output power is +20dBm (typical). Phase noise reaches -105dBc/Hz (typical). The DSG800 also provides frequency and level sweep functions, AM/FM/ØM analogue modulations as well as a powerful pulse modulation function. With all of these features, the DSG800 is an excellent source for high quality signals (including RF, LF, sweep, pulse and a variety of analogue modulated signals) and for use as a stable reference.

Compared to similar products, the DSG800 is cost effective, lightweight and occupies very little bench space. It’s the perfect choice for various fields such as education laboratories, industrial production lines, as well as research and development labs.

Features:

  • Maximum frequency 3GHz

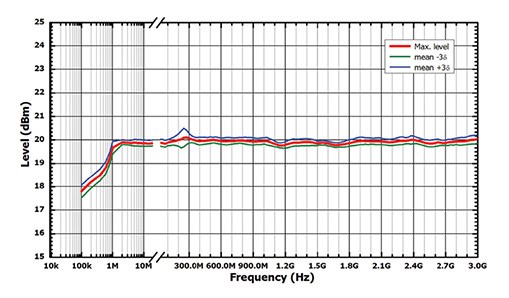

  • Maximum output level 20dBm
  • Excellent value for money

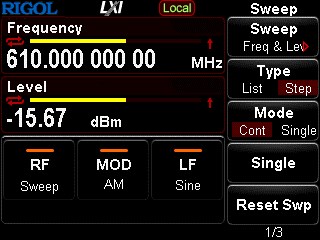

  • AM/FM/PM analogue modulation functions

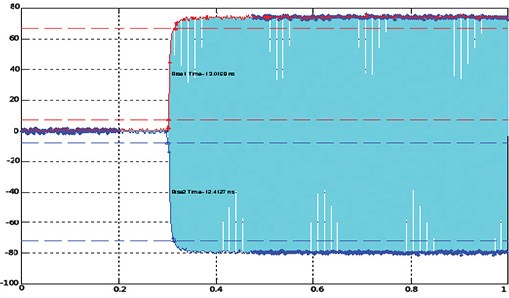

  • Pulse modulation function (optional)
  • Versatile amplitude and frequency sweep functions

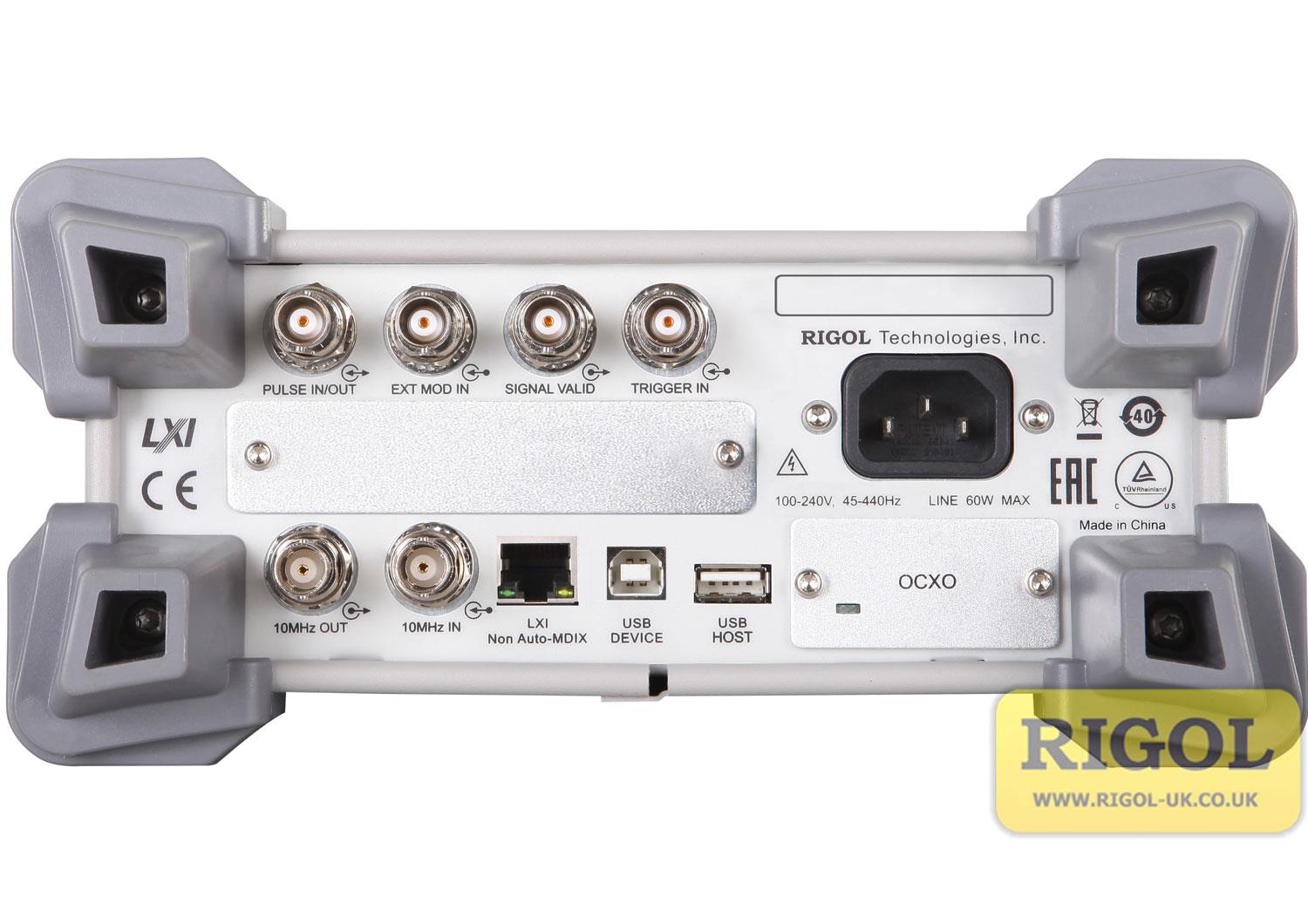

  • USB host/device & LAN(LXI)
  • Electronic attenuator – Avoids wear
  • Internal protection functions

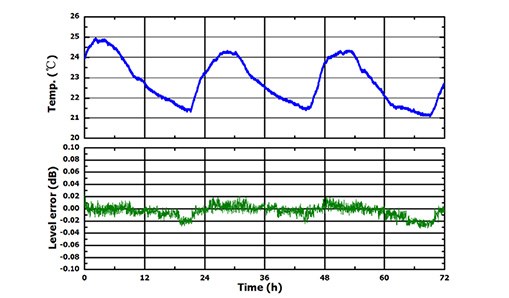

  • Digital ALC
  • Compact, light weight and easy to use
  • Supplied with… USB cable, UK & European mains leads, quick guide
  • Options include… Pulse modulator / pulse generator. pulse train generator, high stability reference oscillator, rack mount kit (for one instrument), rack mount kit (for two instruments), RCL standard calibration, RCL UKAS calibration

Rigol DSG800 RF Signal Generator Comparison Table

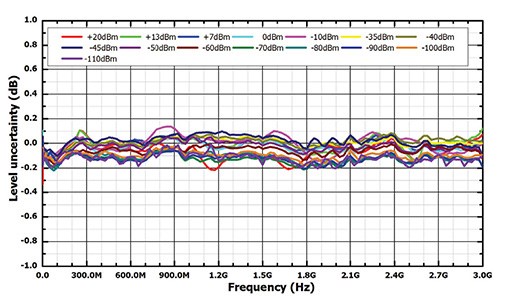

ModelMaximum FrequencyAmplitude AccuracyPhase NoiseIQ ModulationConnectivity
DSG8151.5GHz<0.5dB<-112dBc/HzNoUSB Host & Device, LAN (LXI)
DSG8212.1GHz<0.5dB<-112dBc/HzNoUSB Host & Device, LAN (LXI)
DSG821A2.1GHz<0.5dB<-112dBc/HzYesUSB Host & Device, LAN (LXI)
DSG8303GHz<0.5dB<-112dBc/HzNoUSB Host & Device, LAN (LXI)
DSG8363.6GHz<0.5dB<-112dBc/HzNoUSB Host & Device, LAN (LXI)
DSG836A3.6GHz<0.5dB<-112dBc/HzYesUSB Host & Device, LAN (LXI)

Product Images

Product Videos

YouTube Video

Documentation

Datasheet

Rigol DSG800 Datasheet



Application Notes

Precompliance: Susceptibility testing

Creating an arbitrary IQ Waveform using MatLAB and UltraIQ

Keyless Entry System ASK/FSK Analysis

TX1000 Transmitter Education Testing Application Note



DSG800 Specifications
ModelDSG815DSG821DSG821ADSG830DSG836DSG836A
Frequency Range9 kHz to 1.5 GHz9 kHz to 2.1 GHz9 kHz to 2.1 GHz9 kHz to 3 GHz9 kHz to 3.6 GHz9 kHz to 3.6 GHz
Frequency Resolution0.01 Hz0.01 Hz0.01 Hz0.01 Hz0.01 Hz0.01 Hz
Setting Time< 10 ms (typ.)< 10 ms (typ.)< 10 ms (typ.)< 10 ms (typ.)< 10 ms (typ.)< 10 ms (typ.)
Frequency Band
BandFrequency range | NFrequency range | NFrequency range | NFrequency range | NFrequency range | NFrequency range | N
1f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25
2227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125
3455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25
4910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5
51820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 1
Internal Reference Frequency
Reference frequency10 MHz10 MHz10 MHz10 MHz10 MHz10 MHz
Temperature stability
In temperature range 0℃ to 50℃ , reference to 25℃< 2 ppm< 2 ppm< 2 ppm< 2 ppm< 2 ppm< 2 ppm
With option OCXO-B08< 5 ppb< 5 ppb< 5 ppb< 5 ppb< 5 ppb< 5 ppb
Aging rate< 1 ppm/year< 1 ppm/year< 1 ppm/year< 1 ppm/year< 1 ppm/year< 1 ppm/year
With option OCXO-B08< 30 ppb/year< 30 ppb/year< 30 ppb/year< 30 ppb/year< 30 ppb/year< 30 ppb/year
Internal reference frequency output
Frequency10 MHz10 MHz10 MHz10 MHz10 MHz10 MHz
Level+5 dBm to +10 dBm+5 dBm to +10 dBm+5 dBm to +10 dBm+5 dBm to +10 dBm+5 dBm to +10 dBm+5 dBm to +10 dBm
External reference frequency input
Frequency10 MHz10 MHz10 MHz10 MHz10 MHz10 MHz
Level0 dBm to +10 dBm0 dBm to +10 dBm0 dBm to +10 dBm0 dBm to +10 dBm0 dBm to +10 dBm0 dBm to +10 dBm
Maximum deviation±5 ppm±5 ppm±5 ppm±5 ppm±5 ppm±5 ppm
General Specifications
Display
TypeTFT LCDTFT LCDTFT LCDTFT LCDTFT LCDTFT LCD
Resolution320 (RGB) × 240320 (RGB) × 240320 (RGB) × 240320 (RGB) × 240320 (RGB) × 240320 (RGB) × 240
Size3.5 inches3.5 inches3.5 inches3.5 inches3.5 inches3.5 inches
Mass Storage
Mass StorageFlash non-volatile memory (internal); USB storage device (not supplied)Flash non-volatile memory (internal); USB storage device (not supplied)Flash non-volatile memory (internal); USB storage device (not supplied)Flash non-volatile memory (internal); USB storage device (not supplied)Flash non-volatile memory (internal); USB storage device (not supplied)Flash non-volatile memory (internal); USB storage device (not supplied)
Data storage spaceFlash non-volatile memory
(internal) 96 MB (nom.)		Flash non-volatile memory
(internal) 96 MB (nom.)		Flash non-volatile memory
(internal) 96 MB (nom.)		Flash non-volatile memory
(internal) 96 MB (nom.)		Flash non-volatile memory
(internal) 96 MB (nom.)		Flash non-volatile memory
(internal) 96 MB (nom.)
Power Supply
Input voltage range, AC100 V to 240 V (nom.)100 V to 240 V (nom.)100 V to 240 V (nom.)100 V to 240 V (nom.)100 V to 240 V (nom.)100 V to 240 V (nom.)
AC frequency range45 Hz to 440 Hz45 Hz to 440 Hz45 Hz to 440 Hz45 Hz to 440 Hz45 Hz to 440 Hz45 Hz to 440 Hz
Power consumptionWith all the options | 50 W (typ.), max. 60 WWith all the options | 50 W (typ.), max. 60 WWith all the options | 50 W (typ.), max. 60 WWith all the options | 50 W (typ.), max. 60 WWith all the options | 50 W (typ.), max. 60 WWith all the options | 50 W (typ.), max. 60 W
Environmental
Temperature
Operating temperature range0℃ to 50℃0℃ to 50℃0℃ to 50℃0℃ to 50℃0℃ to 50℃0℃ to 50℃
Storage temperature range-20℃ to 70℃-20℃ to 70℃-20℃ to 70℃-20℃ to 70℃-20℃ to 70℃-20℃ to 70℃
Humidity
0℃ to 30℃≤ 95% rel. humidity≤ 95% rel. humidity≤ 95% rel. humidity≤ 95% rel. humidity≤ 95% rel. humidity≤ 95% rel. humidity
30℃ to 40℃≤ 75% rel. humidity≤ 75% rel. humidity≤ 75% rel. humidity≤ 75% rel. humidity≤ 75% rel. humidity≤ 75% rel. humidity
40℃ to 50℃≤ 45% rel. humidity≤ 45% rel. humidity≤ 45% rel. humidity≤ 45% rel. humidity≤ 45% rel. humidity≤ 45% rel. humidity
Altitude
Operating heightBelow 3,000mBelow 3,000mBelow 3,000mBelow 3,000mBelow 3,000mBelow 3,000m
Dimensions261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)		261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)		261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)		261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)		261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)		261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)
Weight4.2 kg (9.3 Ib)4.2 kg (9.3 Ib)4.2 kg (9.3 Ib)4.2 kg (9.3 Ib)4.2 kg (9.3 Ib)4.2 kg (9.3 Ib)

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
