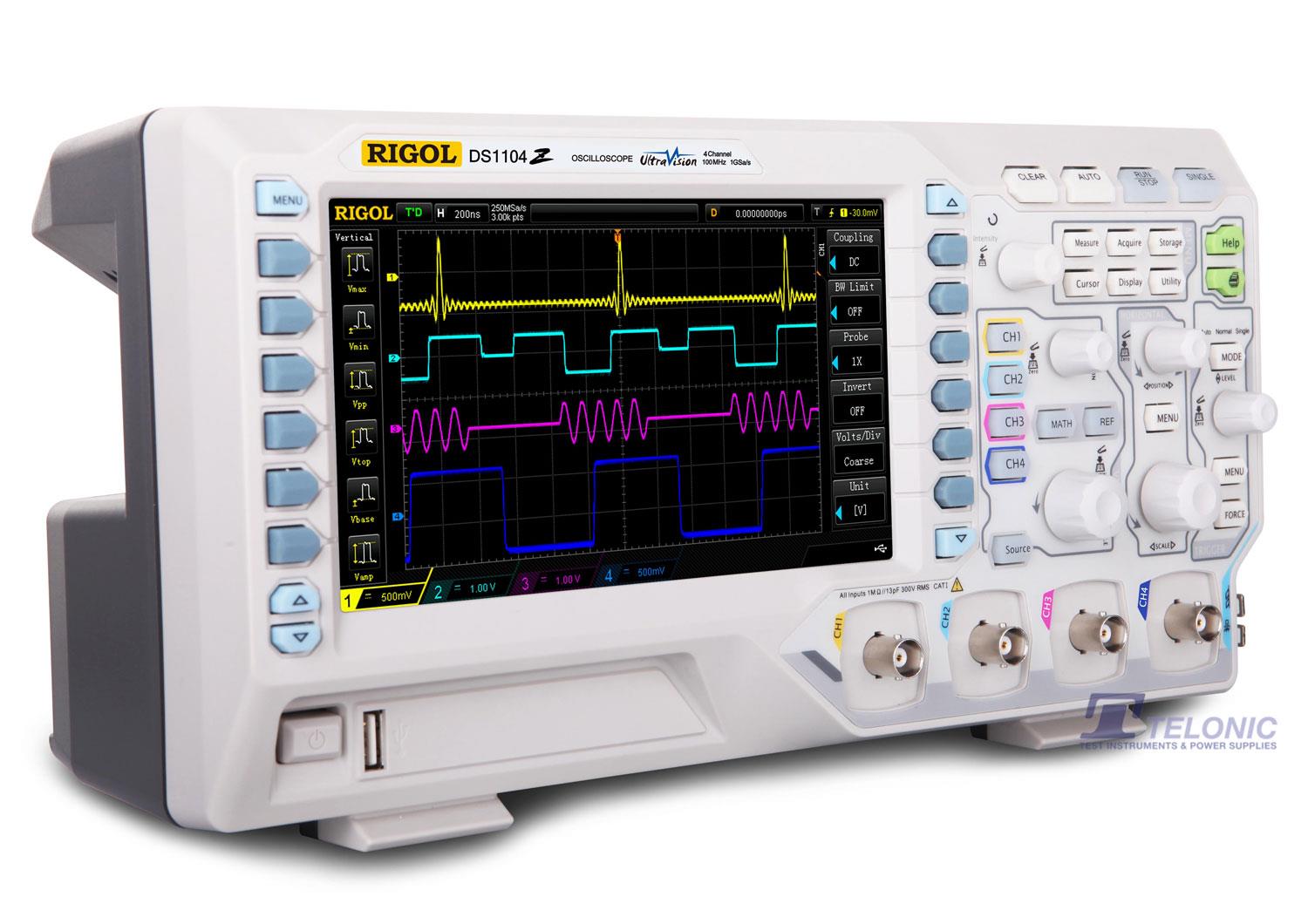

| Sample Mode | Real-Time Sample Rate |
| Real-Time Sample Rate | Analogue channel:
1 GSa/s (single-channel),
500 MSa/s (dual-channel), 250 MSa/s (three/four-channel)
Digital channel:
1 GSa/s (8-channel), 500 MSa/s (16-channel) |
| Peak Detect | Analogue channel: 4 ns
Digital channel: 4 ns |
| Averaging | After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512 or 1024. |
| High Resolution | 12 bit (max.) |
| Interpolation | Sin(x)/x (optional) |
| Minimum Detect Pulse Width | Digital channel: 10 ns |
| Memory Depth | Analogue channel:
24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (three/four-channel)
Digital channel:
24 Mpts (8-channel), 12 Mpts (16-channel) |

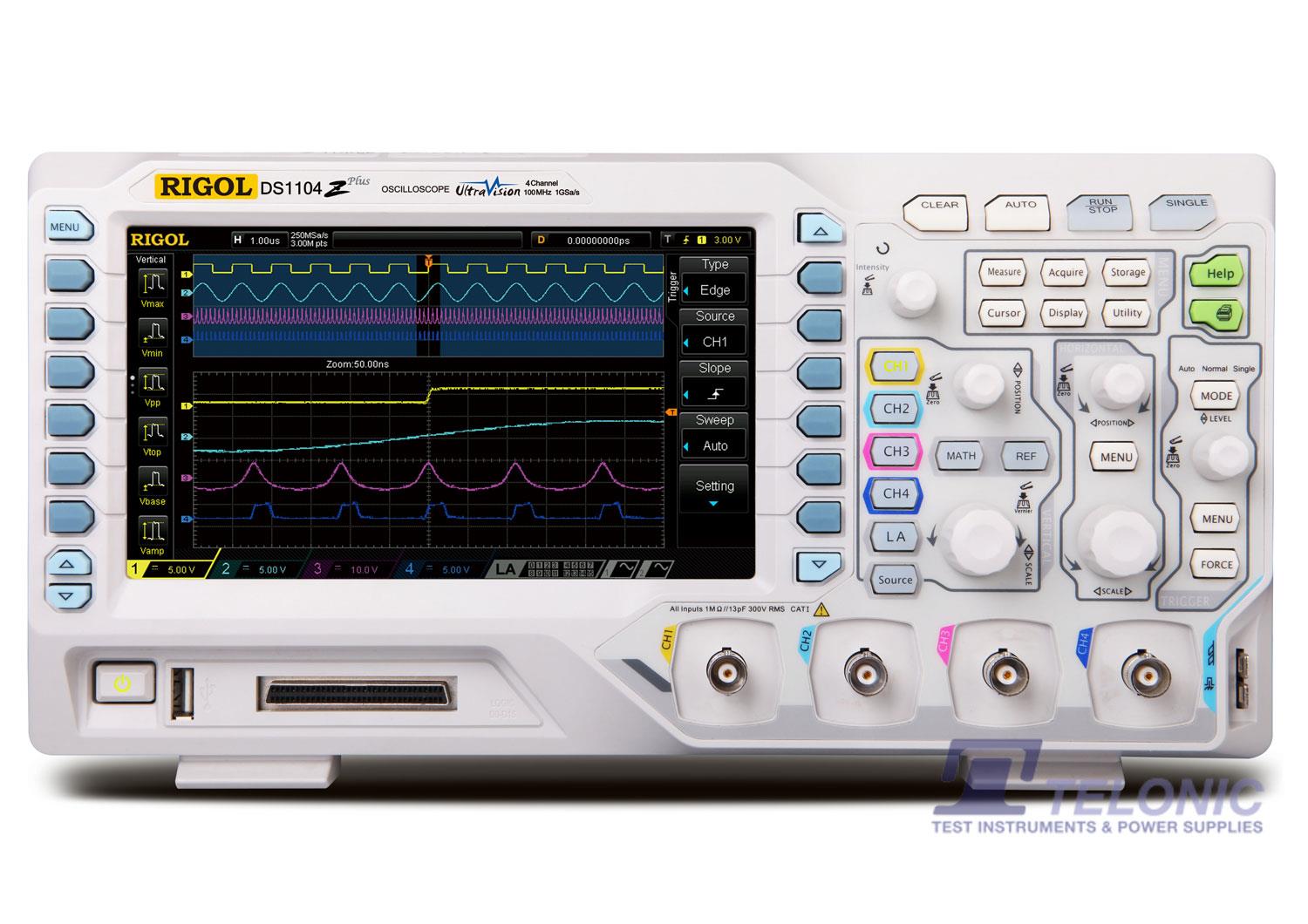

| Input | |
|---|
| Number of Channels | DS1XX4Z Plus/1XX4Z-S Plus: 4 analogue channels, 16 digital channels available after upgrade
DS1054Z: 4 analogue channels |
| Input Coupling | DC, AC or GND |
| Input Impedance | Analogue channel: (1 MΩ±1%) || (15 pF±3 pF)
Digital channel: (100 kΩ±1%) || 8 pF±3 pF) |
| Probe Attenuation Coefficient | Analogue channel: 0.01X to 1000X, in 1-2-5 step |
| Maximum Input Voltage (1MΩ) | Analogue channel:
CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk
Digital channel:
CAT I 40 Vrms, transient overvoltage 800 Vpk |
| Horizontal | |
|---|
| Timebase Scale | 5 ns/div to 50 s/div |
| Maximum Record Length | 24 Mpts |
| Timebase Accuracy | ≤ ± 25 ppm |
| Clock Drift | ≤ ± 5 ppm/year |
| Maximum Delay Range | Negative delay: 1/2 (Memory Depth/Sample Rate)
Positive delay: 1 s to 500 s |
| Timebase Mode | YT, XY, Roll |
| Number of X-Y’s | 1 |
| Waveform Capture Rate | 30,000 wfms/s (dots display) |
| Zero Offset | ±0.5div*minimum time base scale |
| Vertical | |
|---|
| Bandwidth (-3dB) | DS1104Z Plus/1104Z-S Plus: DC to 100 MHz
DS1074Z Plus/1074Z-S Plus: DC to 70 MHz
DS1054Z: DC to 50 MHz |
| Single-shot Bandwidth | DS1104Z Plus/1104Z-S Plus: DC to 100 MHz
DS1074Z Plus/1074Z-S Plus: DC to 70 MHz
DS1054Z: DC to 50 MHz |
| Vertical Resolution | Analogue channel: 8 bits
Digital channel: 1 bit |
Vertical Scale
(Probe ratio is 1X) | 1 mV/div to 10 V/div |
Offset Range
(Probe ratio is 1X) | 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V |
| Bandwidth Limit | 20 MHz |
Low Frequency Response
(AC coupling, -3dB) | ≤5 Hz (on BNC) |
| Calculated Rise Time | DS1104Z Plus/1104Z-S Plus: 3.5 ns
DS1074Z Plus/1074Z-S Plus: 5 ns
DS1054Z: 7 ns |
| DC Gain Accuracy | <10 mV: ±4% full scale
≥10 mV: ±3% full scale |
| DC Offset Accuracy | ±0.1 div ± 2 mV ± 1% offset |
| Channel to Channel Isolation | DC to maximum bandwidth: >40 dB |
| Trigger | |
|---|
| Trigger Level Range | ±5 div from the centre of the screen |
| Trigger Mode | Auto, Normal, Single |
| Holdoff Range | 16 ns to 10 s |
| High Frequency Rejection | 75 kHz |
| Low Frequency Rejection | 75 kHz |
| Trigger Sensitivity | 1.0 div (below 5 mV or noise rejection is enabled)
0.3 div (above 5 mV and noise rejection is disabled) |
| Edge Type | Rising, Falling, Rising/Falling |
| Pulse Condition | Positive Pulse Width (greater than, lower than, within specified interval)
Negative Pulse Width (greater than, lower than, within specified interval) |
| Pulse Width | 8 ns to 10 s |
| Pulse Width Condition | None, >, <, <> |
| Polarity | Positive, Negative |
| Pulse Width Range | 8 ns to 10 s |
| Windows Type | Rising, Falling, Rising/Falling |
| Trigger Position | Enter, Exit, Time |
| Windows Time | 8 ns to 10 s |
| Edge Type | Rising, Falling |
| Idle Time | 16 ns to 10 s |
| Edge Number | 1 to 65535 |
| Slope Condition | Positive Slope (greater than, lower than, within specified interval)
Negative Slope (greater than, lower than, within specified interval) |
| Time Setting | 8 ns to 10 s |
| Signal Standard | NTSC, PAL/SECAM, 480P, 576P |
| Pattern Setting | H, L, X, Rising, Falling |
| Edge Type | Rising, Falling |
| Delay Type | >, <, <>, >< |
| Delay Time | 8 ns to 10 s |
| Edge Type | Rising, Falling, Rising/Falling |
| TimeOut Value | 16 ns to 10 s |
| Pattern | H, L, X |
| Trigger Condition | >, <, <> |
| Duration Time | 8 ns to 10 s |
| Edge Type | Rising, Falling |
| Data Pattern | H, L |
| Setup Time | 8 ns to 1 s |
| Hold Time | 8 ns to 1 s |
| Polarity | Normal, Invert |
| Trigger Condition | Start, Error, Check Error, Data |
| Baud Rate | 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps, 460800 bps,
921600 bps, 1 Mbps and User |

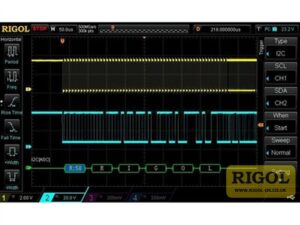

| Data Bits | 5 bits, 6 bits, 7 bits, 8 bits |
| Trigger Condition | Start, Restart, Stop, Missing Ack, Address, Data, A&D |
| Address Bits | 7 bits, 8 bits, 10 bits |
| Address Range | 0 to 127, 0 to 255, 0 to 1023 |
| Byte Length | 1 to 5 |
| Trigger Condition | Timeout, CS |
| Timeout Value | 16 ns to 10 s |
| Data Bits | 4 bit to 32 bit |
| Data Line Setting | H, L, X |
| Measure | |
|---|
| Cursor | Manual mode:
Voltage deviation between cursors ( △V )
Time deviation between cursors ( △T )
Reciprocal of △T (Hz) (1/ △T )
Track mode:
Voltage and time values of the waveform point
Auto mode:
Allow to display cursors during auto measurement |
| Auto Measurement | Analogue channel:
Period, Frequency, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle,
Negative Duty Cycle, tVmax, tVmin, Positive Rate, Negative Rate, Delay 1→2 , Delay 1→2 , Phase
1→2 , Phase 1→2 , Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Upper
Value, Middle Value, Lower Value, Average, Vrms, Overshoot, Pre-shoot, Area, Period Area, Period Vrms,
Variance
Digital channel:
Period, Frequency, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle,
Delay 1→2 , Delay 1→2 , Phase 1→2 , Phase 1→2 |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Range | Screen or cursor |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Counter | Hardware 6 bits counter (channels are selectable) |
| Display | |
|---|
| Display Type | 7.0 inch TFT LCD display |
| Display Resolution | 800 horizontal × RGB × 480 vertical pixel |
| Display Colour | 16 million color (24 bit true color) |
| Persistence Time | Min, 100 ms, 200 ms, 500 ms, 1 s, 5 s, 10 s, Infinite |
| Display Type | Dots, Vectors |
| I/O | |
|---|
| Standard Ports | USB Host, USB Device, LAN, AUX Output (TrigOut/PassFail) |
| General Specifications | |
|---|
| Output Voltage | About 3 V, peak-peak |
| Frequency | 1 kHz |
| Power Voltage | 100 V to 240 V, 45 Hz to 440 Hz |
| Power | Maximum 50 W |
| Fuse | 2 A, T degree, 250 V |
| Temperature Range | Operating: 0℃ to +50℃
Non-operating: -40℃ to +70℃ |
| Cooling Method | Fan cooling |
| Humidity Range | 0℃ to +30℃ : ≤95℃ relative humidity,
+30℃ to +40℃ : ≤75℃ relative humidity,
+40℃ to +50℃ : ≤45℃ relative humidity |
| Altitude | Operating: under 3,000 meters,
Non-operating: under 15,000 meters |
| Dimensions | Width × Height × Depth = 313.1 mm × 160.8 mm × 122.4 mm |
| Weight | Without package 3.2 kg ± 0.2 kg,
With package 3.8 kg ± 0.5 kg |
| Calibration Interval | The recommended calibration interval is 18 months. |
Rigol DS1000Z Datasheet
