Rigol DP832A DC Power Supply

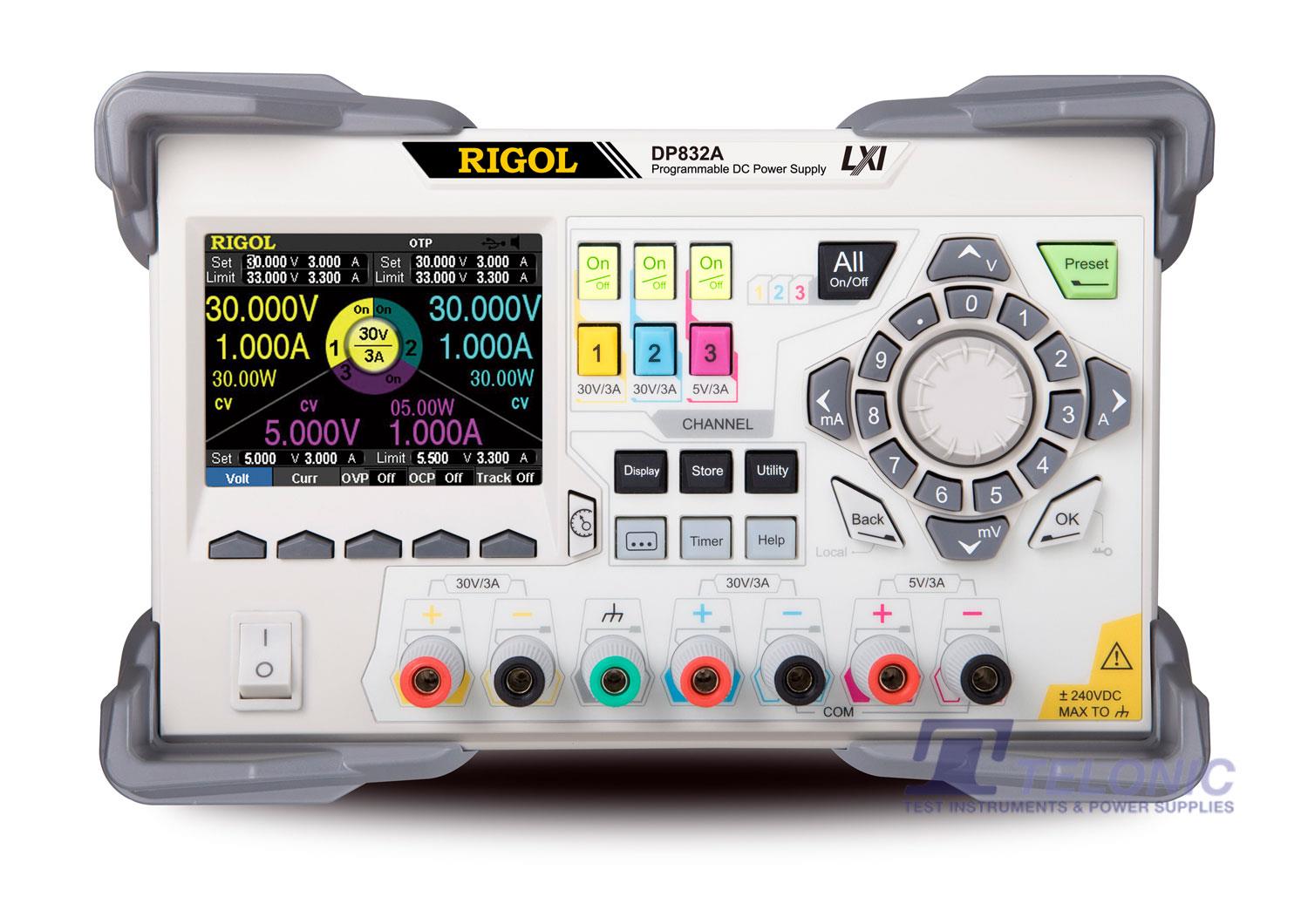

The DP832A is a Triple Output 30V/3A & 30V/3A & 5V/3A Bench Linear DC Power Supply. Each model in the Rigol DP800 series of high-performance programmable linear DC power supplies is user-friendly, affordable and possesses multiple protection features.
The following features are standard on ‘DP8xxA’ models and optional on ‘DP8xx’ models: High resolution output control, online monitoring and analysis functions, 4-off trigger inputs/outputs, RS232 & LAN interfaces.
Each model has a 3.5″ TFT display, multi-colour on ‘DP8xxA’ models and selectable single colour on ‘DP8xx’ models.
Features:
- Three outputs – Controlled independently
- Low ripple and noise
- Excellent load regulation and line regulation
- Fast transient response time <50μs
- Over-voltage and over-current protection
- Over-temperature protection
- Fan failure check and alarm
- 3.5″ TFT display
- Built-in V/A/W measurements and waveform display
- Built-in Help system
- Delay on/off function & toggle on/off function
- Built-in recorder logs output state
- Self-test and manual calibration functions
- Supports SCPI command set for remote control
- Connectivity… USB Host & Device, LAN, RS232, Digital IO
- Supplied with… USB cable, shorted device, spare fuse, UK & European mains leads, quick guide
- Options include… USB to GPIB module, rack mount kit (single instrument), rack mount kit (two instruments), Telonic Standard Calibration, RCL 17025 Calibration
Rigol DP800 DC Power Supply Comparison Table
| Model | Output Voltage | Output Current | Bench/Rack | Control |
|---|---|---|---|---|
| DP811 | Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A | Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A | Bench / Rack (Opt) | USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt) |
| DP811A | Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A | Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A | Bench / Rack (Opt) | USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt) |
| DP821 | Ch 1: 0V – 60V Ch 2 : 0V – 8V Ch 3 : N/A | Ch 1: 1A Ch 2: 10A Ch 3: N/A | Bench / Rack (Opt) | USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt) |
| DP821A | Ch 1: 0V – 60V Ch 2 : 0V – 8V Ch 3 : N/A | Ch 1: 1A Ch 2: 10A Ch 3: N/A | Bench / Rack (Opt) | USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt) |
| DP831 | Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V | Ch 1: 5A Ch 2: 2A Ch 3: 2A | Bench / Rack (Opt) | USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt) |
| DP831A | Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V | Ch 1: 5A Ch 2: 2A Ch 3: 2A | Bench / Rack (Opt) | USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt) |
| DP832 | Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V | Ch 1: 3A Ch 2: 3A Ch 3: 3A | Bench / Rack (Opt) | USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt) |
| DP832A | Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V | Ch 1: 3A Ch 2: 3A Ch 3: 3A | Bench / Rack (Opt) | USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt) |
Product Images
Product Videos
Rigol DP800 User Guide
Steve C –
Great PSU – Excellent dealer service
I have wanted the Rigol DP832A for quite some time but was concerned at the inadequate cooling in the early models of the LM317 voltage regulator. Knowing that the revised boards were now coming on stream I decided to take the plunge and was more than surprised and impressed with the help offered by Telonic systems who were totally up front about the issues and were more than happy to help me get exactly the machine I wanted with the revised board and also the larger heatsink. First rate service – sincere thanks!
The PSU is an excellent piece of equipment – performs very well, does not suffer from undue noise and the output settings are absolutely correct as measured with my accurate Agilent 34461A. I find the user interface easy to work with and the info on the LCD screen very helpful. Well built equipment that will be a pleasure to use for years to come I am sure.
