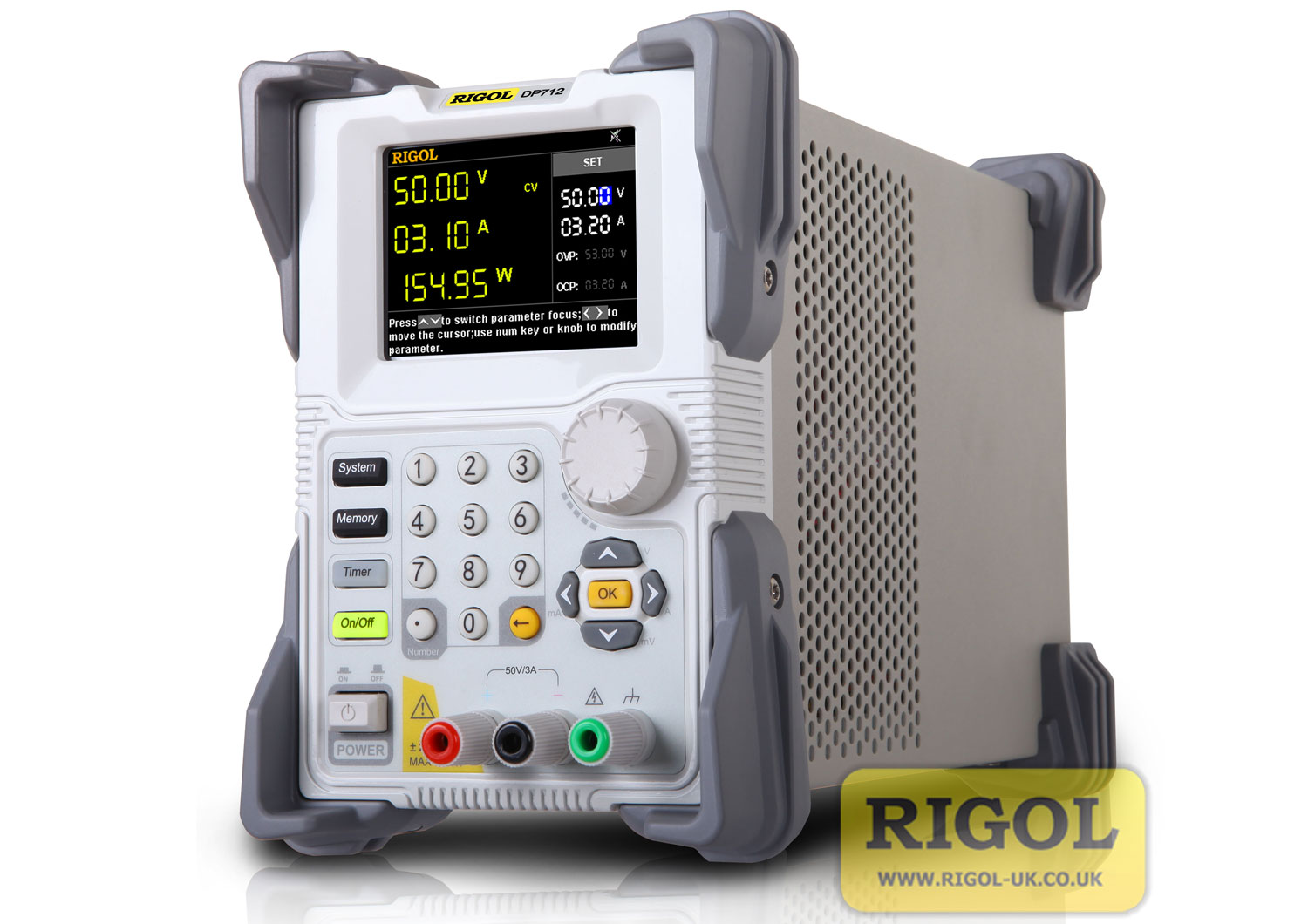

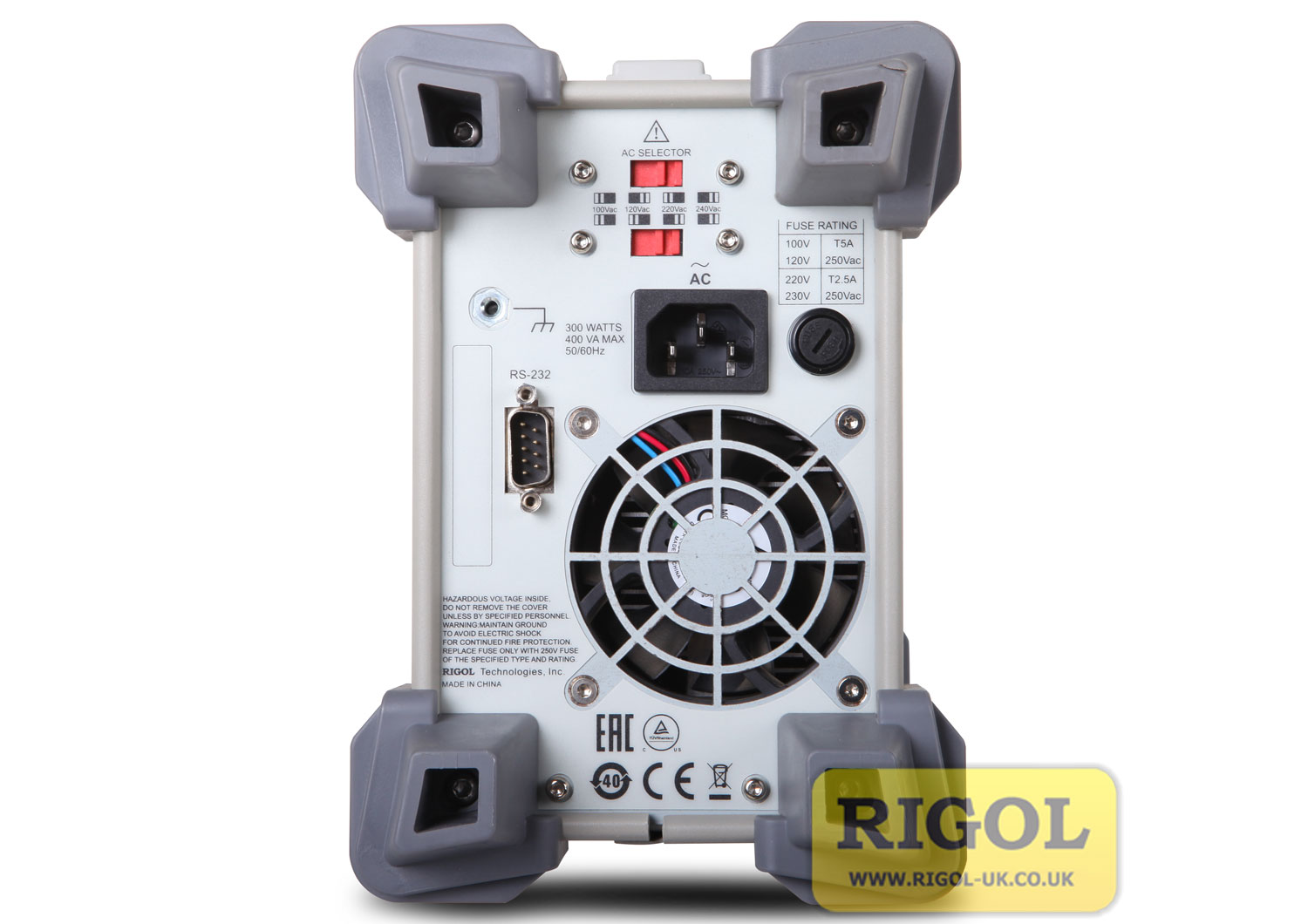

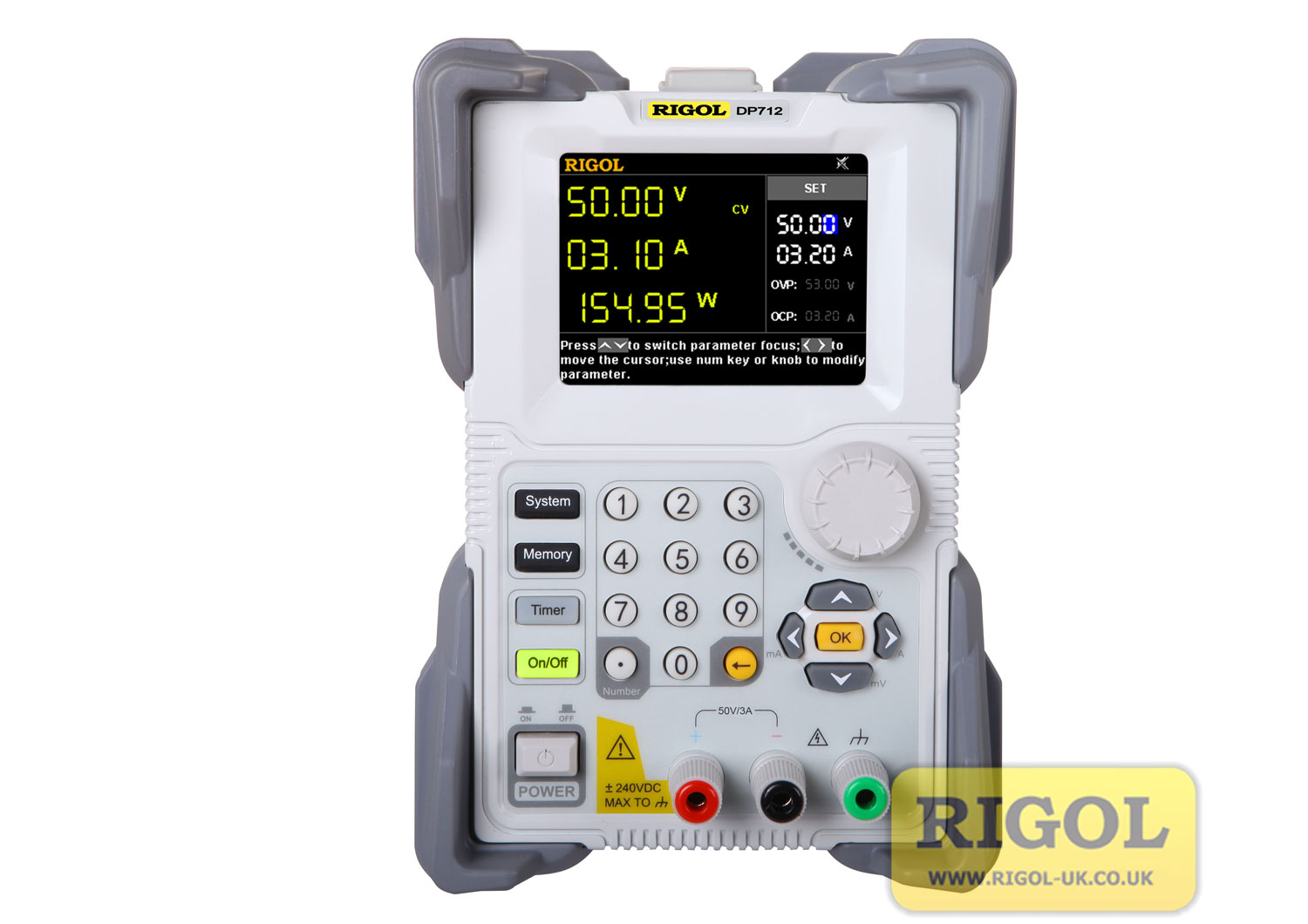

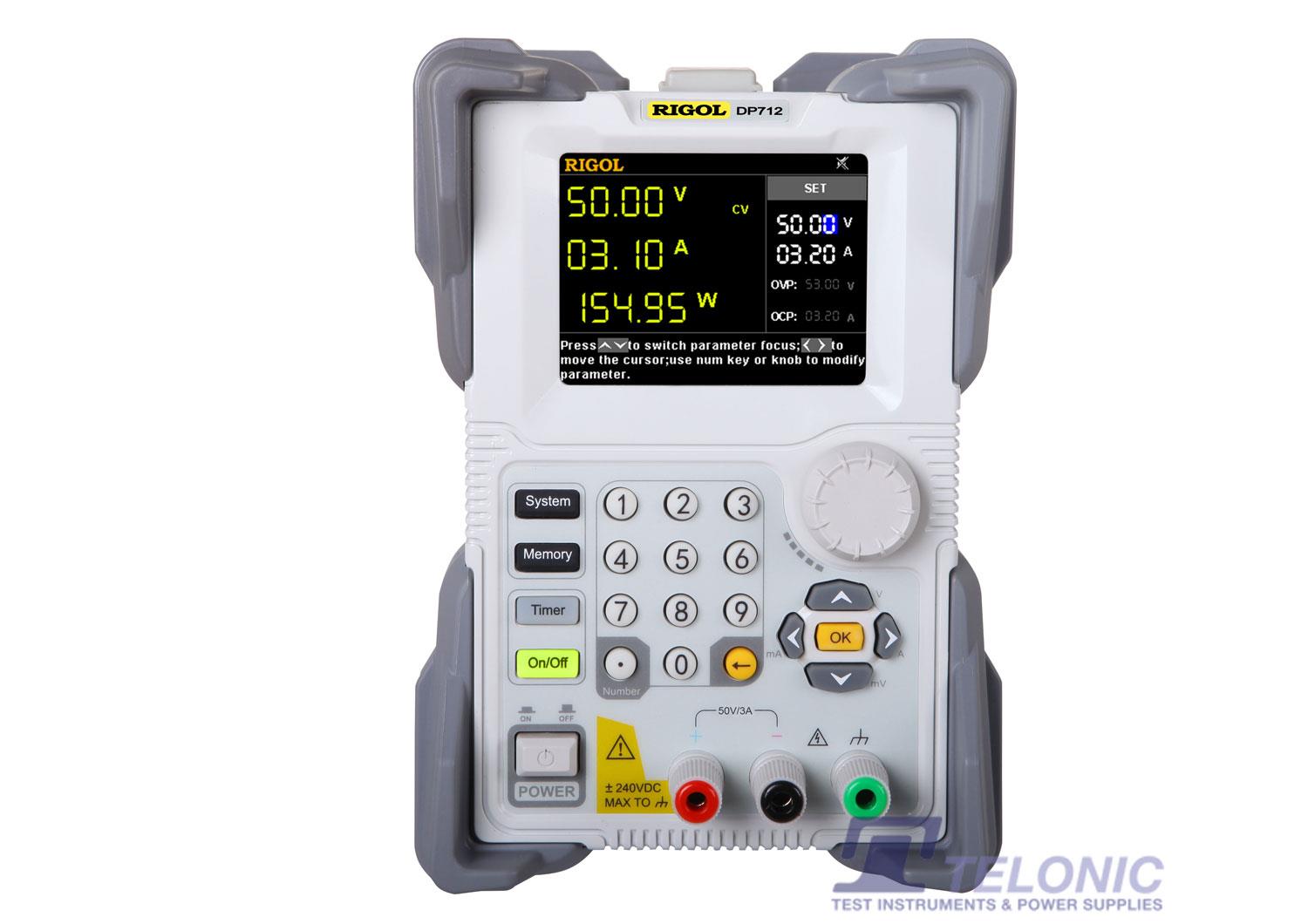

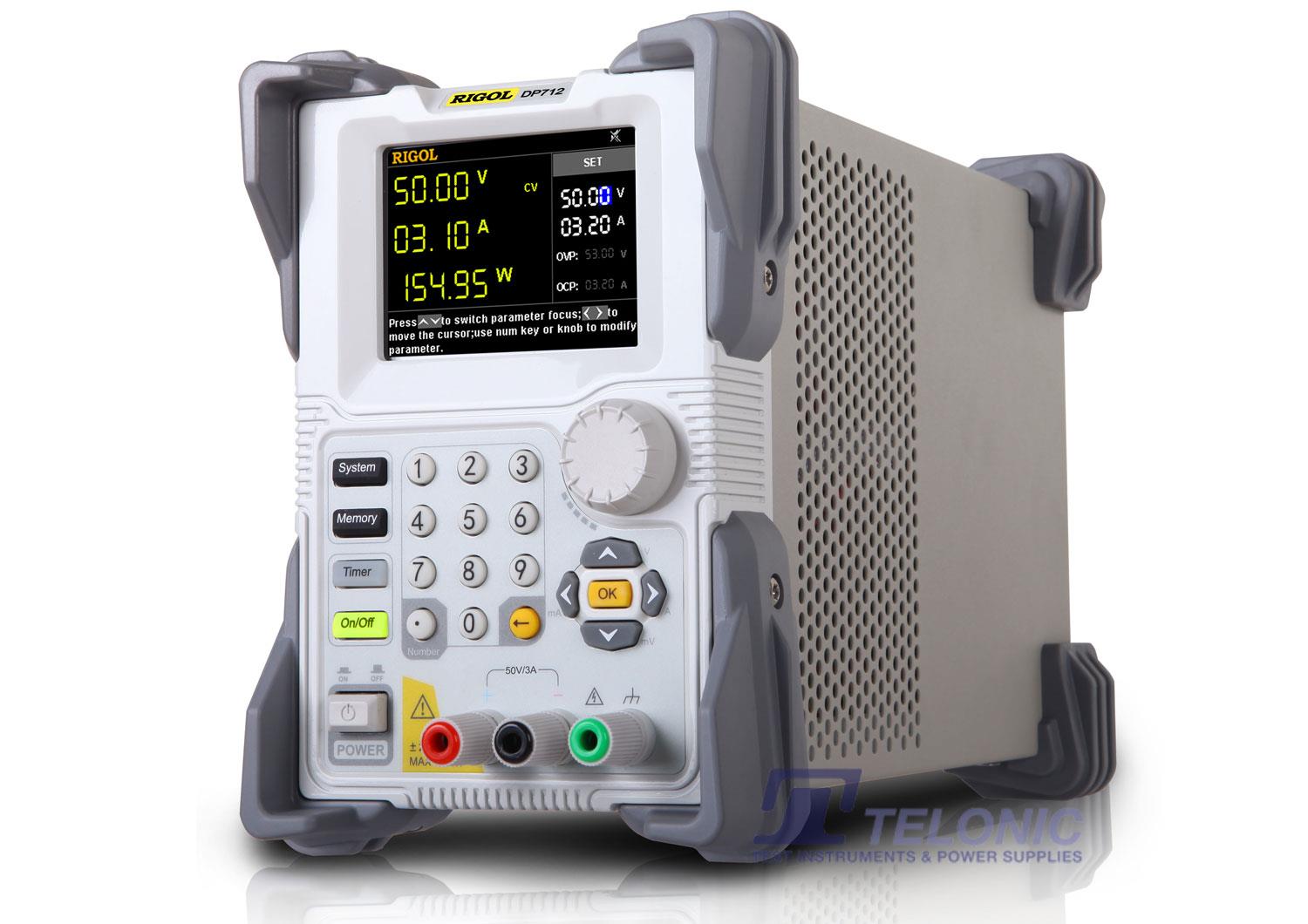

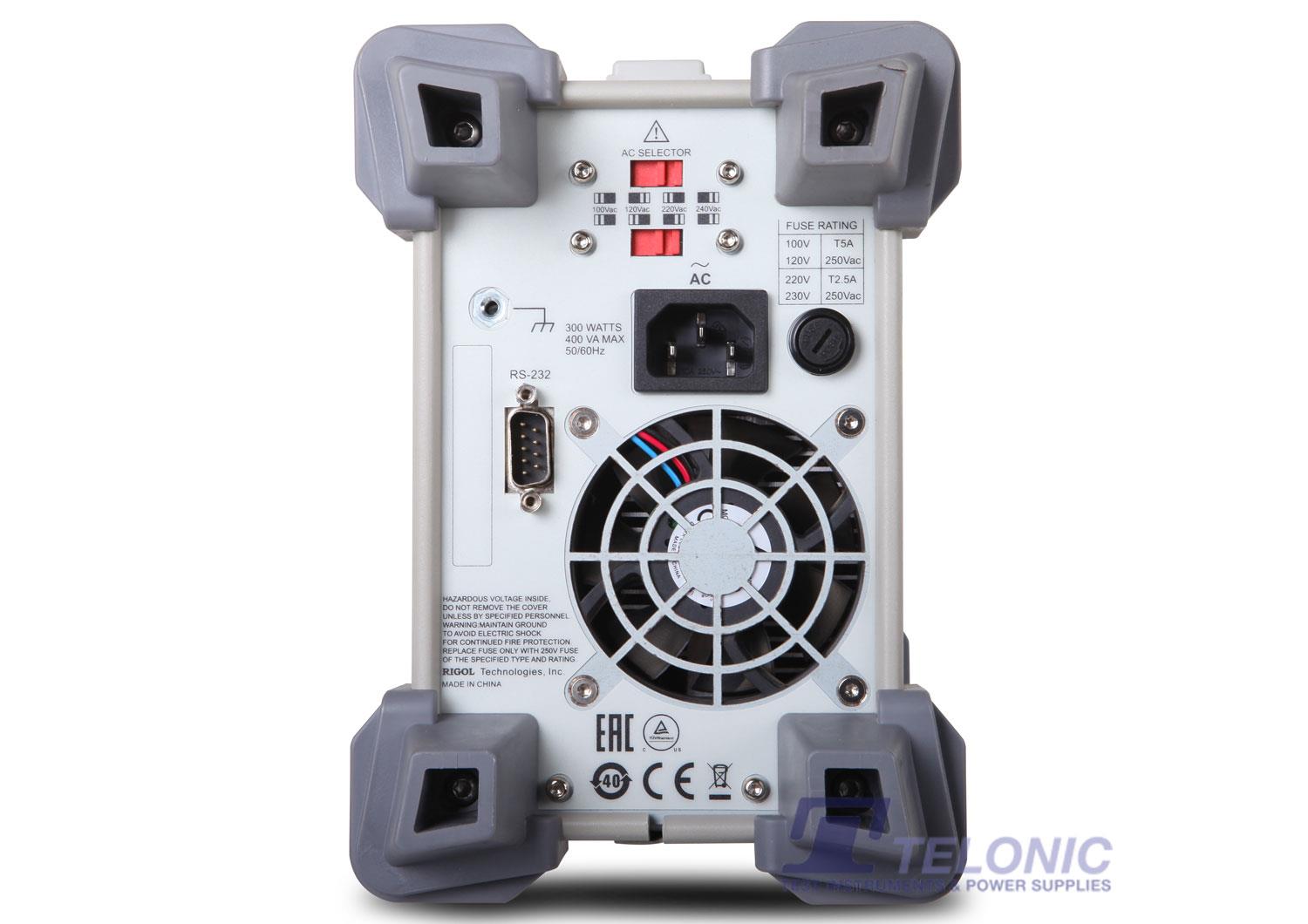

Rigol DP712 Bench Linear DC Power Supply

The DP712 is a Single Output 50V, 3A, 150W DC Power Supply. Ideal for the hobbyist, educational establishments and businesses alike – The Rigol DP700 series power supplies are affordable, high performance, programmable linear DC power supplies. Superb performance specifications, pure and reliable output, clear user interface – The DP700 series supports timing output, trigger function and provides a remote communication interface, enabling you to meet your diversified test requirements.

Features:

  • Single output, 50V/3A, total power up to 150W
  • Low ripple and noise, <500μVrms / 3mVpp; <2mArms
  • Excellent load regulation and line regulation, <0.01% + 2mV; <0.01% + 2mA
  • Fast transient response time, <50 μs
  • 1 mV / 1mA resolution (optional)
  • Over-voltage and over-current protection
  • Over-temperature protection
  • External trigger function supported, enabling synchronous output for multiple devices
  • Timing output supported (10 ms to 99,999 s) for up to 2,048 groups
  • 3.5″ TFT-LCD display
  • Front panel locking and any specified key locking supported
  • Connectivity… RS232
  • Supplied with… power cable, spare fuse, quick guide
  • Options include… High resolution, trigger (external synchronous trigger input and output), rack mount kit (single instrument), rack mount kit (two instruments), rack mount kit (three instruments)

Product Images

Documentation

DC Output (0°C to 40°C)
ModelDP711DP712
Voltage/Current Rating0 V to 30 V/0 A to 5 A0 V to 50 V/0 A to 3 A
OVP/OCP0.01 V to 33 V/0.01 A to 5.5 A0.01 V to 55 V/0.01 A to 3.3 A
Load Regulation, ±(% of Output + Offset)
Voltage<0.01% + 2 mV<0.01% + 2 mV
Current<0.01% + 2 mA<0.01% + 2 mA
Line Regulation, ±(% of Output + Offset)
Voltage<0.01% + 2 mV<0.01% + 2 mV
Current<0.01% + 2 mA<0.01% + 2 mA
Ripple and Noise (20 Hz to 20 MHz)
Normal Mode Voltage<500 μVrms/3 mVpp<500 μVrms/4 mVpp
Normal Mode Current<2 mArms<2 mArms
Annual Accuracy (25°C ± 5°C), ±(% of Output + Offset)
Programming
Voltage0.05% + 20 mV0.05% + 20 mV
Current0.2% + 20 mA0.2% + 20 mA
Readback
Voltage0.05% + 20 mV0.05% + 20 mV
Current0.2% + 20 mA0.2% + 20 mA
Resolution
Programming
VoltageStandard: 10 mV
High resolution option installed: 1 mV		Standard: 10 mV
High resolution option installed: 1 mV
CurrentStandard: 10 mA
High resolution option installed: 1 mA		Standard: 10 mA
High resolution option installed: 1 mA
Readback
VoltageStandard: 10 mV
High resolution option installed: 1 mV		Standard: 10 mV
High resolution option installed: 1 mV
CurrentStandard: 10 mA
High resolution option installed: 1 mA		Standard: 10 mA
High resolution option installed: 1 mA
Display
VoltageStandard: 10 mV
High resolution option installed: 1 mV		Standard: 10 mV
High resolution option installed: 1 mV
CurrentStandard: 10 mA
High resolution option installed: 1 mA		Standard: 10 mA
High resolution option installed: 1 mA
Transient Response Time
Transient Response TimeLess than 50 μs for output voltage to recover to within 15 mV following a change in output current from full load to half load (or from
half load to full load).		Less than 50 μs for output voltage to recover to within 15 mV following a change in output current from full load to half load (or from
half load to full load).

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
