Rigol DM3068 6½ Digit Digital Multimeter

Name: Rigol DM3068 6½ Digit Digital Multimeter
SKU: DM3068
Price: 598.00 GBP
Availability: InStock
Rating: 4.60 (5 reviews)

Rated 4.60 out of 5 based on 5 customer ratings

(5 customer reviews)

£598.00 (£717.60 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Request Demo SKU: DM3068 Categories: Digital Multimeters / Data Acquisition Systems, Rigol DM3068 Multimeter

Description

Rigol DM3068 Digital Multimeter

The Rigol DM3068 is a 6½ digit, multifunctional DMM designed for high-precision measurements. It possesses a combination of basic measurement functions, maths functions and a sensor measurement function. The 256 x 64 lattice high resolution monochrome LCD display, clear keyboard layout and built-in help facility make the DM3058E simple to use. Remote operation is possible via a choice of communications interfaces.

Features:

6½ digit resolution
0.0035% DC voltage accuracy
Various measurement speeds up to 10,000 readings/s
Double display function – Displays 2 measurements at once
DCV, DCI, ACV, ACI
Resistance (2 or 4 wire), capacitance, frequency, continuity and diode test
Sensor measurement function – Built-in thermocouple compensation
Supports 3 types of temperature sensor – TC, RTD & THERM
Various maths operations – Max, min, average, P/F, dBm, dB, relative measurement, standard deviation
Displays real-time trend graph and histogram
Internal memory stores up to 10-off system configurations & 5-off groups of sensor configurations
Supports the storage of configuration and data via USB flash device

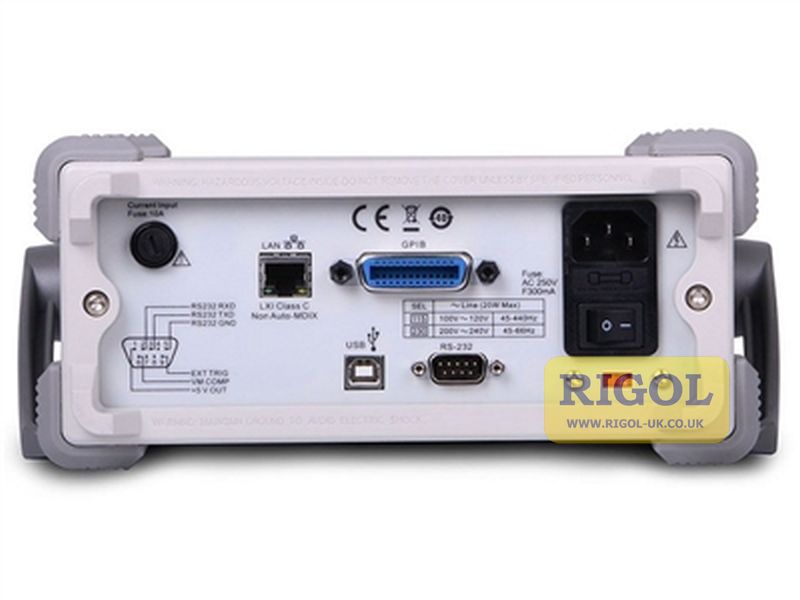

Supports USB Device, USB Host, GPIB, RS232 & LAN
Supports Agilent 34401A and Fluke 45 command sets
Built-in Help system
Supplied with… Two test leads, two alligator clips, four spare fuses, USB cable, UK & European mains leads, quick guide
Options include… Rack mount kit, Kelvin test clips, RCL 17025 Calibration

Product Images

Histogram Display

Double Screen Display

Capacitance Test Function

True 6.5 Bits Multimeter

Trend Chart Display

Supports a Variety of Temperature Sensors

Support Any Sensor Measurement

Statistical analysis function

Product Videos

Standard Hardware Accessories

Rigol ALLIGATORCLIP-DMM Alligator Clips (1-off Black & 1-off Red)
£
Rigol LD-DM Test Leads (1-off Black & 1-off Red)
£
UK Power Cord
£0
USB Data Cable
£0

Optional Software Accessories

Rigol Ultra View PC Software Licence
£199.5

Optional Hardware Accessories

Documentation

DC Characteristics

Function	Range	Test Current or Burden Voltage	1 Year 23°C ± 5°C	Temperature Coefficient 0°C to 18°C 28°C to 50°C
DC Voltage	200.000mV		0.015 + 0.004	0.0015 + 0.0005
	2.00000V		0.015 + 0.003	0.0010 + 0.0005
	20.0000V		0.015 + 0.004	0.0020 + 0.0005
	200.000V		0.015 + 0.003	0.0015 + 0.0005
	1000.00V		0.015 + 0.003	0.0015 + 0.0005
DC Current	200.000μA	<8mV	0.055 + 0.005	0.003 + 0.001
	2.00000mA	<80mV	0.055 + 0.005	0.002 + 0.001
	20.0000mA	<0.05V	0.095 + 0.020	0.008 + 0.001
	200.000mA	<0.5V	0.070 + 0.008	0.005 + 0.001
	2.00000A	<0.1V	0.170 + 0.020	0.013 + 0.001
	10.0000A	<0.3V	0.250 + 0.010	0.008 + 0.001
Resistance	200.000Ω	1mA	0.030 + 0.005	0.003 + 0.0006
	2.00000kΩ	1mA	0.020 + 0.003	0.003 + 0.0005
	20.0000kΩ	100μA	0.020 + 0.003	0.003 + 0.0005
	200.000kΩ	10μA	0.020 + 0.003	0.003 + 0.0005
	2.00000MΩ	1μA	0.040 + 0.004	0.004 + 0.0005
	10.0000MΩ	200nA	0.250 + 0.003	0.010 + 0.0005
	100.000MΩ	200nA / 10MΩ	1.750 + 0.004	0.200 + 0.0005
Diode Test	2.0000V	1mA	0.05 + 0.01	0.005 + 0.0005
Continuity Test	2000Ω	1mA	0.05 + 0.01	0.005 + 0.0005

AC Characteristics

Function	Range	Test Current or Burden Voltage	1 Year 23°C ± 5°C	Temperature Coefficient 0°C to 18°C 28°C to 50°C
True RMS AC Voltage	200.000mV	20Hz – 45Hz 45Hz – 20kHz 20kHz – 50kHz 50kHz – 100kHz	1.5 + 0.10 0.2 + 0.05 1.0 + 0.05 3.0 + 0.05	0.01 + 0.005 0.01 + 0.005 0.01 + 0.005 0.05 + 0.010
	2.00000V	20Hz – 45Hz 45Hz – 20kHz 20kHz – 50kHz 50kHz – 100kHz	1.5 + 0.10 0.2 + 0.05 1.0 + 0.05 3.0 + 0.05	0.01 + 0.005 0.01 + 0.005 0.01 + 0.005 0.05 + 0.010
	20.0000V	20Hz – 45Hz 45Hz – 20kHz 20kHz – 50kHz 50kHz – 100kHz	1.5 + 0.10 0.2 + 0.05 1.0 + 0.05 3.0 + 0.05	0.01 + 0.005 0.01 + 0.005 0.01 + 0.005 0.05 + 0.010
	200.000V	20Hz – 45Hz 45Hz – 20kHz 20kHz – 50kHz 50kHz – 100kHz	1.5 + 0.10 0.2 + 0.05 1.0 + 0.05 3.0 + 0.05	0.01 + 0.005 0.01 + 0.005 0.01 + 0.005 0.05 + 0.010
	750.000V	20Hz – 45Hz 45Hz – 20kHz 20kHz – 50kHz 50kHz – 100kHz	1.5 + 0.10 0.2 + 0.05 1.0 + 0.05 3.0 + 0.05	0.01 + 0.005 0.01 + 0.005 0.01 + 0.005 0.05 + 0.010
True RMS AC Current	20.0000mA	20Hz – 45Hz 45Hz – 2kHz 2kHz – 10kHz	1.5 + 0.10 0.5 + 0.10 2.5+ 0.20	0.015 + 0.015 0.015 + 0.006 0.015 + 0.006
	200.000mA	20Hz – 45Hz 45Hz – 2kHz 2kHz – 10kHz	1.5 + 0.10 0.3 + 0.10 2.5+ 0.20	0.015 + 0.005 0.015 + 0.005 0.015 + 0.005
	2.00000A	20Hz – 45Hz 45Hz – 2kHz 2kHz – 10kHz	1.5 + 0.20 0.5 + 0.20 2.5+ 0.20	0.015 + 0.005 0.015 + 0.005 0.015 + 0.005
	10.0000A	20Hz – 45Hz 45Hz – 2kHz 2kHz – 5kHz	1.5 + 0.15 0.5 + 0.15 2.5+ 0.20	0.015 + 0.005 0.015 + 0.005 0.015 + 0.005

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

5 reviews for Rigol DM3068 6½ Digit Digital Multimeter

Rated 5 out of 5
Steve J – February 5, 2020
Purchase of Rigol DM3068
Excellent service from very helpful staff. Would happily do business again.
Rated 5 out of 5
Brian B – April 17, 2016
Fantstic Service
Purchased on 2 seperate occasions a
Rigol DM3068
Rigol DP382
Both items are excellent, Very accurate and very well built. The service from Purchase to delivery was Very smooth and next day delivery and i received a free test meter with each purchase.
Look forward to dealing with Teleconic again in the future….MANY THANKS GUYS
Rated 5 out of 5
Ian W – October 22, 2015
Recent Purchase
Excellent service ordered unit on a Friday and delivered on Monday. Everything went very smoothly
Rated 5 out of 5
Hopski – October 3, 2015
Feature Packed!
Brilliant multimeter. Feature Packed. Arrived in a day. Great Service from Telonic!
Rated 3 out of 5
Peter – August 11, 2015
DM3068 Quick review
Good value; Very quiet fan; Stabilises quickly on power up; Sturdy case; Very easy to use as a stand-alone meter (I don’t need the PC interface).
Flaws:
* No digital filter, and the 2 second integration time can’t cope with noisy inputs. A good filter is essential on a high resolution meter. My old Thurlby 1906 had a great programmable digital filter, and Rigol should do something similar.
* No setup memory, so It reverts to default settings on power up (Unless you leave it on standby).
* The display is bright and clear when viewed head-on, but if the meter is flat on a bench and you are looking down on it, the display is hard to read.
I would have given it 5 stars if it had a proper input filter.
Telonic Comment: Please note: The digital filter used in the Thurlby 1906 to calculate an average reading has only 10 possible settings. The integration time in the Rigol DM3068 can be set from 100us to 1s. Please refer to page 2-41 in the User Guide. Furthermore, the DM3068 has internal storage for up to 10-off user set-ups. Please refer to page 2-65 in the User Guide. Thank you for your review.
