Rigol DM3058E 5½ Digit Digital Multimeter, Resale Unit, as New Condition, 10% Discount, 2 Years Warranty

Original price was: £359.00.Current price is: £323.10. (£387.72 inc VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: DM3058E-Resale Categories: , , ,

Description


Rigol DM3058E Digital Multimeter – Resale Unit, as New Condition, 10% Discount, 2 Years Warranty

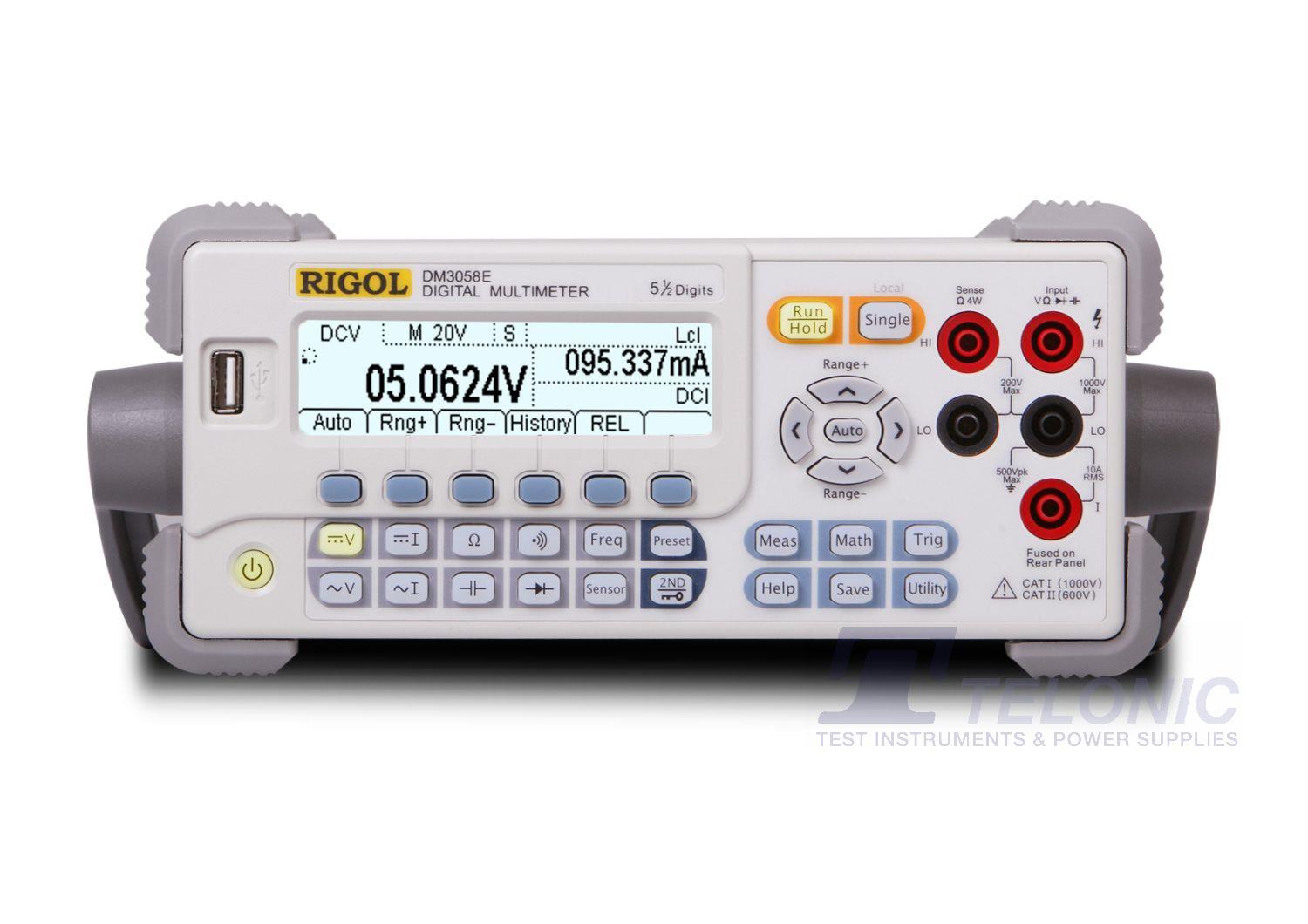

The Rigol DM3058E is a 5½ digit, multifunctional DMM designed for high-precision measurements. It possesses a combination of basic measurement functions, maths functions and a sensor measurement function. The 256 x 64 lattice high resolution monochrome LCD display, clear keyboard layout and built-in help facility make the DM3058E simple to use. Remote operation is possible via a choice of communications interfaces.

Features:

  • 5½ digit resolution
  • Three measurement speeds – 2.5 readings/s, 20 readings/s, 123 readings/s
  • Double display function – Displays 2 measurements at once
  • DCV, DCI, ACV, ACI
  • Resistance (2 or 4 wire), capacitance, frequency, continuity and diode test
  • Sensor measurement function – Built-in thermocouple compensation
  • Various maths operations – Max, min, average, P/F, dBm, dB, relative measurement, standard deviation & histogram
  • Internal memory stores up to 10-off configurations
  • Supports the storage of configuration and data via USB flash device

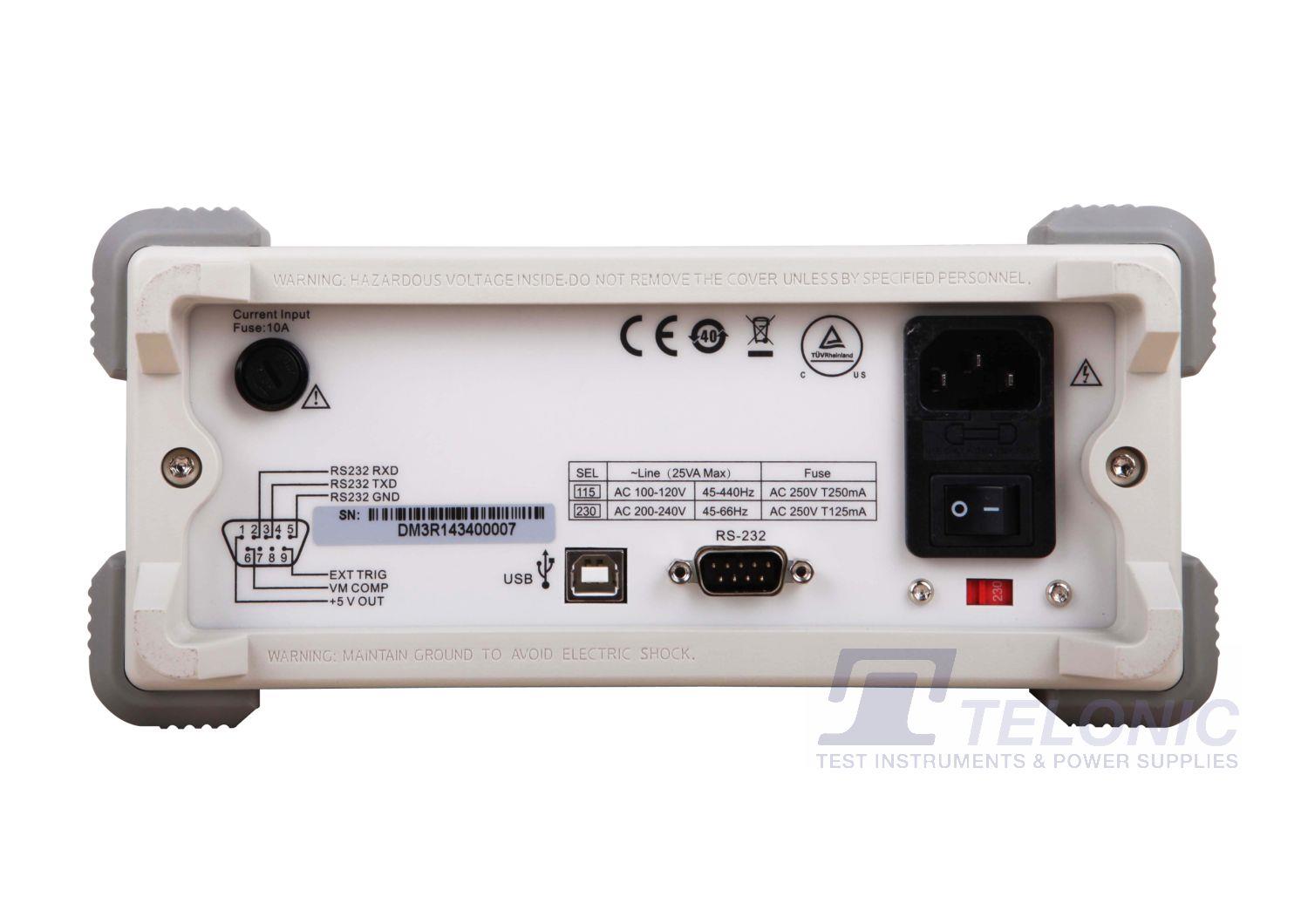

  • Supports USB and RS-232
  • DM3058 supports LAN and GPIB also (not DM3058E)
  • Built-in Help system
  • Supplied with… Two test leads, two alligator clips, four spare fuses, USB cable, UK & European mains leads, quick guide
  • Optional UltraView PC software… Remote control via a virtual front panel plus various data monitor, record & analysis functions
  • Other options include… Rack mount kit, Kelvin test clips, RCL Standard Calibration, RCL 17025 Calibration

Rigol DM3000 Digital Multimeter Comparison Table

ModelDisplayDC Voltage AccuracyMeasurement SpeedsSingle Trigger SamplesInternal Measurement MemoryDual Display ModeMaths Functions and StatsTrend and Histogram DisplayConnectivity
DM3058E5 1/2 Digit150ppm25, 20, 1231 to 2,00010 x 2,000StandardStandardStandardUSB, RS232
DM30585 1/2 Digit150ppm25, 20, 1231 to 2,00010 x 2,000StandardStandardStandardUSB, RS232, GPIB, LAN
DM30686 1/2 Digit35ppm0.5, 5, 25, 50, 250, 833, 2500, 100001 to 50,00010 x 5,000StandardStandardStandardUSB, RS232, GPIB, LAN

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation


DC Characteristics

FunctionRangeTest Current or Burden Voltage1 Year 23°C ± 5°CTemperature Coefficient
0°C to 18°C
28°C to 50°C
DC Voltage200.000mV0.015 + 0.0040.0015 + 0.0005
2.00000V0.015 + 0.0030.0010 + 0.0005
20.0000V0.015 + 0.0040.0020 + 0.0005
200.000V0.015 + 0.0030.0015 + 0.0005
1000.00V0.015 + 0.0030.0015 + 0.0005
DC Current200.000μA<8mV0.055 + 0.0050.003 + 0.001
2.00000mA<80mV0.055 + 0.0050.002 + 0.001
20.0000mA<0.05V0.095 + 0.0200.008 + 0.001
200.000mA<0.5V0.070 + 0.0080.005 + 0.001
2.00000A<0.1V0.170 + 0.0200.013 + 0.001
10.0000A<0.3V0.250 + 0.0100.008 + 0.001
Resistance200.000Ω1mA0.030 + 0.0050.003 + 0.0006
2.00000kΩ1mA0.020 + 0.0030.003 + 0.0005
20.0000kΩ100μA0.020 + 0.0030.003 + 0.0005
200.000kΩ10μA0.020 + 0.0030.003 + 0.0005
2.00000MΩ1μA0.040 + 0.0040.004 + 0.0005
10.0000MΩ200nA0.250 + 0.0030.010 + 0.0005
100.000MΩ200nA / 10MΩ1.750 + 0.0040.200 + 0.0005
Diode Test2.0000V1mA0.05 + 0.010.005 + 0.0005
Continuity Test2000Ω1mA0.05 + 0.010.005 + 0.0005

AC Characteristics

FunctionRangeTest Current or Burden Voltage1 Year 23°C ± 5°CTemperature Coefficient
0°C to 18°C
28°C to 50°C
True RMS AC Voltage200.000mV20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
2.00000V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
20.0000V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
200.000V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
750.000V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
True RMS AC Current20.0000mA20Hz – 45Hz
45Hz – 2kHz
2kHz – 10kHz		1.5 + 0.10
0.5 + 0.10
2.5+ 0.20		0.015 + 0.015
0.015 + 0.006
0.015 + 0.006
200.000mA20Hz – 45Hz
45Hz – 2kHz
2kHz – 10kHz		1.5 + 0.10
0.3 + 0.10
2.5+ 0.20		0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
2.00000A20Hz – 45Hz
45Hz – 2kHz
2kHz – 10kHz		1.5 + 0.20
0.5 + 0.20
2.5+ 0.20		0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
10.0000A20Hz – 45Hz
45Hz – 2kHz
2kHz – 5kHz		1.5 + 0.15
0.5 + 0.15
2.5+ 0.20		0.015 + 0.005
0.015 + 0.005
0.015 + 0.005

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
