Rigol DL3031A Programmable DC Electronic Load
Rigol DL3031A Programmable DC Electronic Load

Rigol DL3031A Programmable DC Electronic Load

£978.00 (£1173.60 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: DL3031A Categories: ,

Description

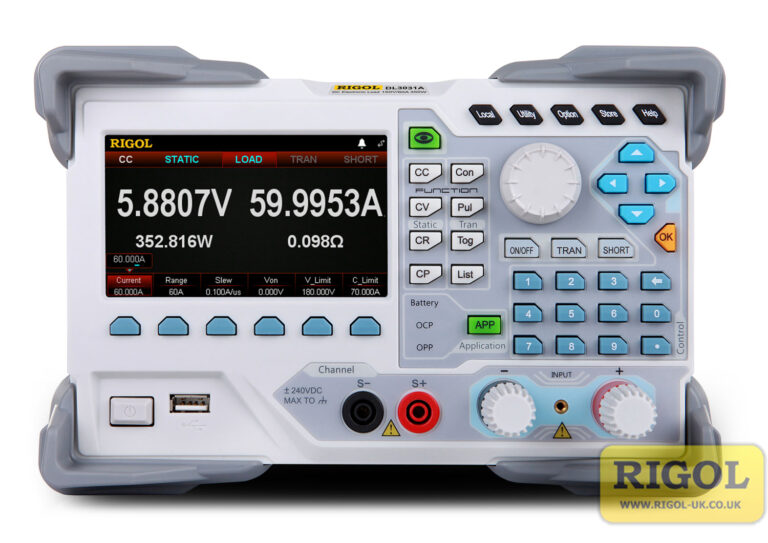

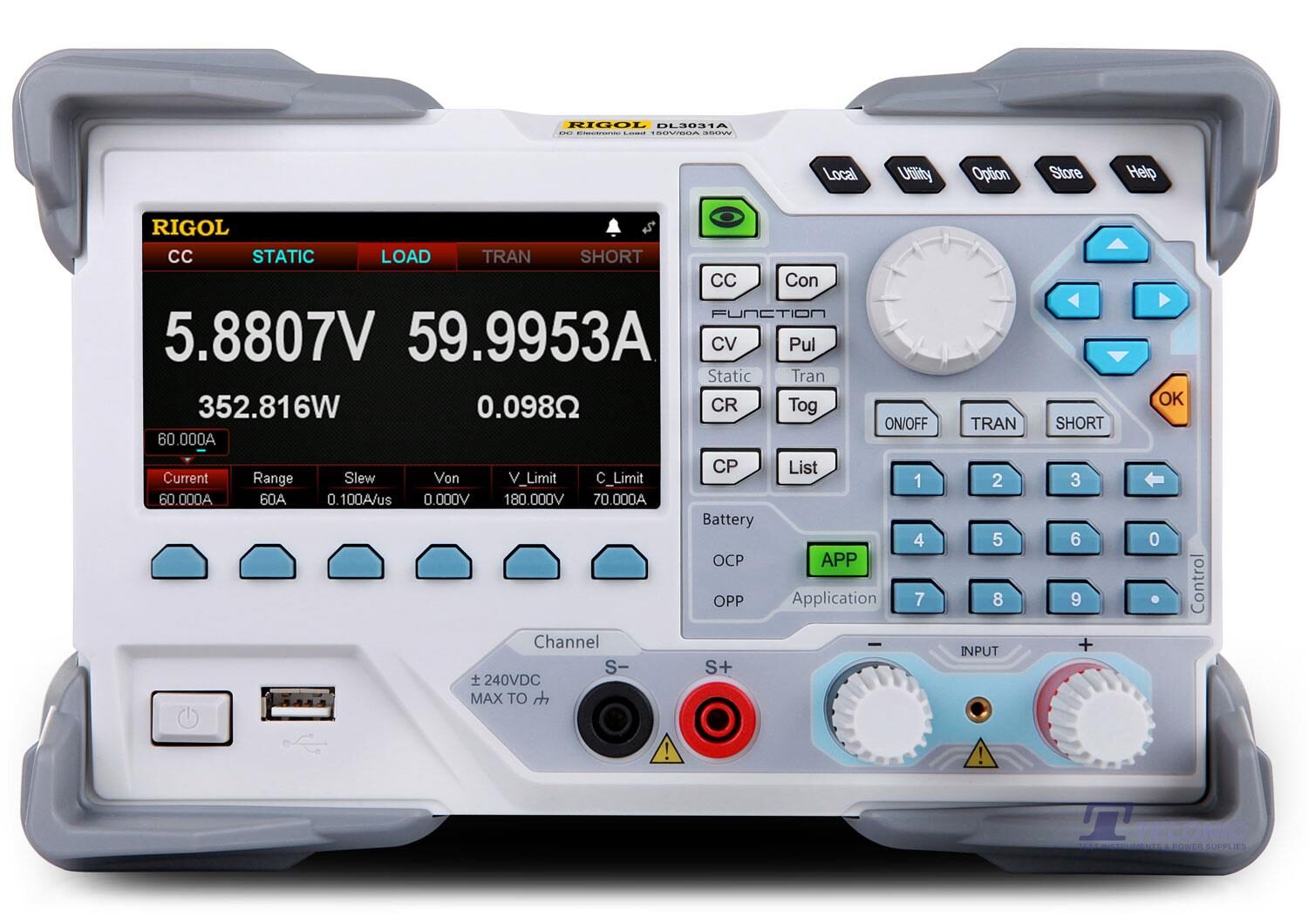

Rigol DL3031A DC Electronic Load

The DL3031A is a Single Input, 150V, 60A, 350W DC Electronic Load. With a user-friendly interface and superb performance specifications, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells.

Features:

  • Single input, 150V / 60A, total power up to 350W
  • Dynamic mode: Up to 15kHz (DL3031), Up to 30kHz (DL3031A)
  • Adjustable current rising speed: 0.001A/μs to 2.5A/μs (DL3031), 0.001A/μs to5A/μs (DL3031A)
  • Minimum readback resolution: (TBS)
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Over-voltage / over-current / over-power / over-temperature / reverse voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • List function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Standard communications interfaces: RS232, USB device & USB host, LAN (DL3031A), digital I/O (DL3031A)

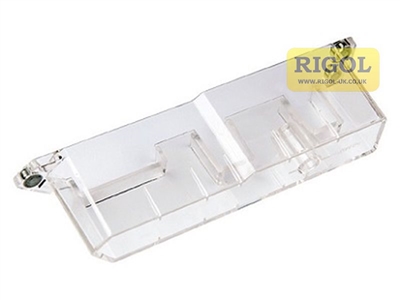

  • Supplied with… USB cable, 2x spare fuses, magnetic input terminal shield with screw, UK & European mains leads, quick guide
  • Options include… USB to GPIB module, rack mount kit (single instrument), rack mount kit (two instruments), LAN interface, digital I/O interface, high resolution option, high frequency option, high slew rate option

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

DL3000 Specifications
ModelDL3021DL3021ADL3031DL3031A
DC Input (0℃ ~40℃)
Voltage0-150V0-150V0-150V0-150V
Current0-40A0-40A0-60A0-60A
Maximum Power200W200W350W350W
Minimum Operating Voltage (DC)40A @ 1V40A @ 1V60A @ 1.3V60A @ 1.3V
CC Mode
Range0-4A0-40A0-6A0-60A
Programmable Resolution1mA1mA1mA1mA
Programmable Accuracy±(0.1%+0.1%FS)
±(0.05%+0.05%FS)		±(0.1%+0.1%FS)
±(0.05%+0.05%FS)		±(0.1%+0.1%FS)
±(0.05%+0.05%FS)		±(0.1%+0.1%FS)
±(0.05%+0.05%FS)
Temperature Coefficient100 ppm/°C100 ppm/°C100 ppm/°C100 ppm/°C
CV Mode
Range0-15V0-150V0-15V0-150V
Programmable Resolution1mV5mV1mV5mV
Programmable Accuracy±(0.05%+0.02%FS)
±(0.05%+0.025%FS)		±(0.05%+0.02%FS)
±(0.05%+0.025%FS)		±(0.05%+0.02%FS)
±(0.05%+0.025%FS)		±(0.05%+0.02%FS)
±(0.05%+0.025%FS)
Temperature Coefficient50 ppm/°C50 ppm/°C50 ppm/°C50 ppm/°C
CR Mode
Range0.08 Ω~15 Ω
(0.0667 S~12.5 S)		2 Ω~15 kΩ
(0.0000667 S~0.5 S )		0.08 Ω~15 Ω
(0.0667 S~12.5 S)		2 Ω~15 kΩ
(0.0000667 S~0.5 S )
Programmable Resolution2 mA/Vsense2 mA/Vsense2 mA/Vsense2 mA/Vsense
Programmable AccuracyVin/Rset*(0.2%)+0.2%IFSVin/Rset*(0.2%)+0.2%IFSVin/Rset*(0.2%)+0.2%IFSVin/Rset*(0.2%)+0.2%IFS
CP Mode
Range0-200W0-200W0-350W0-350W
Resolution100 mW100 mW100 mW100 mW

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
