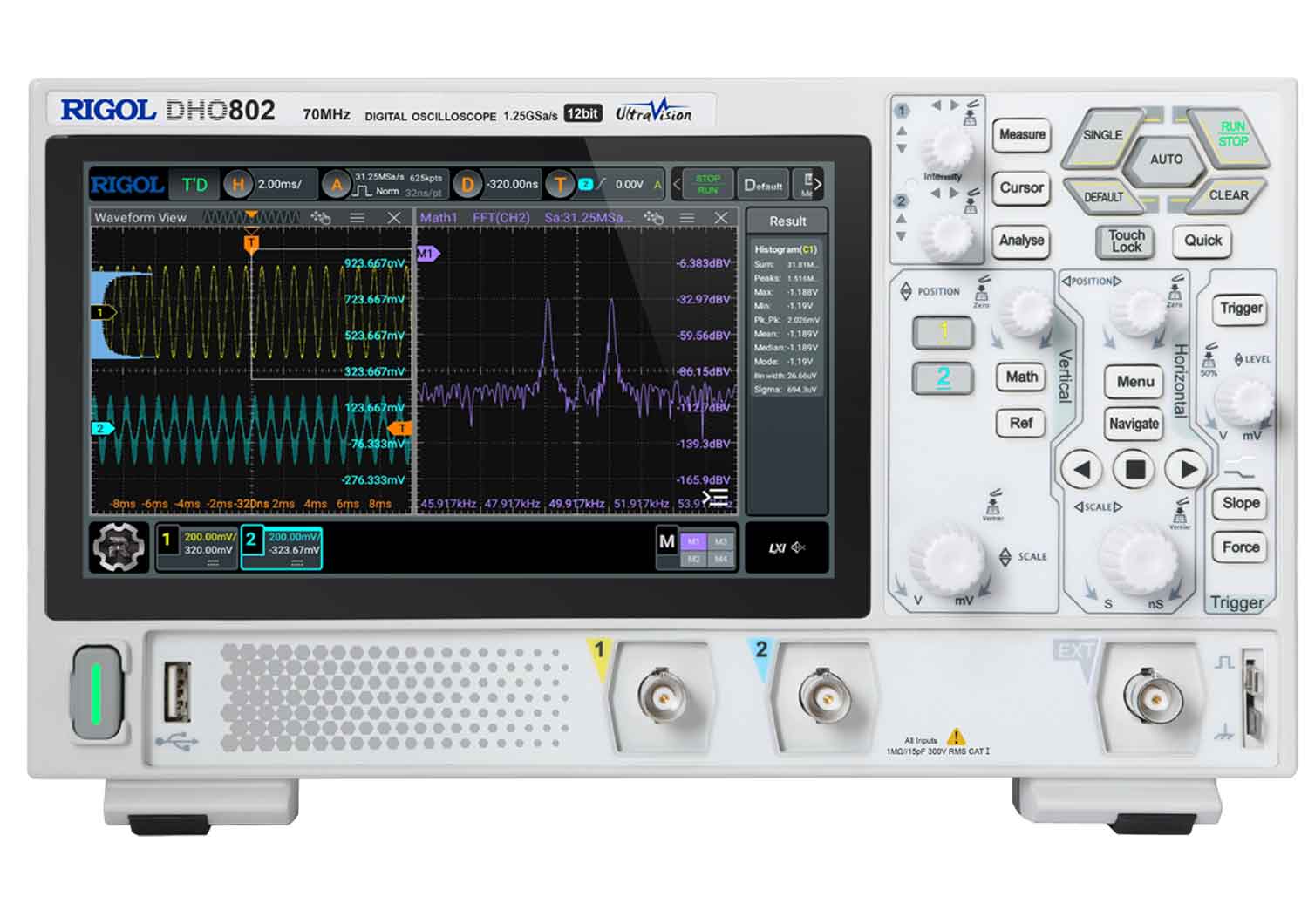

Rigol DHO802 2CH, 12Bit, 70MHz, 1.25GSa/s USB Powered Digital Oscilloscope

Description

Rigol DHO802 2CH, 12Bit, 70MHz, 1.25GSa/s USB Powered Digital Oscilloscope

The DHO800 series is RIGOL’s new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise. The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands. Several options are available (see ‘Optional Accessories’ above) to further enhance the user experience including; record and replay functions, deeper memory, advanced trigger functions, serial bus analysis, rack mount kit, Telonic standard calibration (traceable to UK national standards) and RCL 17025 calibration.

Features:

• Ultra-low noise floor, purer signal, never miss the small signals
• Up to 12 bits resolution for all the models of this series
• Max. analogue bandwidth of 100 MHz, 4 analogue channels, external trigger output (std.) available for the dual-channel model
• Max. real-time sample rate of 1.25 GSa/s
• Max. memory depth of 25 Mpts
• Vertical sensitivity range: 500 μV/div to 10 V/div
• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
• Digital phosphor display with real-time 256-level intensity grading
• Waveform search and navigation function allows you to debug the signal anomalies faster
• 7″ (1024×600) capacitive multi-touch screen
• Brand new Flex Knob brings user-friendly experience
• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
• Novel and delicate industrial design, easy to operate
• Unique online upgrade
• Options include… Soft carry bag, high-voltage probes, current probes, differential probes, rack mount kit, Telonic Standard Calibration, RCL 17025 Calibration

Rigol DHO800 Oscilloscope Comparison Table
