RIGOL DG902 Pro 70MHz Dual-Channel Function/Arbitrary Waveform Generator: High-Performance Signal Generation
The RIGOL DG902 Pro is part of the advanced DG900 Pro Series, offering a versatile range of signal generation functions packed into a single, powerful instrument. This dual-channel function/arbitrary waveform generator is designed to meet the demanding requirements of modern testing environments. With a maximum output frequency of 70 MHz, a sample rate of 1.25 GSa/s, and 16-bit vertical resolution, the DG902 Pro delivers exceptional performance in a compact form factor.
Key Specifications:
- Max Output Frequency: 70 MHz, ideal for a wide range of signal generation applications.
- Sample Rate: High 1.25 GSa/s sample rate for precise signal reproduction.
- Vertical Resolution: 16-bit vertical resolution for detailed and accurate waveform creation.
- Arbitrary Waveform Length: Supports a standard 16 Mpts/CH, with an optional upgrade to 32 Mpts/CH for extended waveform complexity.
Key Features:
- Versatile Functionality: Combines multiple functions into one device, including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, and frequency counter.
- High-Order Harmonic Generation: Built-in harmonic generator capable of generating up to the 20th harmonic, perfect for advanced signal analysis.
- Frequency Measurement: Features an independent signal frequency measurement channel with a maximum frequency of 1 GHz for precise frequency analysis.

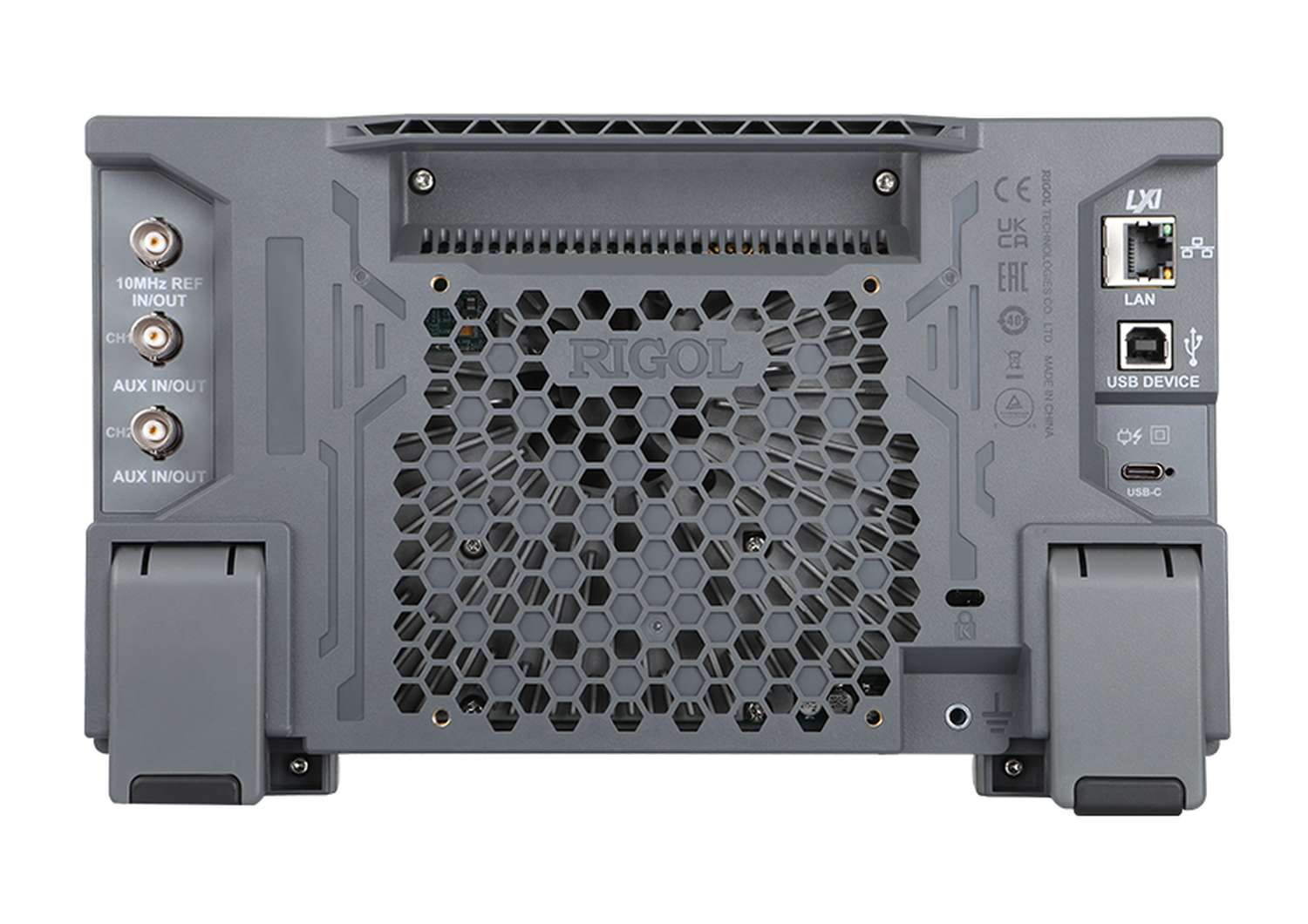

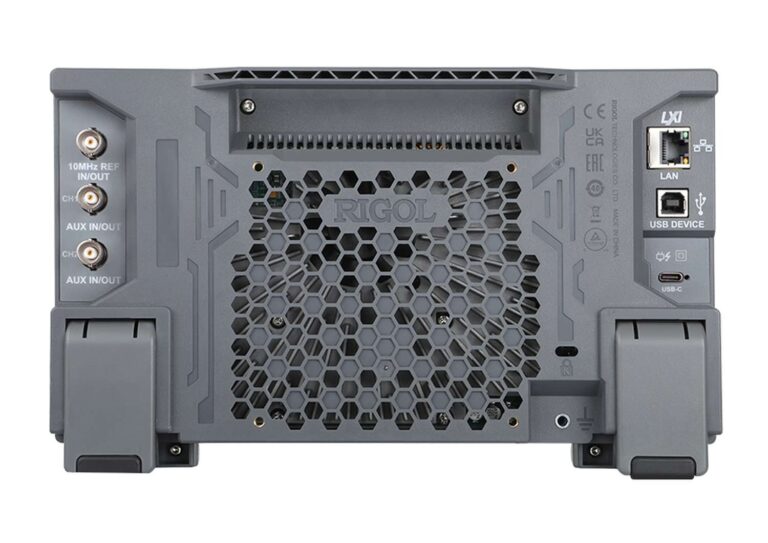

- Advanced Connectivity: Includes USB and LAN interfaces for seamless remote connection, and a Type-C power interface for field testing with a mobile power source.
- Web Control Functionality: Standard Web Control feature enables easy and efficient remote operation, facilitating collaboration and control from any location.
The RIGOL DG902 Pro function/arbitrary waveform generator is designed for professionals who require precise and flexible signal generation capabilities. With a 3 ns rise time, 16-bit vertical resolution, and extensive waveform length options, this instrument provides the performance needed for sophisticated testing and development tasks.
Rigol DG800/900 Pro Waveform Generator Comparison Table
| Model | Channels | Bandwidth | Max Sample Rate | Arb Waveform Length | Resolution |
|---|---|---|---|---|---|
| DG821 Pro | 1 | 25MHz | 625MSa/s | 2 Mpts (8Mpts Opt.) | 16Bit |
| DG822 Pro | 2 | 25MHz | 625MSa/s | 2 Mpts (8Mpts Opt.) | 16Bit |
| DG852 Pro | 2 | 50MHz | 625MSa/s | 2 Mpts (8Mpts Opt.) | 16Bit |
| DG902 Pro | 2 | 70MHz | 1.25GSa/s | 16 Mpts (32Mpts Opt.) | 16 Bit |
| DG912 Pro | 2 | 150MHz | 1.25GSa/s | 16 Mpts (32Mpts Opt.) | 16 Bit |
| DG922 Pro | 2 | 200MHz | 1.25GSa/s | 16 Mpts (32Mpts Opt.) | 16 Bit |
