Rigol DG821 25MHz Single-Channel Function / Arbitrary Waveform Generator
Rigol DG821 25MHz Single-Channel Function / Arbitrary Waveform Generator
Rigol DG821 25MHz Single-Channel Function / Arbitrary Waveform Generator

Rigol DG821 25MHz Single-Channel Function / Arbitrary Waveform Generator

£230.00 (£276.00 inc VAT)

3 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: DG821 Category:

Description


Rigol DG821 Function Generator

The DG821 is a 25MHz, 1CH Function Generator with a maximum sampling rate of 125MSa/s. The Rigol DG800 series offers a user-friendly and high-performance function/arbitrary waveform generator solution at a very attractive price. Each instrument provides many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and frequency counter. Any Rigol DG800 series function/arbitrary waveform generator would be a valuable asset in any home, business or education laboratory.

Features:

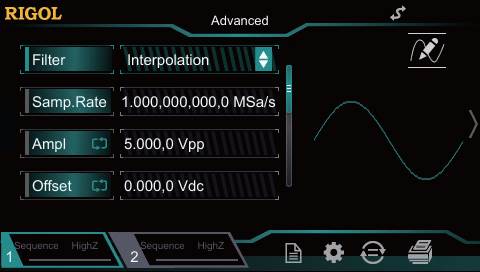

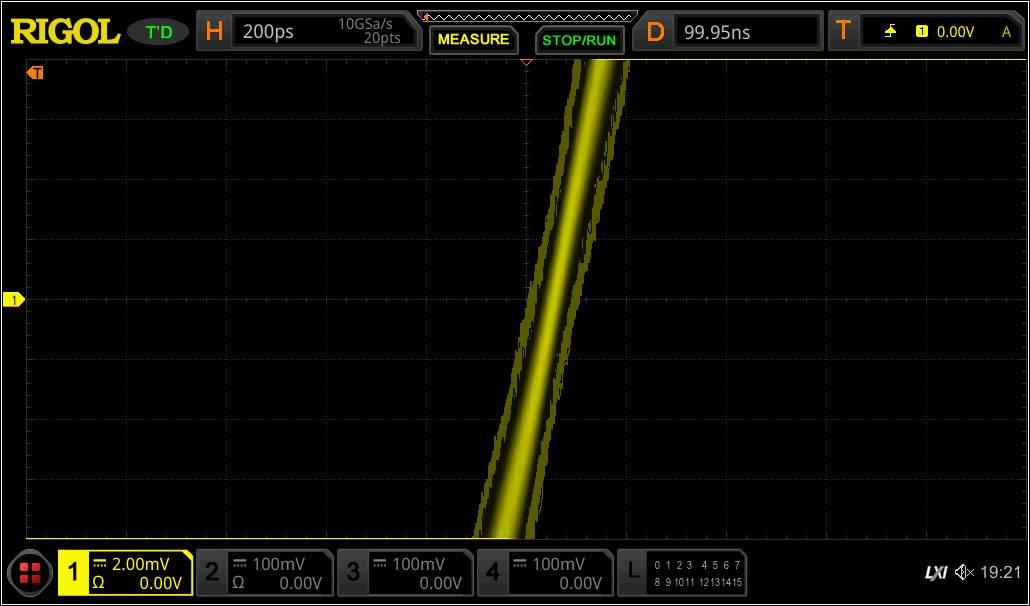

  • Unique SiFiII (Signal Fidelity II) technology
  • Two fully functional and independent channels (optional upgrade on single-channel models)
  • Maximum frequency 25MHz
  • 125MSa/s sample rate

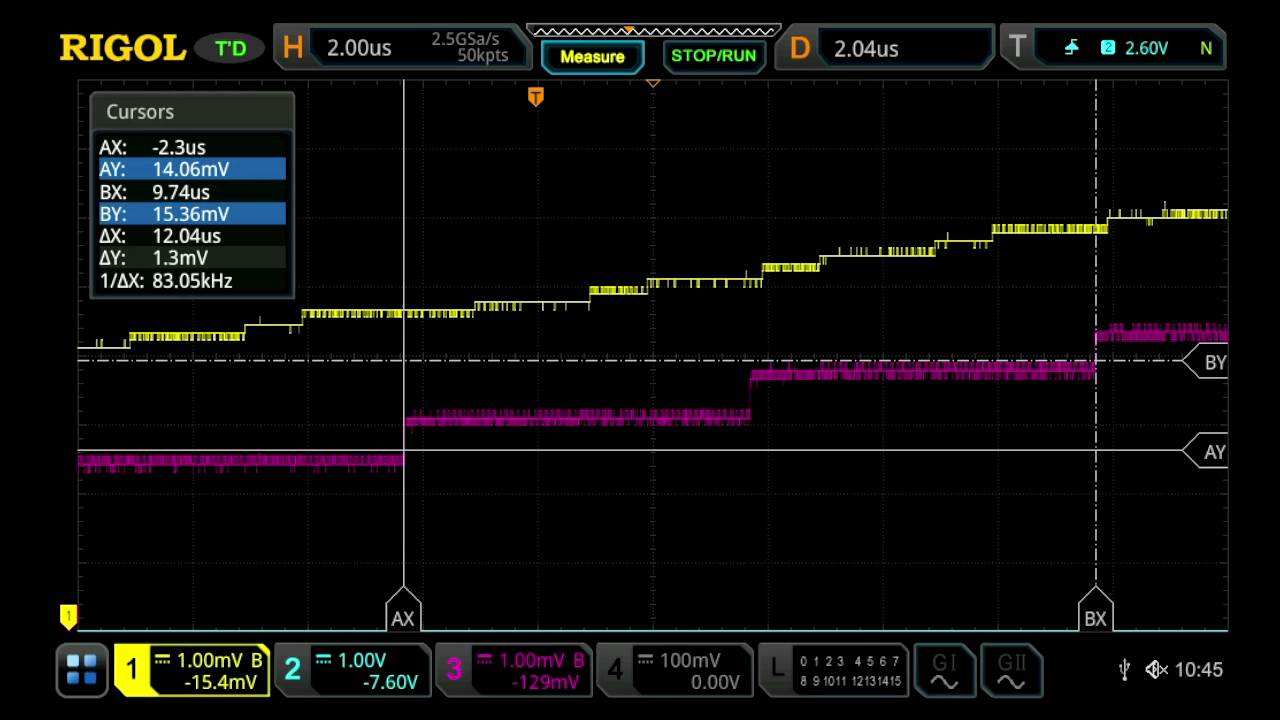

  • 16-bit vertical resolution
  • Basic waveforms: Sine, square, ramp, pulse, noise, DC, dual-tone

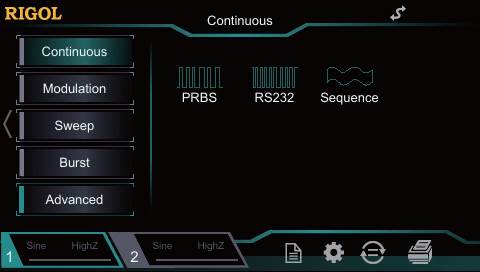

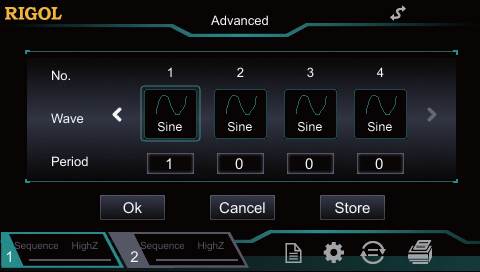

  • Advanced waveforms: PRBS, RS232, sequence
  • 160 built-in arbitrary waveforms
  • Up to 8Mpts (optional) arbitrary waveform memory, 2Mpts standard
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-105dBc/Hz @ 10kHz (f = 10MHz)

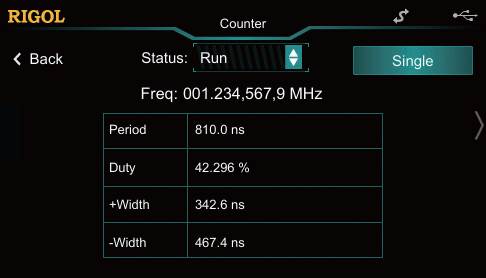

  • Built-in 7 digit counter up to 240MHz

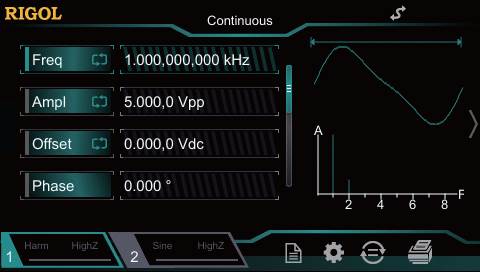

  • Built-in 8th order harmonics generator
  • Waveform summing function

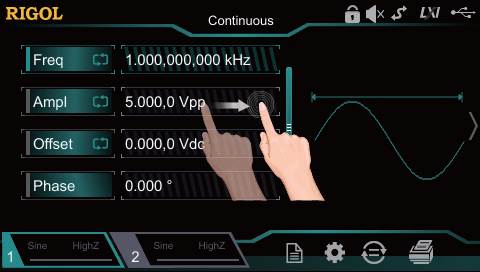

  • 4.3″ TFT LCD colour touch-screen display (480 x 272), 16M colours
  • Connectivity… USB Host & Device, (USB-LAN optional)

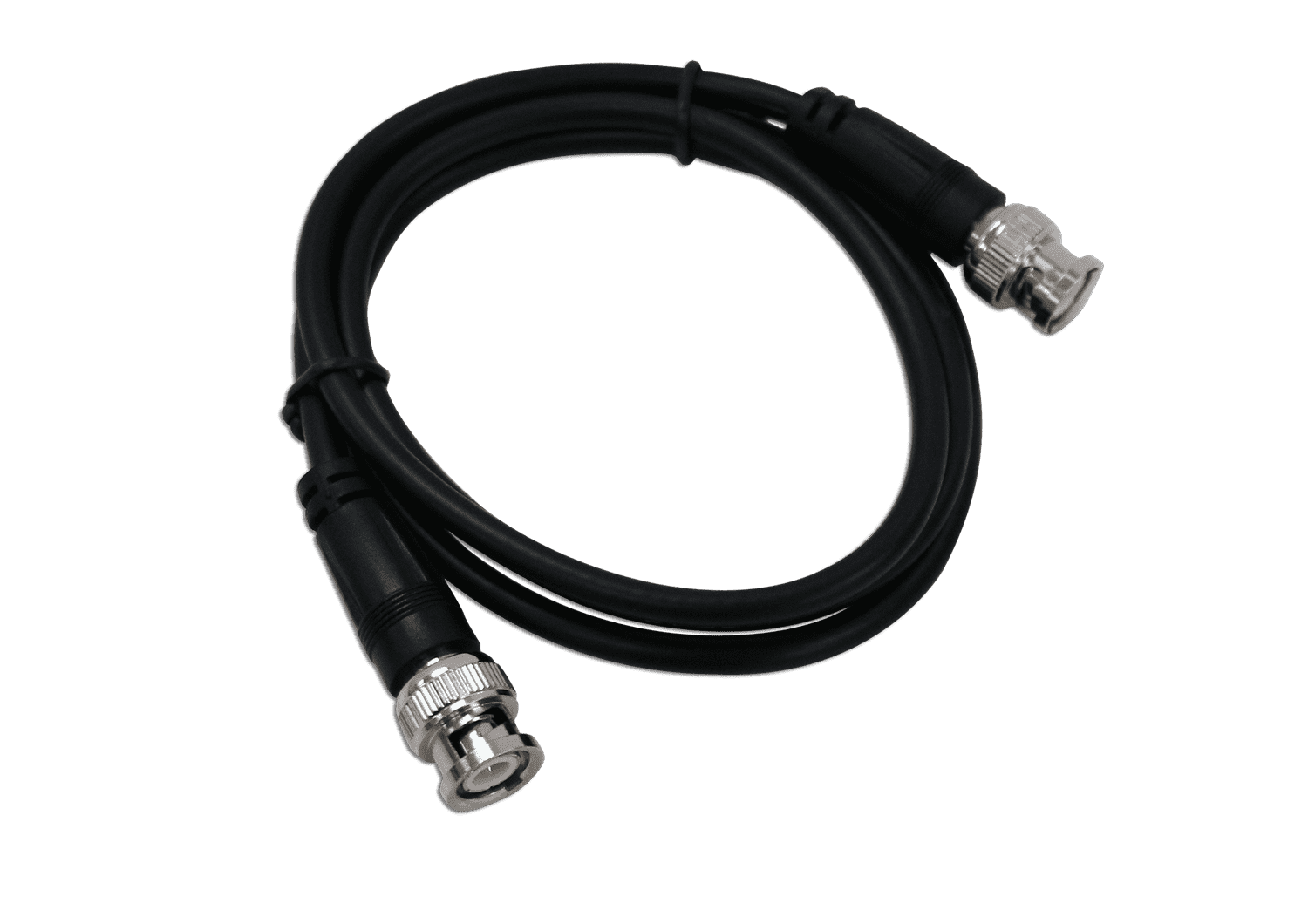

  • Standard accessories… UK & European mains leads, BNC cable (25MHz & 35MHz models only), quick guide
  • Optional accessories… 40dB attenuator, USB to LAN module

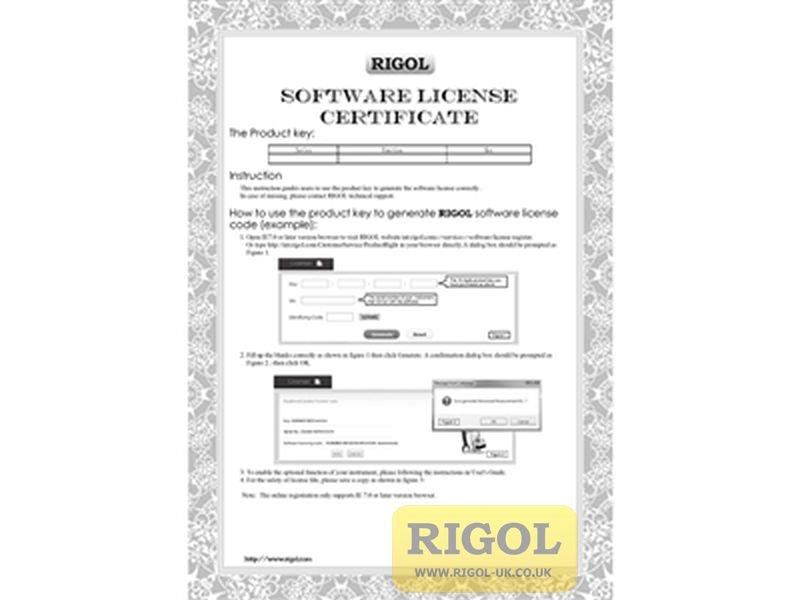

  • Other options include… Single-to-dual channel upgrade licence, memory depth upgrade (to 8Mpts) licence, Telonic Standard Calibration (traceable to UK national standards), RCL 17025 Calibration

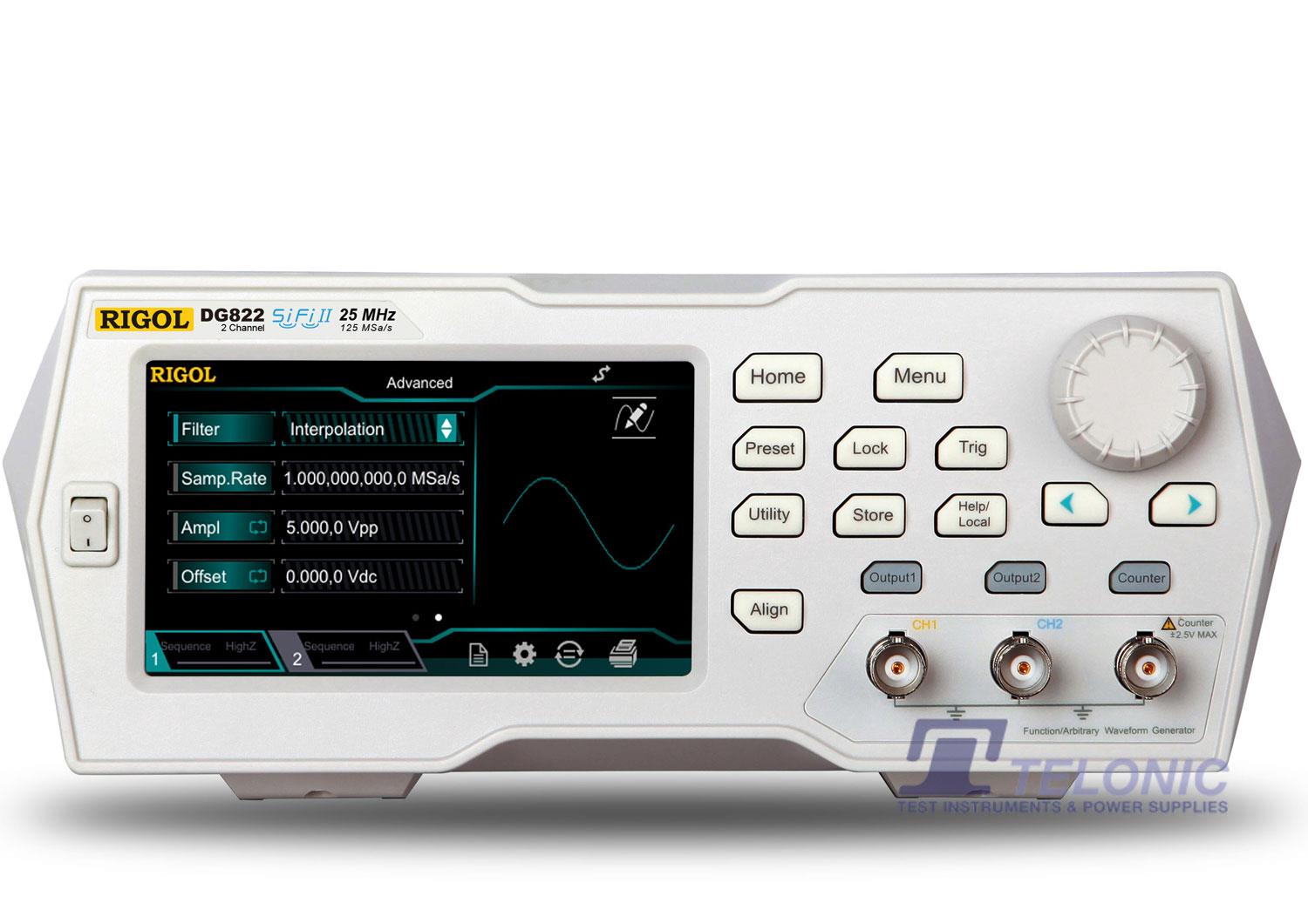

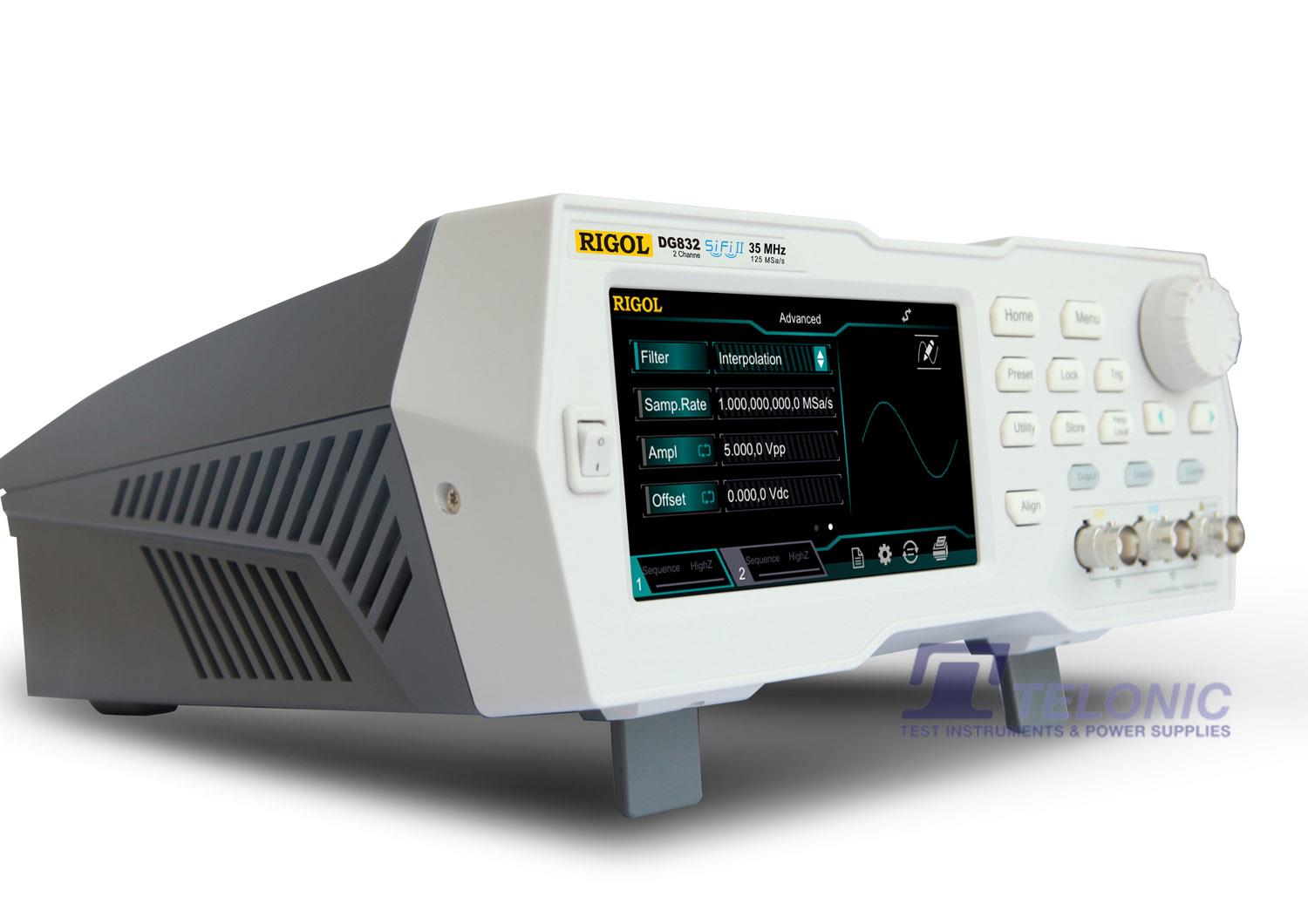

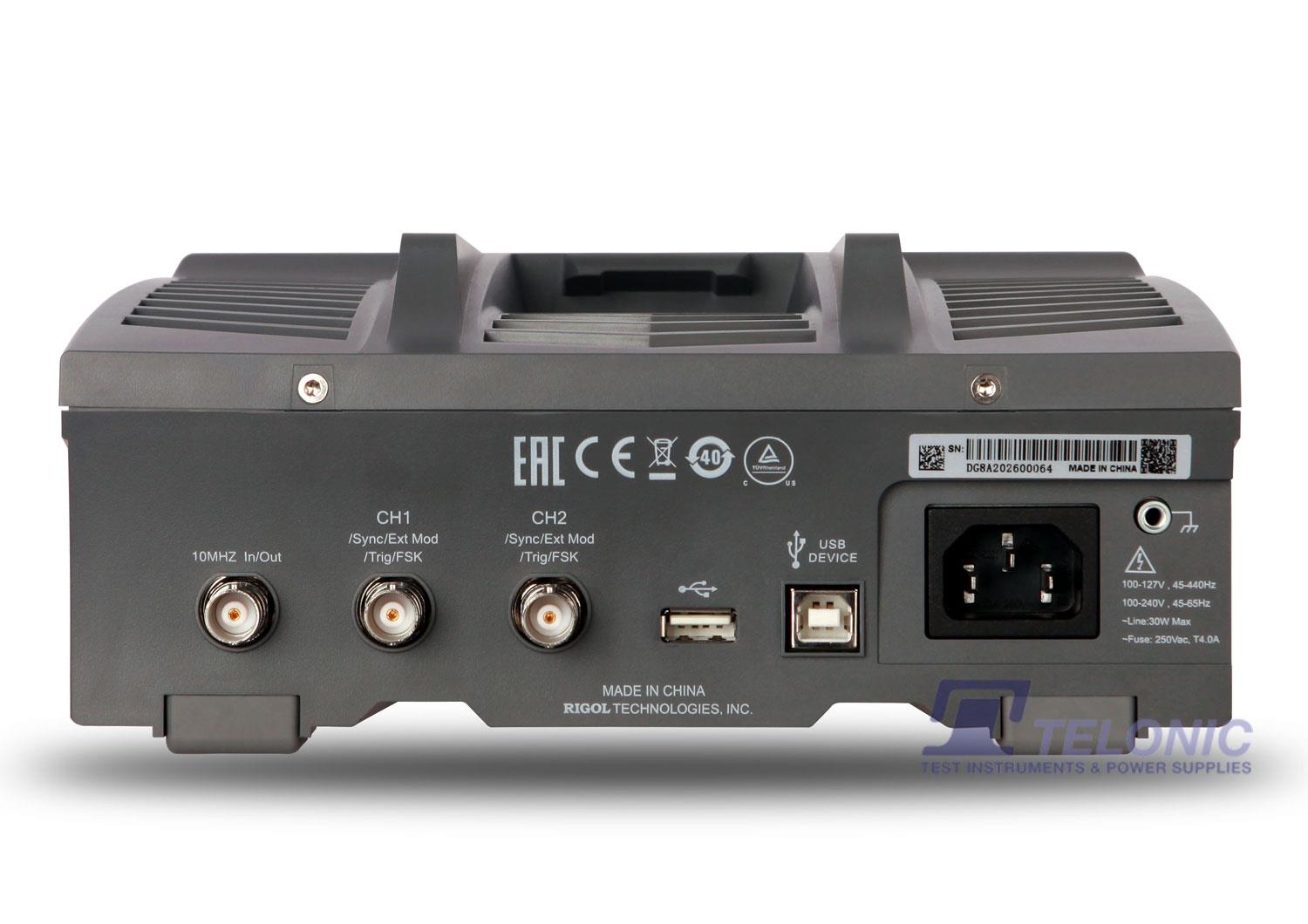

Product Images

Product Videos

YouTube Video
YouTube Video

Documentation

SpecificationDG811DG812DG821DG822DG831DG832
Channels121212
Max. Frequency10MHz10MHz25MHz25MHz35MHz35MHz
Sample Rate125 MSa/s125 MSa/s125 MSa/s125 MSa/s125 MSa/s125 MSa/s
WaveformDG811DG812DG821DG822DG831DG832
Basic WaveformsSine, Square, Ramp, Pulse,
Noise, DC, Dual-tone		Sine, Square, Ramp, Pulse,
Noise, DC, Dual-tone		Sine, Square, Ramp, Pulse,
Noise, DC, Dual-tone		Sine, Square, Ramp, Pulse,
Noise, DC, Dual-tone		Sine, Square, Ramp, Pulse,
Noise, DC, Dual-tone		Sine, Square, Ramp, Pulse,
Noise, DC, Dual-tone
Advanced WaveformsPRBS, RS232, SequencePRBS, RS232, SequencePRBS, RS232, SequencePRBS, RS232, SequencePRBS, RS232, SequencePRBS, RS232, Sequence
Built-in Arbitrary Waveforms160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.
Frequency CharacteristicsDG811DG812DG821DG822DG831DG832
Sine1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 25MHz1 μHz to 25MHz1 μHz to 35MHz1 μHz to 35MHz
Square1 μHz to 5 MHz1 μHz to 5 MHz1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 10 MHz
Ramp1 μHz to 200 kHz1 μHz to 200 kHz1 μHz to 500 kHz1 μHz to 500 kHz1 μHz to 1 MHz1 μHz to 1 MHz
Pulse1 μHz to 5 MHz1 μHz to 5 MHz1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 10 MHz
Harmonic1 μHz to 5 MHz1 μHz to 5 MHz1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 15MHz1 μHz to 15MHz
PRBS2 kbps to 10 Mbps2 kbps to 10 Mbps2 kbps to 20 Mbps2 kbps to 20 Mbps2 kbps to 30 Mbps2 kbps to 30 Mbps
Dual-Tone1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 20 MHz1 μHz to 20 MHz1 μHz to 20 MHz1 μHz to 20 MHz
RS232baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400
Sequence2 k to 30 MSa/s2 k to 30 MSa/s2 k to 30 MSa/s2 k to 30 MSa/s2 k to 30 MSa/s2 k to 30 MSa/s
Noise (-3dB)100 MHz bandwidth100 MHz bandwidth100 MHz bandwidth100 MHz bandwidth100 MHz bandwidth100 MHz bandwidth
Arbitrary Waveform1 μHz to 5 MHz1 μHz to 5 MHz1 μHz to 10MHz1 μHz to 10MHz1 μHz to 10MHz1 μHz to 10MHz
Resolution1 μHz1 μHz1 μHz1 μHz1 μHz1 μHz
Accuracy±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃
General SpecificationsDG811DG812DG821DG822DG831DG832
Power Voltage100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65Hz)
Power ConsumptionLower than 30 WLower than 30 WLower than 30 WLower than 30 WLower than 30 WLower than 30 W
Display4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen
Resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution
Colour16 M16 M16 M16 M16 M16 M
Temperature RangeOperating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃

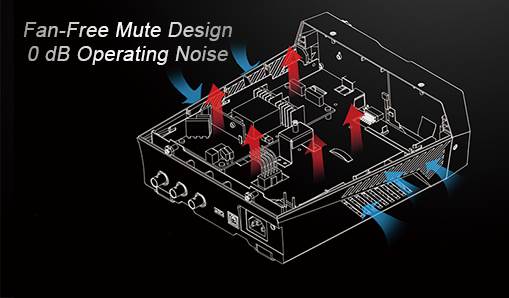

Cooling MethodNatural air coolingNatural air coolingNatural air coolingNatural air coolingNatural air coolingNatural air cooling
Humidity RangeBelow 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH
AltitudeOperating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters
Dimensions (W×H×D)237.4 mm × 97 mm × 268 mm237.4 mm × 97 mm × 268 mm237.4 mm × 97 mm × 268 mm237.4 mm × 97 mm × 268 mm237.4 mm × 97 mm × 268 mm237.4 mm × 97 mm × 268 mm
WeightPackage excluded: 1.75 kg
Package included: 2.85 kg		Package excluded: 1.75 kg
Package included: 2.85 kg		Package excluded: 1.75 kg
Package included: 2.85 kg		Package excluded: 1.75 kg
Package included: 2.85 kg		Package excluded: 1.75 kg
Package included: 2.85 kg		Package excluded: 1.75 kg
Package included: 2.85 kg
InterfaceUSB Host, USB Device, and USB-GPIBUSB Host, USB Device, and USB-GPIBUSB Host, USB Device, and USB-GPIBUSB Host, USB Device, and USB-GPIBUSB Host, USB Device, and USB-GPIBUSB Host, USB Device, and USB-GPIB
Calibration Interval1 year (recommended)1 year (recommended)1 year (recommended)1 year (recommended)1 year (recommended)1 year (recommended)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
