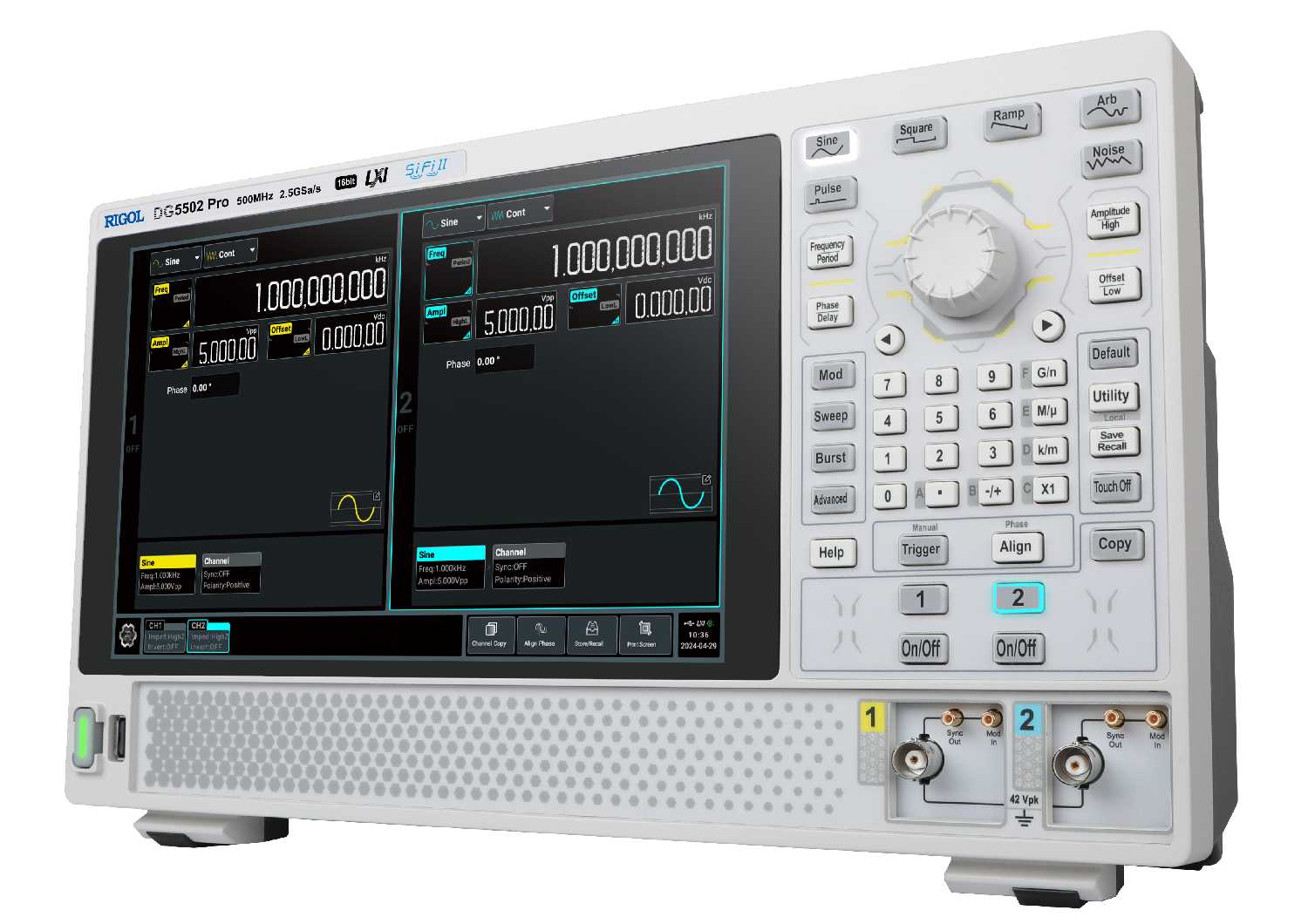

Rigol DG5252 Pro 250 MHz, Arbitrary / Function Waveform Generator

Description

Rigol DG5252 Pro 250 MHz, Arbitrary / Function Waveform Generator

With a sample rate of up to 2.5 GSa/s and a memory depth of 64 Mpts/CH (expandable to 128 Mpts/CH), the DG5000 Pro Series Function/Arbitrary Waveform Generator is a versatile, all-in-one solution designed for high-precision signal generation. This multi-functional instrument combines the capabilities of a Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, and Analog/Digital Modulator into one streamlined device. Featuring dual-channel output, the DG5252 Pro Series is both cost-effective and adaptable, making it ideal for diverse testing environments. The optional battery holder adds mobility, enabling field testing with ease.

Key Features

• Max. sample rate: 2.5 GSa/
• Max. output frequency: 250MHz
• 16-bit vertical resolution
• Square: 170 MHz max. frequency, 0.8 ns min. rise time
• Pulse: 120 MHz max. frequency, 4.2 ns min. pulse width
• Built-in high-order harmonic generator (max. 20th order)
• A maximum Arb waveform length of 64 Mpts/CH (128 Mpts/CH optional)

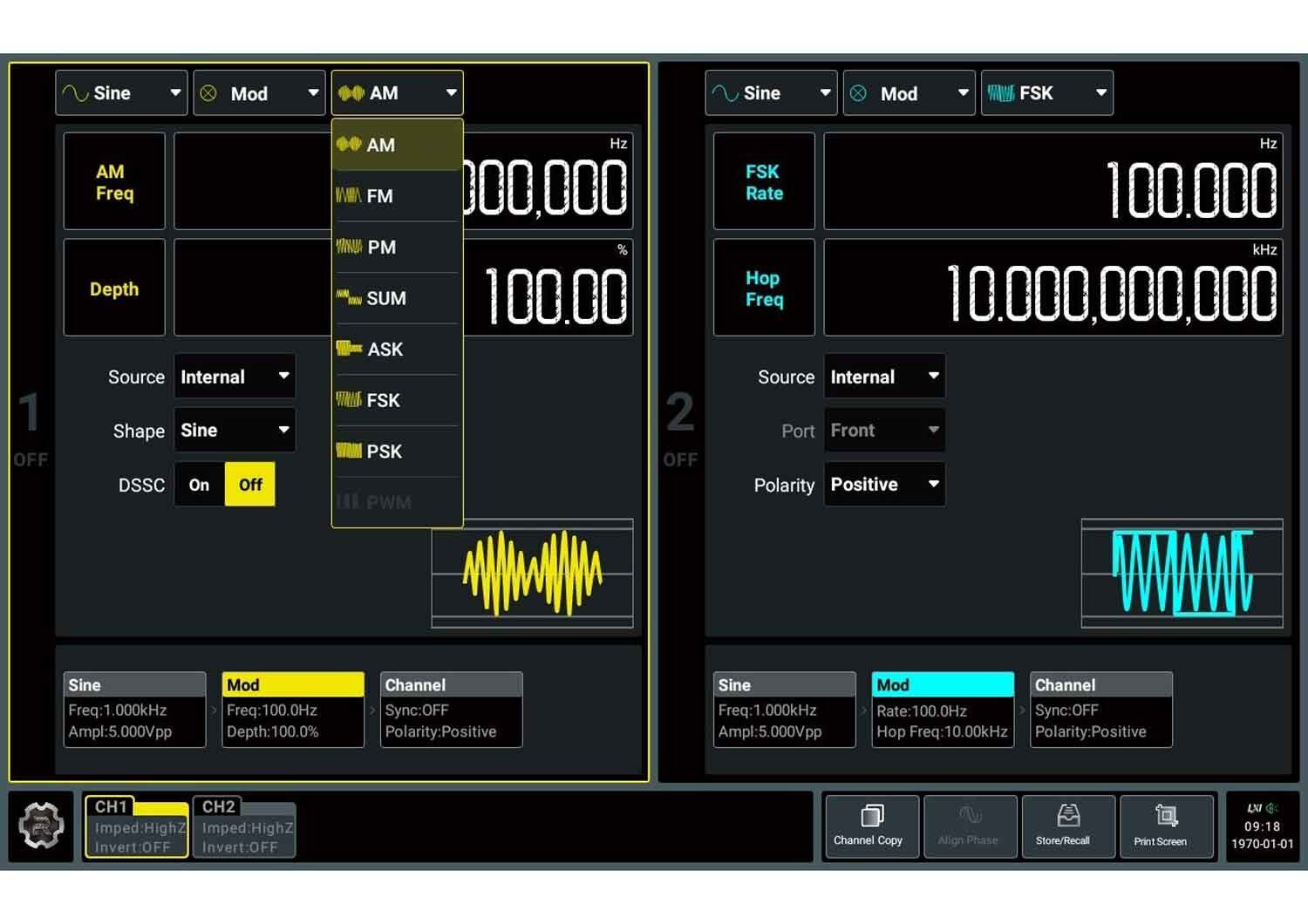

• Optional functions: Sequence, IQ, Multi-pulse, Pattern, Multi-tone

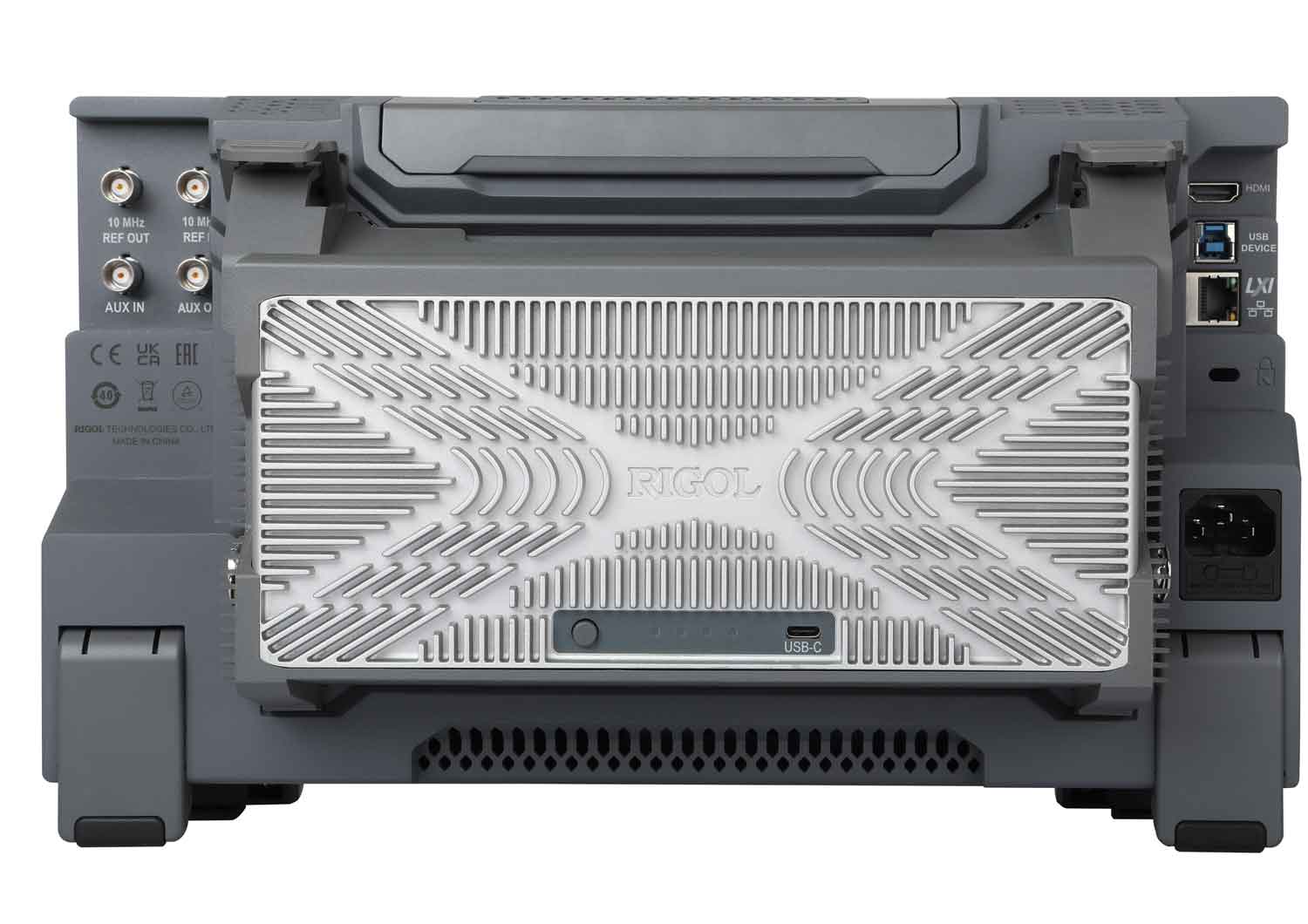

• Battery holder available to power the instrument, satisfying testing requirements in the field

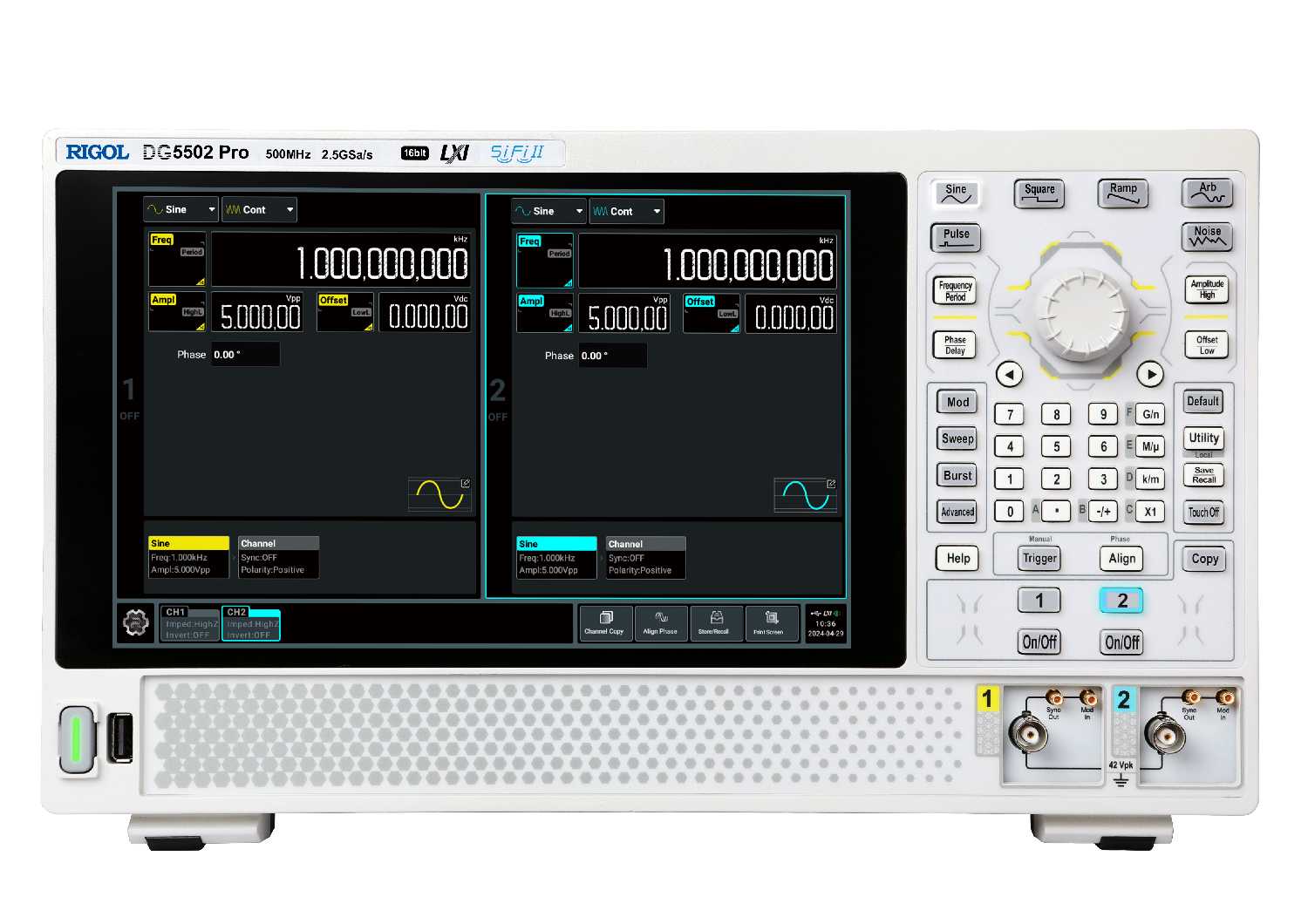

• 10.1” HD touch screen, allowing you to configure dual-channel waveforms together from a single screen
• Standard Web Control function for easier remote cooperation

Take a look at specifications for more details

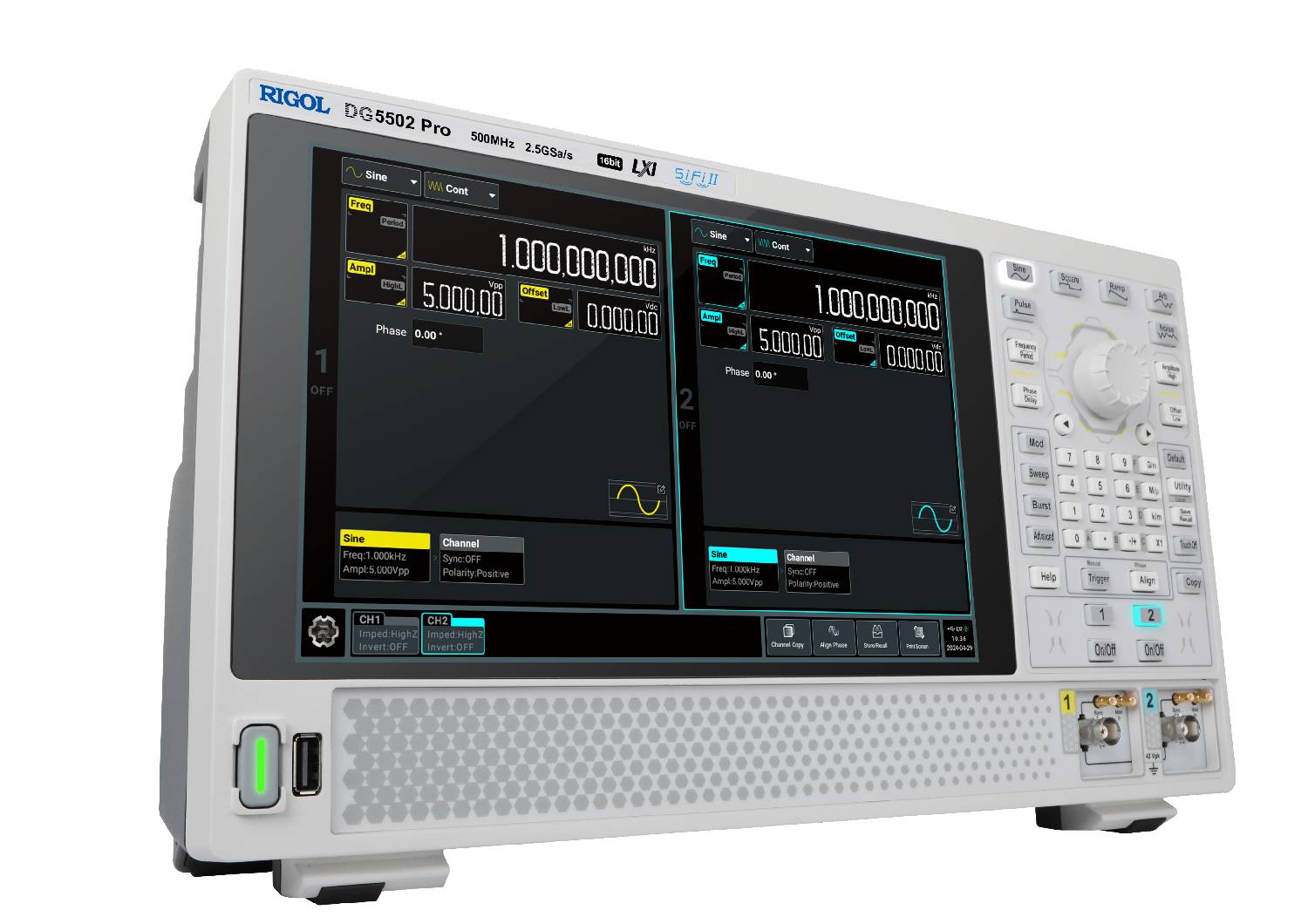

Product Images

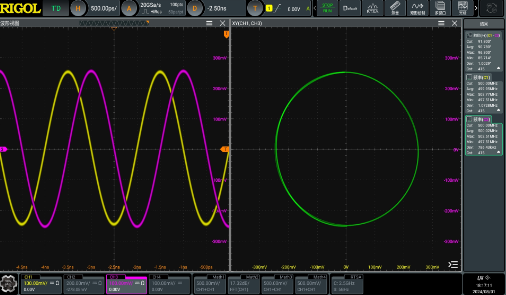

High Sampling, Low Distortion

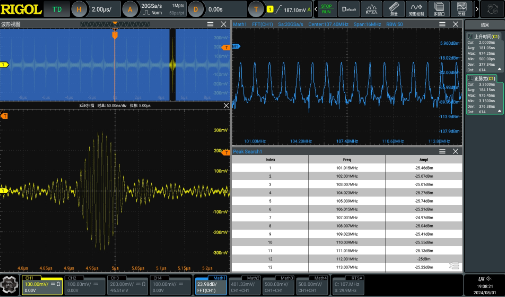

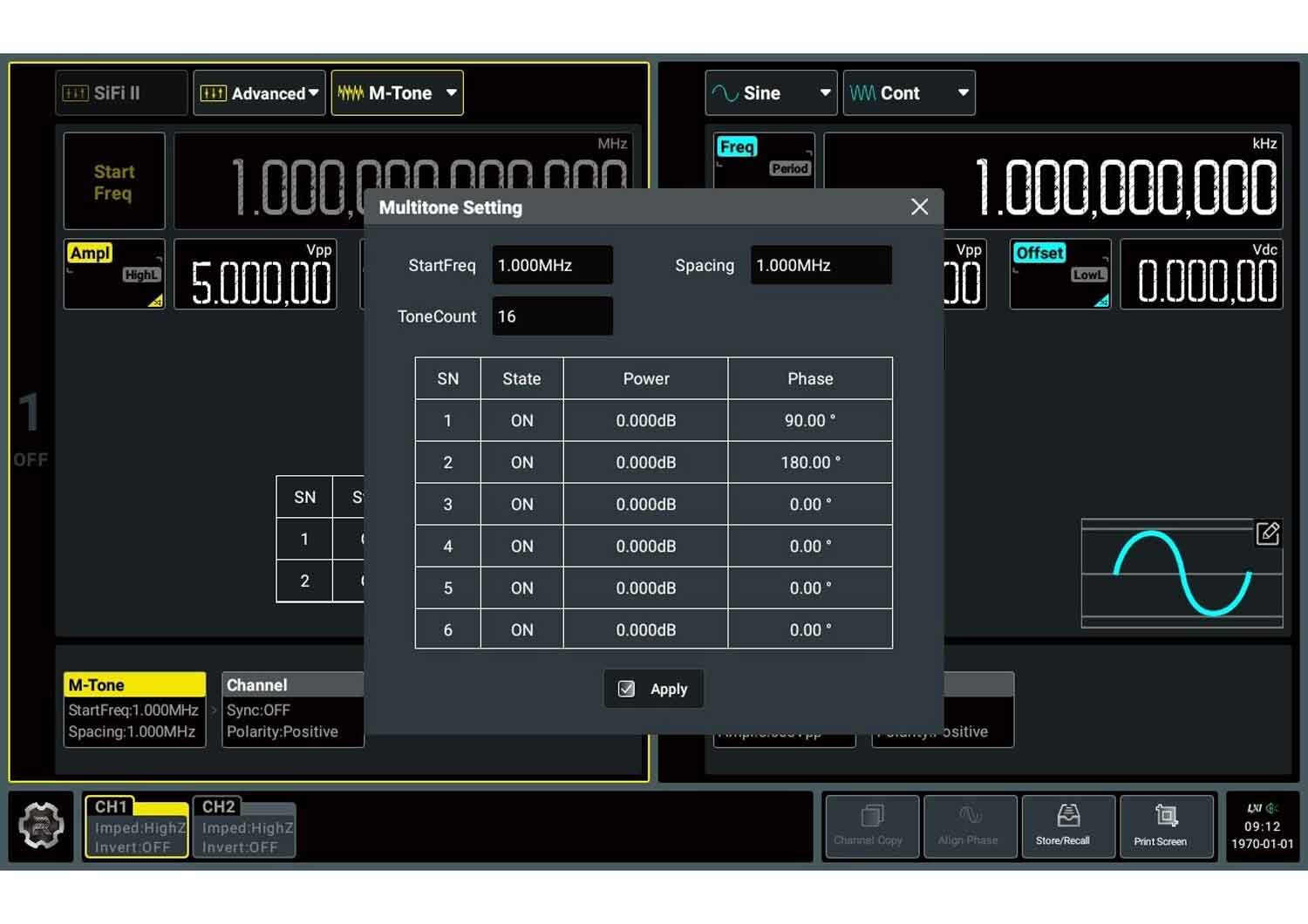

New Multi-Tone Modulation Functionality

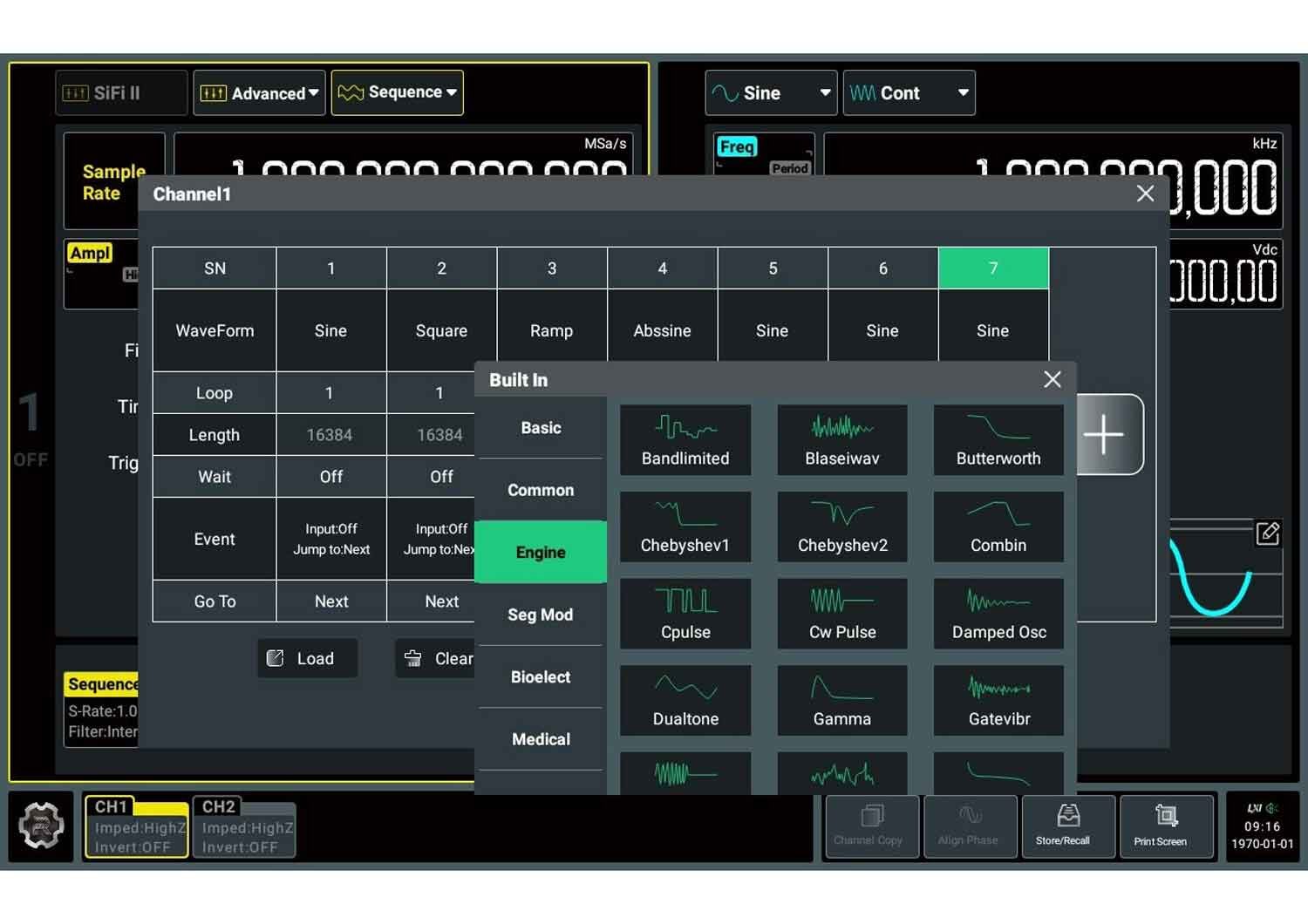

512-Event Advanced Waveform Sequencing Capability

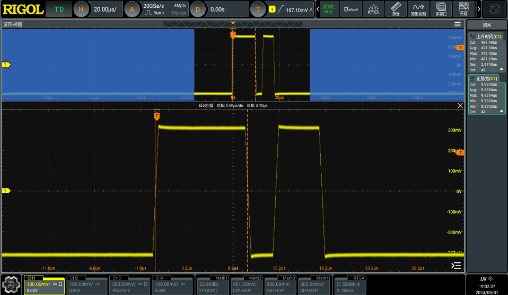

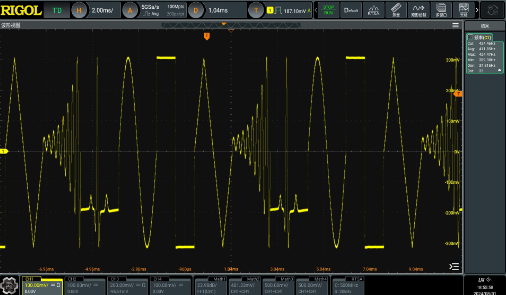

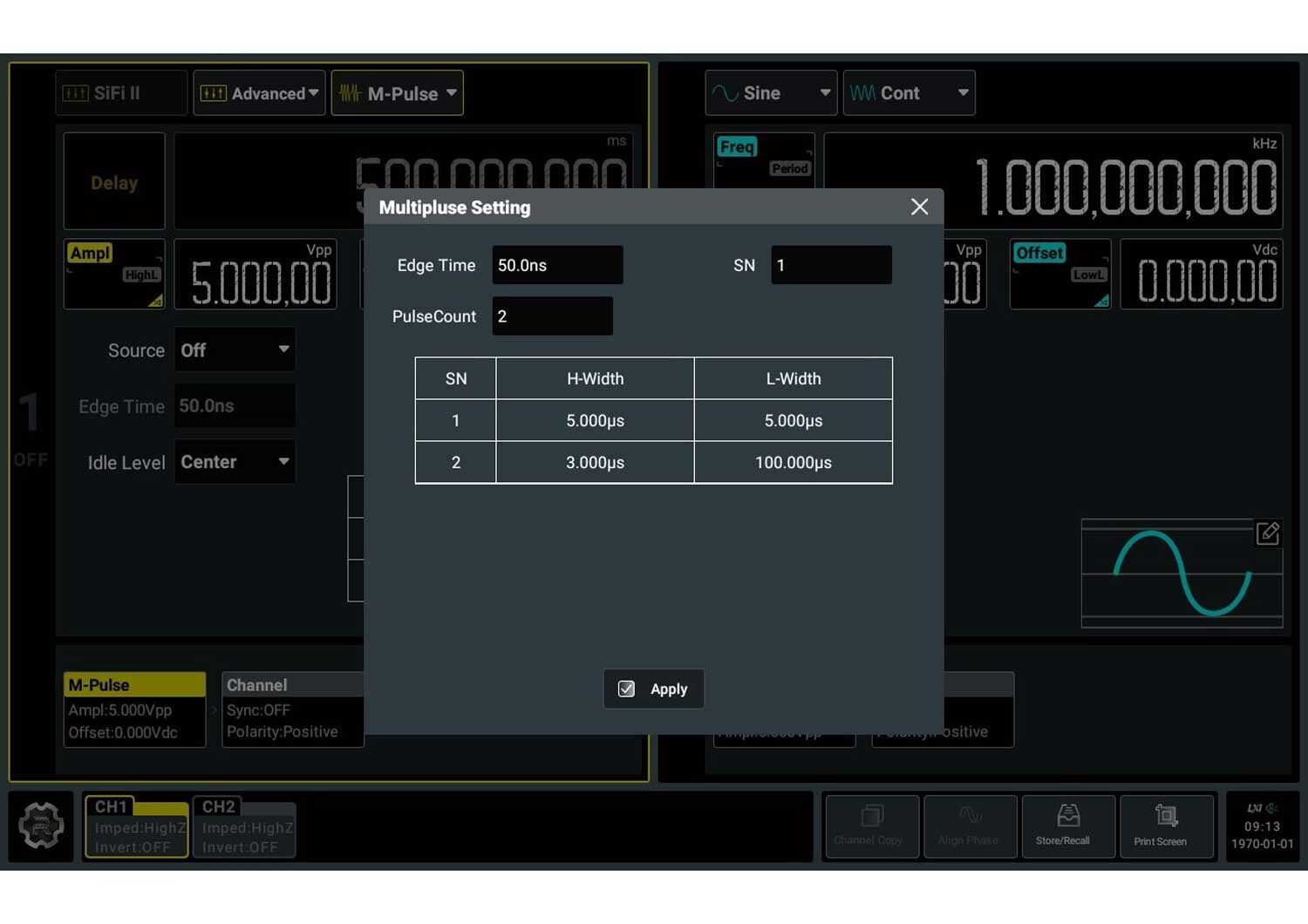

New Multi-Pulse Functionality

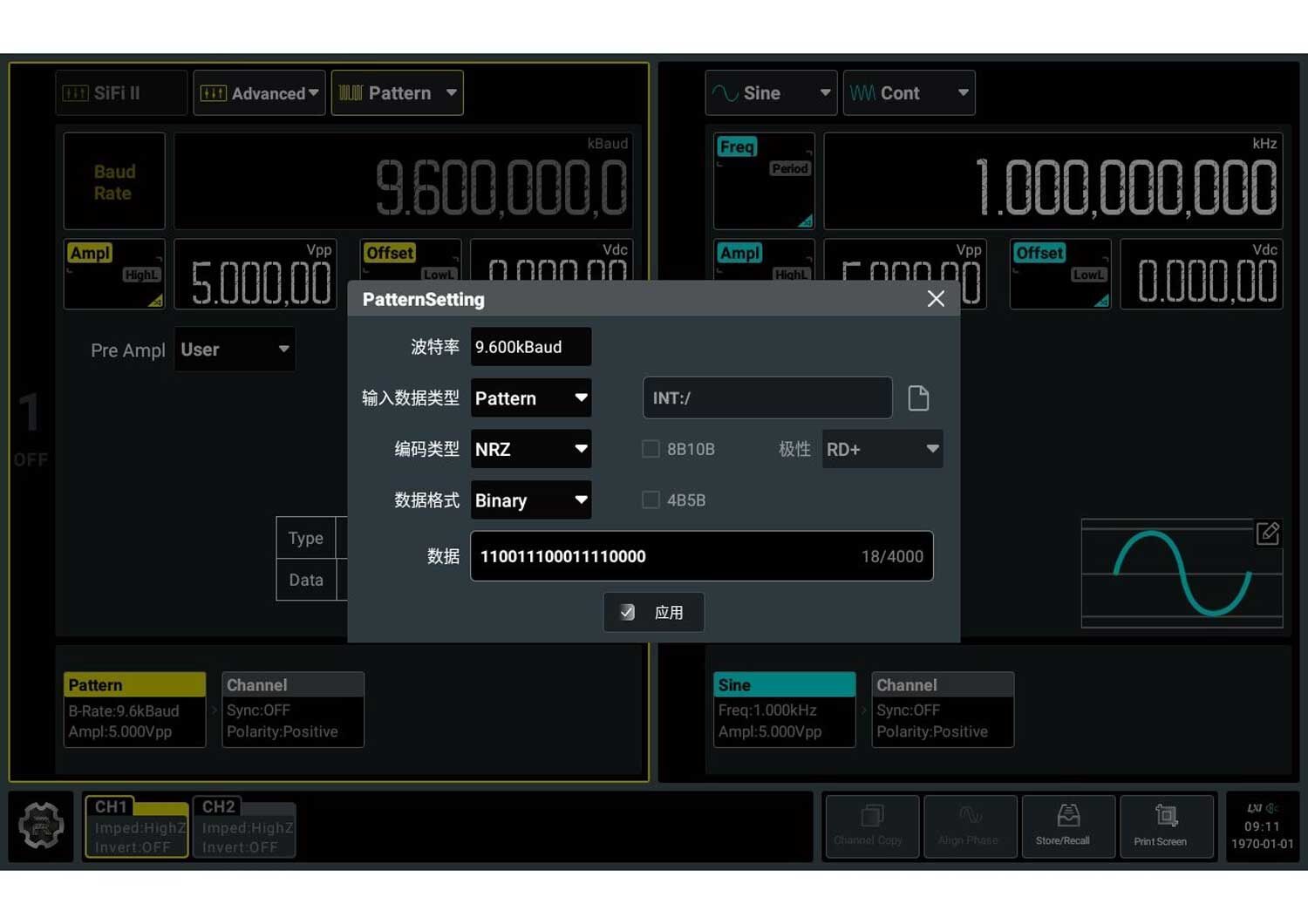

Custom Pattern Output

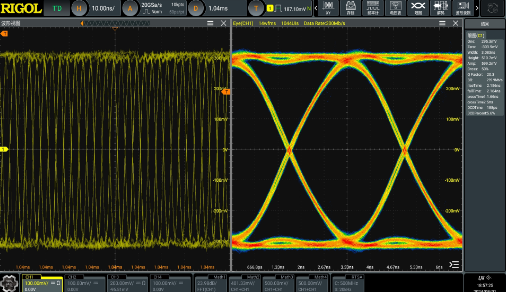

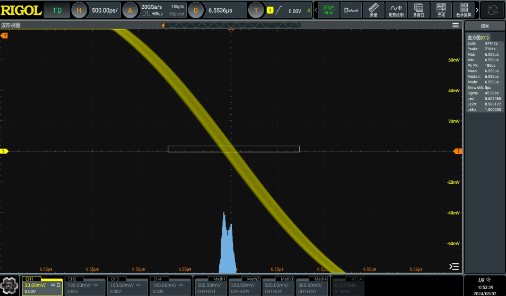

High-Fidelity Signal with Low Jitter

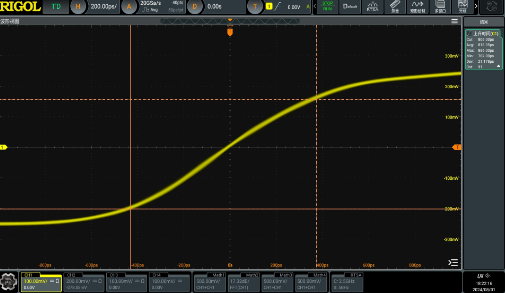

The DG5000 Pro series supports a 170 MHz square wave, with a rise time as fast as 0.8 ns (typical).

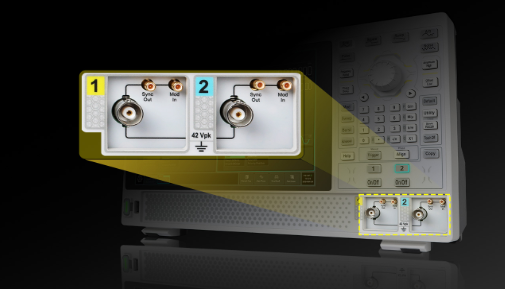

Dual-Channel Ground Isolation
