Description

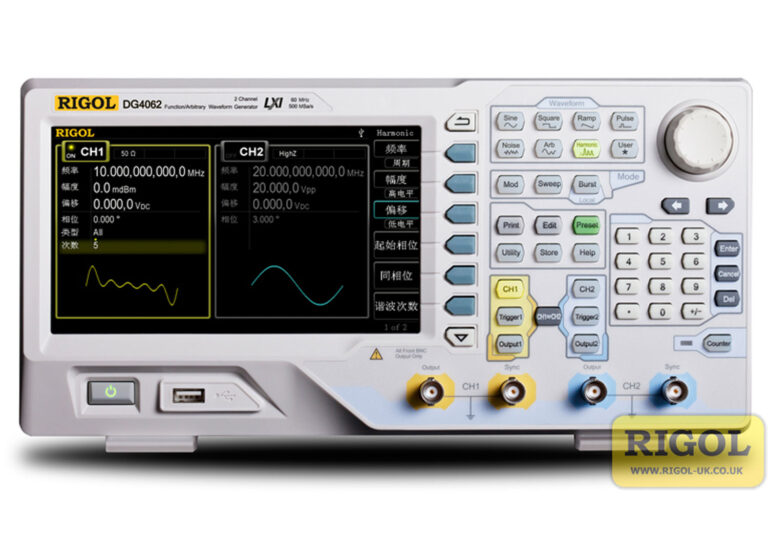

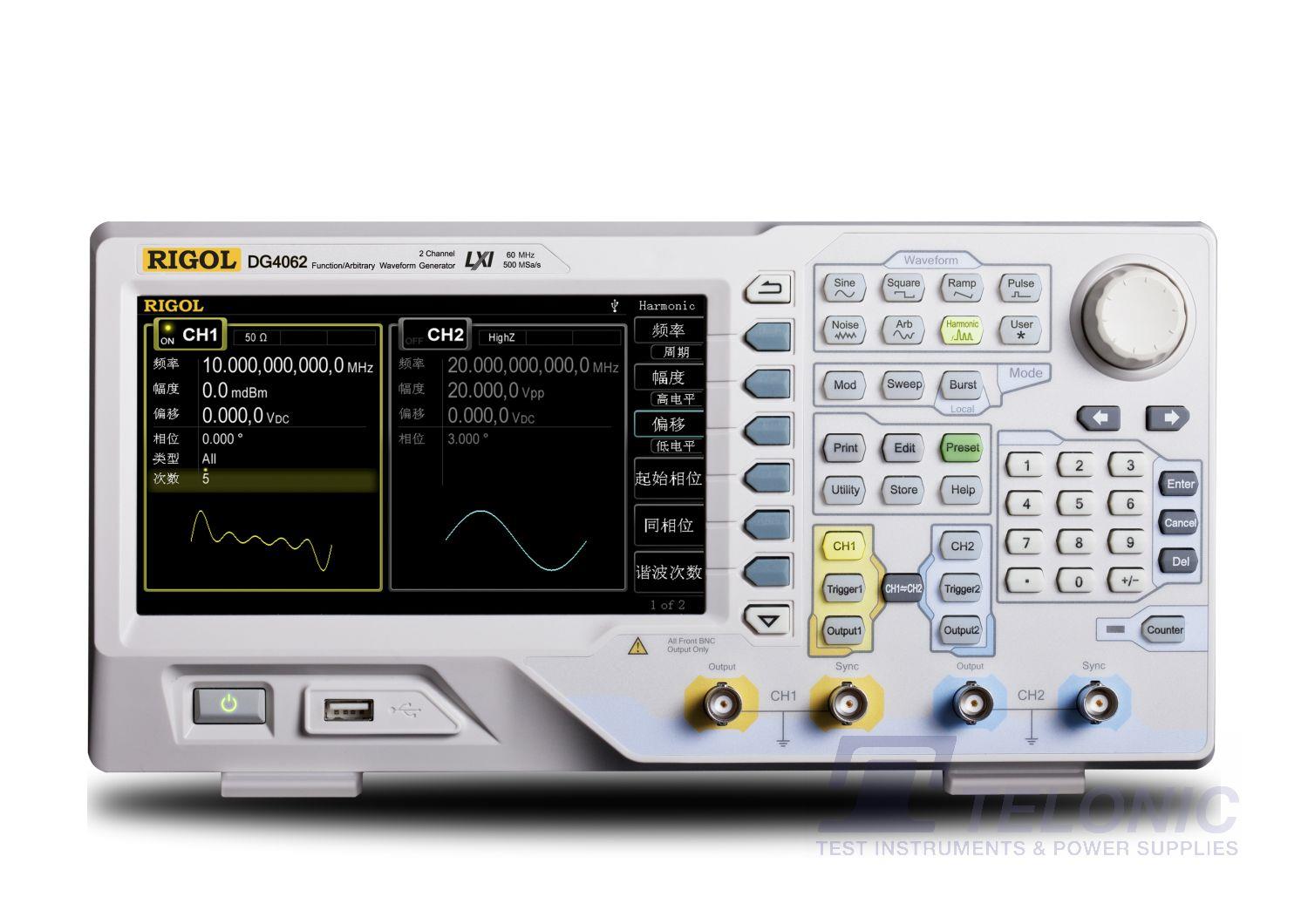

Rigol DG4062 Function Generator
The DG4062 is a 60MHz, 2CH Function Generator with a maximum sampling rate of 500MSa/s. Rigol’s award winning waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern test instruments. The DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analogue / Digital Modulation and Counting. The DG4000 utilises Direct Digital Synthesiser (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution display screen, while user-friendly interface design and panel layout improves efficiency.
Features:
- Maximum frequency 60MHz
- Two fully functional and independent channels
- 500MSa/s sample rate
- 14-bit vertical resolution
- ±2ppm frequency stability
- Phase noise <-115dBc/Hz @ 10kHz (f = 10MHz)
- 150 built-in arbitrary waveforms
- Intuitive arbitrary waveform editing software for PC
- 16kpts arbitrary waveform length per channel
- Built-in 7 digit counter up to 200MHz
- Built-in 16th order harmonic generator
- 7″ LCD display (800 x 480)
- Supported modulation… AM, FM, PM, ASK, FSK, PSK,BPSK, QPSK, 3FSK, 4FSK, OSK & PWM
- Connectivity… LAN(LXI), USB Host & Device
- Supplied with… BNC cable, USB cable, UK & European mains leads, quick guide
- Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing
- Other options include… 10W power amplifier, 40dB attenuator, rack mount kit, soft carry bag, RCL Standard Calibration, RCL 17025 Calibration
Product Images
Product Videos
Hassan N –
Rigol DG4062
Hi,
I recently bought Rigol DG4062 AWG from this web site. The delivery service was timely and very good. My first impression to the product itself has been good with following reservations/concerns:
1. I bought this relatively expensive and slim design because I wanted to avoid noise annoying noise from huge power supply fan on the back of Rigol instruments. I was bit disappointed that this slim design do have very noisy fan on rear left side of instrument. It’s really made me extremely disappointed and would impact of my usage of this instrument.
2. I noticed that power switch not actually cut off power but keep instrument in some sort of standby mode with flashing light on power button. It turns on by default as soon as I turn on Mains AC power button. This is not good!
Kind Regards,
Hassan
Darryl –
new DG4062 SigGen UK RIGOL stockist Telonic Ltd
Package safely arrived, in the notified delivery time slot. Very well done to yourselves and the delivery company you choose to use. [Interlink Express]
Thank you so far in this easy and well communicated sale [RIGOL DG4062], I am impressed in this day when too many companies are running things too tight to the budget that service disappears.
—
Darryl
