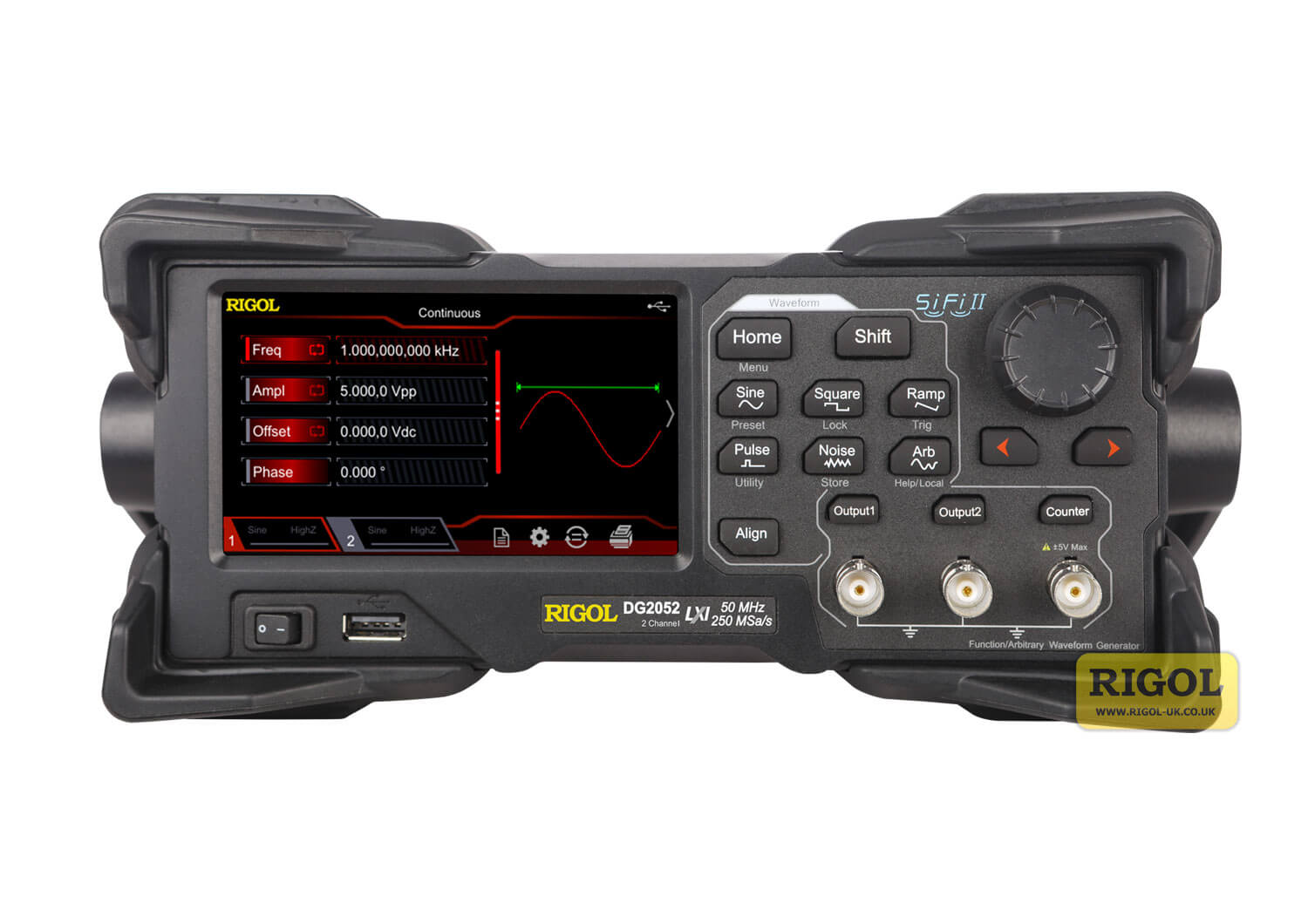

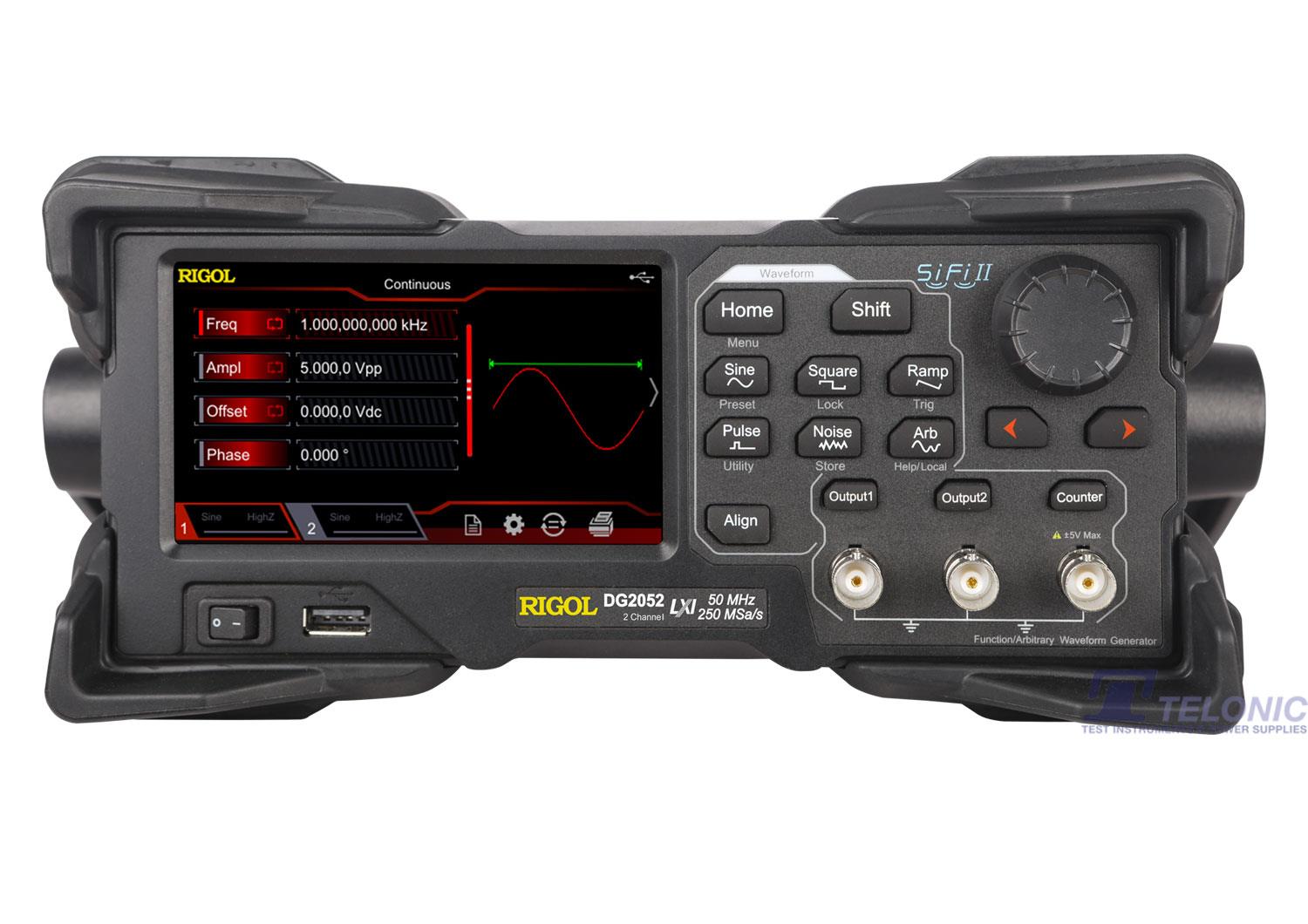

Rigol DG2052 Function Generator

The DG2052 is a 50MHz, 2CH Function Generator with a maximum sampling rate of 250MSa/s. As a multi-functional signal generator, DG2000 series function/arbitrary waveform generator integrates many instruments into 1, such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analogue / digital modulator, and a frequency counter. As a multi-functional and portable instrument, it offers you a new choice in education, R&D, production, measurement and other industries with its user-friendly touch screen and high performance at an unprecedented price point.

Features:

  • Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary waveforms point by point; recover the signal without distortion; sample rate accurate and adjustable; jitter of all the output waveforms (including Sine, Pulse, etc) as low as 200ps
  • 16 Mpts memory depth per channel for arbitrary waveforms
  • Standard dual-channel with the same performance, equivalent to two independent signal sources
  • High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
  • Built-in high-order harmonic generator (at most 8-order harmonics)
  • Built-in 7 digit/s, 240MHz bandwidth full featured frequency counter
  • Up to 160 built-in arbitrary waveforms, covering the common signals in engineering application, medical
  • electronics, auto electronics, math processing and other various fields
  • Sample rate up to 250MSa/s, vertical resolution 16 bits
  • Arbitrary waveform sequence editing function available, arbitrary waveforms also can be generated through the PC software
  • Various analogue and digital modulation functions: AM, FM, PM, ASK, FSK, PSK and PWM
  • Standard waveform combine function, capable of outputting specified waveforms combined with the basic waveforms
  • Standard channel tracking function, when enabled, all the parameters of both channels are updated based on the users’ configurations
  • Standard interface: USB Host&Device and LAN (LXI Core 2011 Device); USB-GPIB function supported
  • 4.3″ TFT colour touch screen
  • RS232, PRBS, and dual-tone outputs supported

Product Images

Documentation

SpecificationDG2052DG2072DG2102
Channels222
Max. Frequency50MHz70MHz100MHz
Sample Rate250MSa/s250MSa/s250MSa/s
WaveformDG2052DG2072DG2102
Basic WaveformsSine, Square, Ramp, Pulse, Noise, DC, Dual-toneSine, Square, Ramp, Pulse, Noise, DC, Dual-toneSine, Square, Ramp, Pulse, Noise, DC, Dual-tone
Advanced WaveformsPRBS, RS232, SequencePRBS, RS232, SequencePRBS, RS232, Sequence
Built-in Arbitrary Waveforms160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine,
Lorentz, etc.		160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine,
Lorentz, etc.		160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine,
Lorentz, etc.
Frequency CharacteristicsDG2052DG2072DG2102
Sine1 μHz to 50 MHz1 μHz to 70 MHz1 μHz to 100 MHz
Square1 μHz to 15 MHz1 μHz to 20 MHz1 μHz to 25 MHz
Ramp1 μHz to 1.5 MHz1 μHz to 1.5 MHz1 μHz to 2 MHz
Pulse1 μHz to 15 MHz1 μHz to 20 MHz1 μHz to 25 MHz
Harmonic1 μHz to 20 MHz1 μHz to 20 MHz1 μHz to 25 MHz
PRBS2 kbps to 40 Mbps2 kbps to 50 Mbps2 kbps to 60 Mbps
Dual-Tone1 μHz to 20 MHz1 μHz to 20 MHz1 μHz to 20 MHz
RS232baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400
Sequence2 k to 60 MSa/s2 k to 60 MSa/s2 k to 60 MSa/s
Noise (-3dB)100 MHz bandwidth100 MHz bandwidth100 MHz bandwidth
Arbitrary Waveform1 μHz to 15 MHz1 μHz to 20 MHz1 μHz to 20 MHz
Resolution1 μHz1 μHz1 μHz
Accuracy±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃
General SpecificationsDG2052DG2072DG2102
Power Voltage100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65 Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65 Hz)		100 V to 127 V (45 Hz to 440 Hz)
100 V to 240 V (45 Hz to 65 Hz)
Power ConsumptionLower than 30 WLower than 30 WLower than 30 W
Display
Type4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen4.3-inch TFT LCD touch screen
Resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution480 horizontal × RGB × 272 vertical resolution
Colour16 M16 M16 M
Environment
Temperature RangeOperating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃		Operating: 0℃ to 45℃
Non-operating: -40℃ to 60℃
Cooling MethodNatural air coolingNatural air coolingNatural air cooling
Humidity RangeBelow 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH		Below 30℃: ≤95%RH
30℃ to 40℃: ≤75%RH
40℃ to 50℃: ≤45%RH
AltitudeOperating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters		Operating: below 3,000 meters
Non-operating: below 15,000 meters
Dimensions (W×H×D)261.5 mm × 112 mm × 318.4 mm261.5 mm × 112 mm × 318.4 mm261.5 mm × 112 mm × 318.4 mm

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
