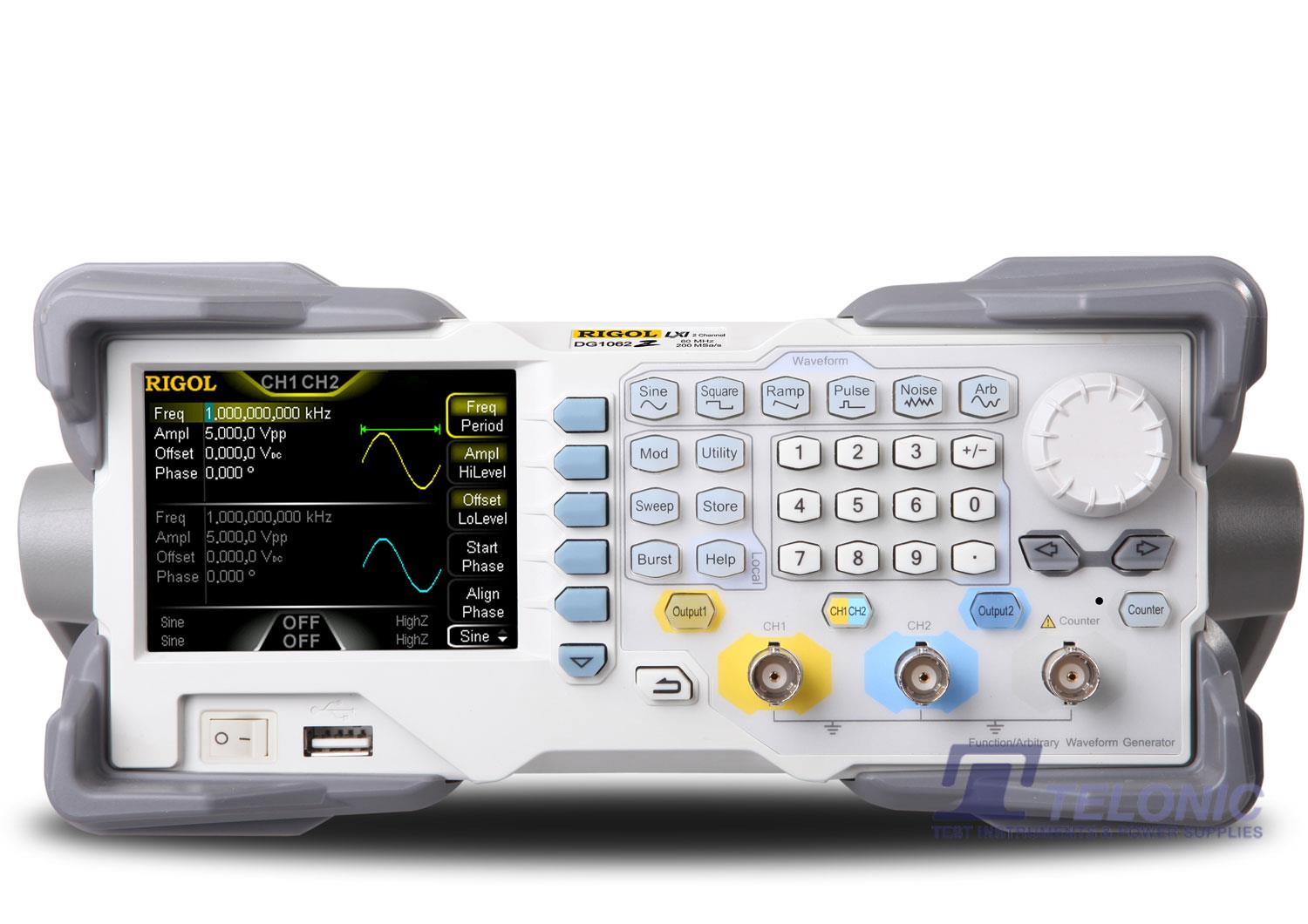

Rigol DG1032Z Function Generator

The DG1032Z function / arbitrary waveform generator is a multi-functional 30MHz generator that combines many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and counter. As a multi-function, high performance and portable generator, it will be a valuable asset in education, R&D, production, test and various other environments.

Features:

  • Maximum frequency 30MHz
  • Two fully functional and independent channels
  • 200MSa/s sample rate
  • 14-bit vertical resolution

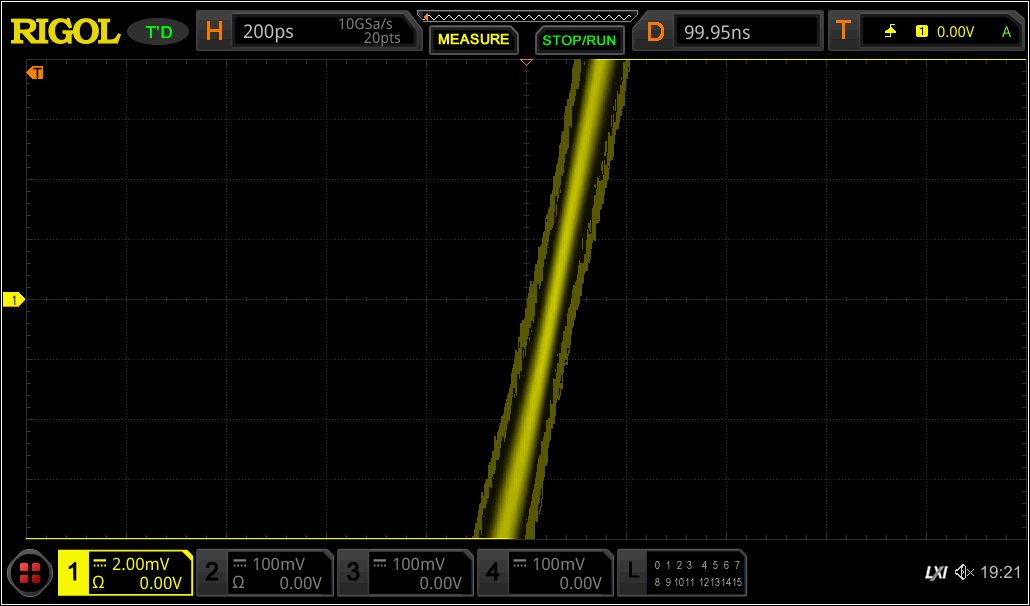

  • Innovative SiFi (Signal Fidelity) technology

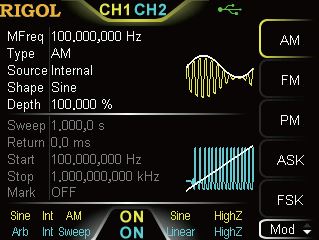

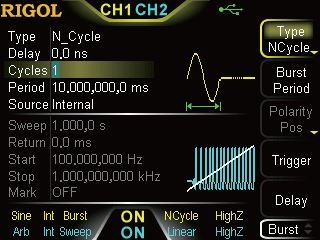

  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM

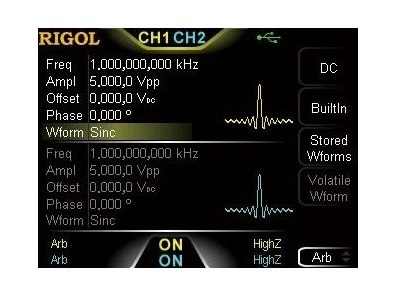

  • Up to 16Mpts (optional) arbitrary waveform memory, 8Mpts standard

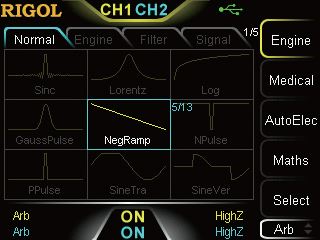

  • 160 built-in arbitrary waveforms
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-125dBc/Hz @ 10kHz (f = 10MHz)

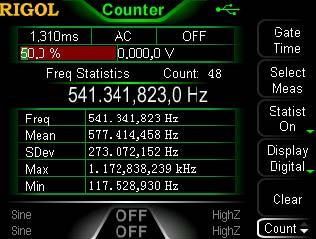

  • Built-in 7 digit counter up to 200MHz

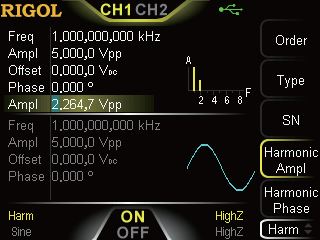

  • Built-in 8th order harmonics generator

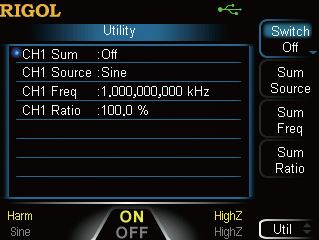

  • Waveform summing function
  • 3.5″ TFT LCD display (320 x 240), 16M colours

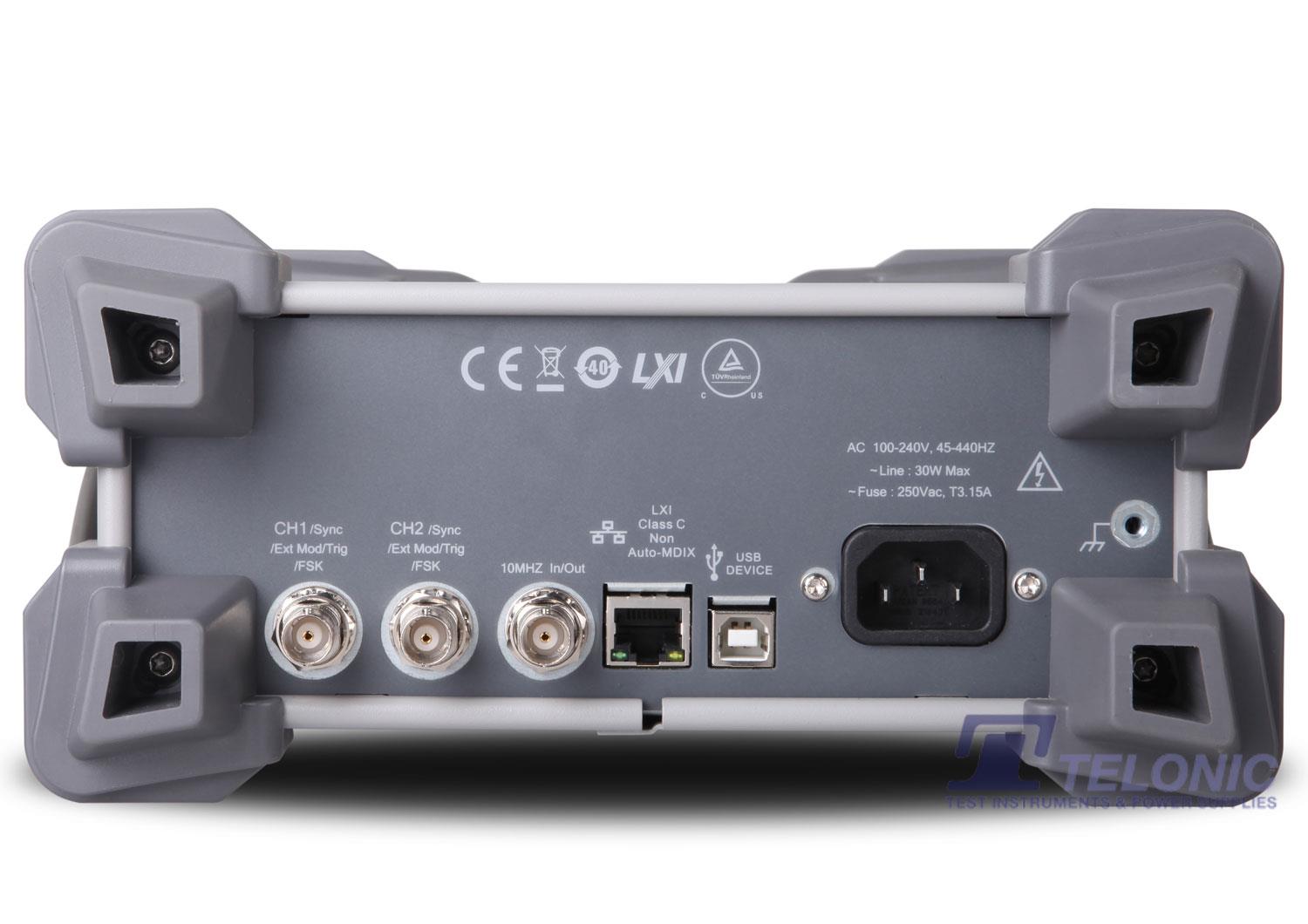

  • Connectivity… LAN(LXI), USB Host & Device, (USB-GPIB Optional)
  • Supplied with… BNC cable, USB cable, UK & European mains leads, quick guide
  • Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing

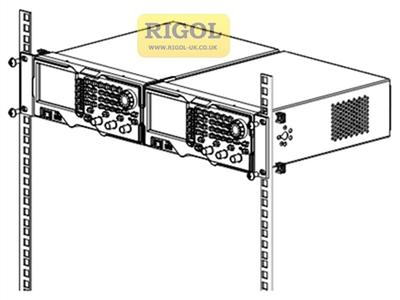

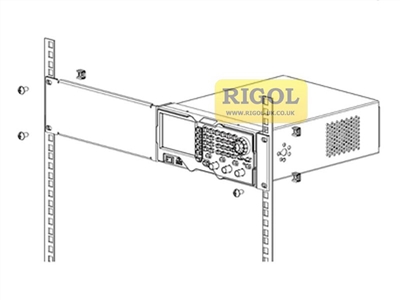

  • Other options include… 16Mpts memory, 10W power amplifier, 40dB attenuator, rack mount kits (single & dual), USB to GPIB module, RCL Standard Calibration, RCL 17025 Calibration

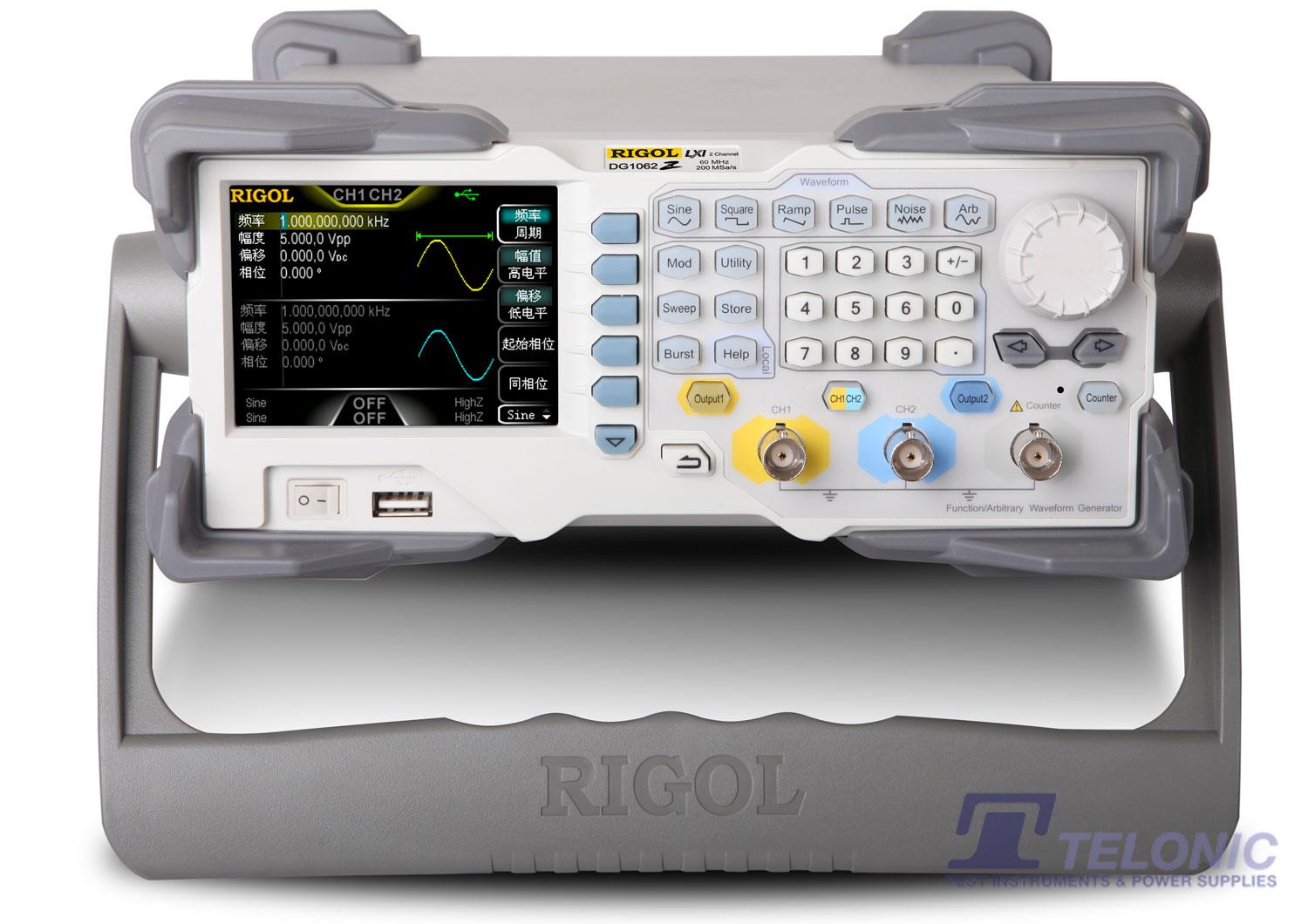

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Datasheet

Rigol DG1000Z Datasheet



User Guide

Rigol DG1000Z User Guide



Application Notes

SiFi Technology in Arb Wave Creation



SpecificationDG1022ZDG1032ZDG1062Z
Channels222
Max. Frequency25MHz30MHz60MHz
Sample Rate200MSa/s200MSa/s200MSa/s
WaveformDG1022ZDG1032ZDG1062Z
Basic WaveformsSine, Square, Ramp, Pulse, NoiseSine, Square, Ramp, Pulse, NoiseSine, Square, Ramp, Pulse, Noise
Built-in Arbitrary Waveforms160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.
Frequency CharacteristicsDG1022ZDG1032ZDG1062Z
Sine1 μHz to 25 MHz1 μHz to 30MHz1 μHz to 60MHz
Square1 μHz to 25 MHz1 μHz to 25 MHz1 μHz to 25 MHz
Ramp1 μHz to 500 kHz1 μHz to 500 kHz1 μHz to 1MHz
Pulse1 μHz to 15 MHz1 μHz to 15 MHz1 μHz to 25MHz
Harmonic1uHz to 10 MHz1uHz to 10 MHz1uHz to 20 MHz
Noise (-3dB)25 MHz bandwidth30 MHz bandwidth60MHz bandwidth
Arbitrary Waveform1 μHz to 10 MHz1 μHz to 10 MHz1 μHz to 20MHz
Resolution1 μHz1 μHz1 μHz
Accuracy±1 ppm of the setting value, 18℃ to 28℃±1 ppm of the setting value, 18℃ to 28℃±1 ppm of the setting value, 18℃ to 28℃
General SpecificationsDG1022ZDG1032ZDG1062Z
Power Voltage100 V to 240 V (45 Hz to 440 Hz)100 V to 240 V (45 Hz to 440 Hz)100 V to 240 V (45 Hz to 440 Hz)
Power ConsumptionLower than 40 WLower than 40 WLower than 40 W
Fuse250 V, T3.15 A250 V, T3.15 A250 V, T3.15 A
Display
Type3.5-inch TFT LCD3.5-inch TFT LCD3.5-inch TFT LCD
Resolution320 horizontal × RGB × 240 vertical resolution320 horizontal × RGB × 240 vertical resolution320 horizontal × RGB × 240 vertical resolution
Colour16 M colour16 M colour16 M colour
Environment
Temperature RangeOperating: 0℃ to 50℃ Non-operating: -40℃ to 70℃Operating: 0℃ to 50℃ Non-operating: -40℃ to 70℃Operating: 0℃ to 50℃ Non-operating: -40℃ to 70℃
Cooling MethodFan coolingFan coolingFan cooling
Humidity RangeLower than 30℃ : ≤95% relative humidity 30℃ to 40℃ : ≤75% relative humidity 40℃ to 50℃ : ≤45% relative humidityLower than 30℃ : ≤95% relative humidity 30℃ to 40℃ : ≤75% relative humidity 40℃ to 50℃ : ≤45% relative humidityLower than 30℃ : ≤95% relative humidity 30℃ to 40℃ : ≤75% relative humidity 40℃ to 50℃ : ≤45% relative humidity
AltitudeOperating: below 3000 meters Non-operating: below 15,000 metersOperating: below 3000 meters Non-operating: below 15,000 metersOperating: below 3000 meters Non-operating: below 15,000 meters
Dimensions (W×H×D)261.5 mm × 112 mm × 318.4 mm261.5 mm × 112 mm × 318.4 mm261.5 mm × 112 mm × 318.4 mm

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
