Rigol DG1022Z Function Generator
The DG1022Z function / arbitrary waveform generator is a multi-functional 25MHz generator that combines many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and counter. As a multi-function, high performance and portable generator, it will be a valuable asset in education, R&D, production, test and various other environments.
Features:
- Maximum frequency 25MHz
- Two fully functional and independent channels
- 200MSa/s sample rate
- 14-bit vertical resolution
- Innovative SiFi (Signal Fidelity) technology
- Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
- Up to 16Mpts (optional) arbitrary waveform memory, 2Mpts standard
- 160 built-in arbitrary waveforms
- Intuitive arbitrary waveform editing software for PC
- ±1ppm frequency stability
- Phase noise <-125dBc/Hz @ 10kHz (f = 10MHz)
- Built-in 7 digit counter up to 200MHz
- Built-in 8th order harmonics generator
- Waveform summing function
- 3.5″ TFT LCD display (320 x 240), 16M colours
- Connectivity… LAN(LXI), USB Host & Device, (USB-GPIB Optional)
- Supplied with… BNC cable, USB cable, UK & European mains leads, quick guide

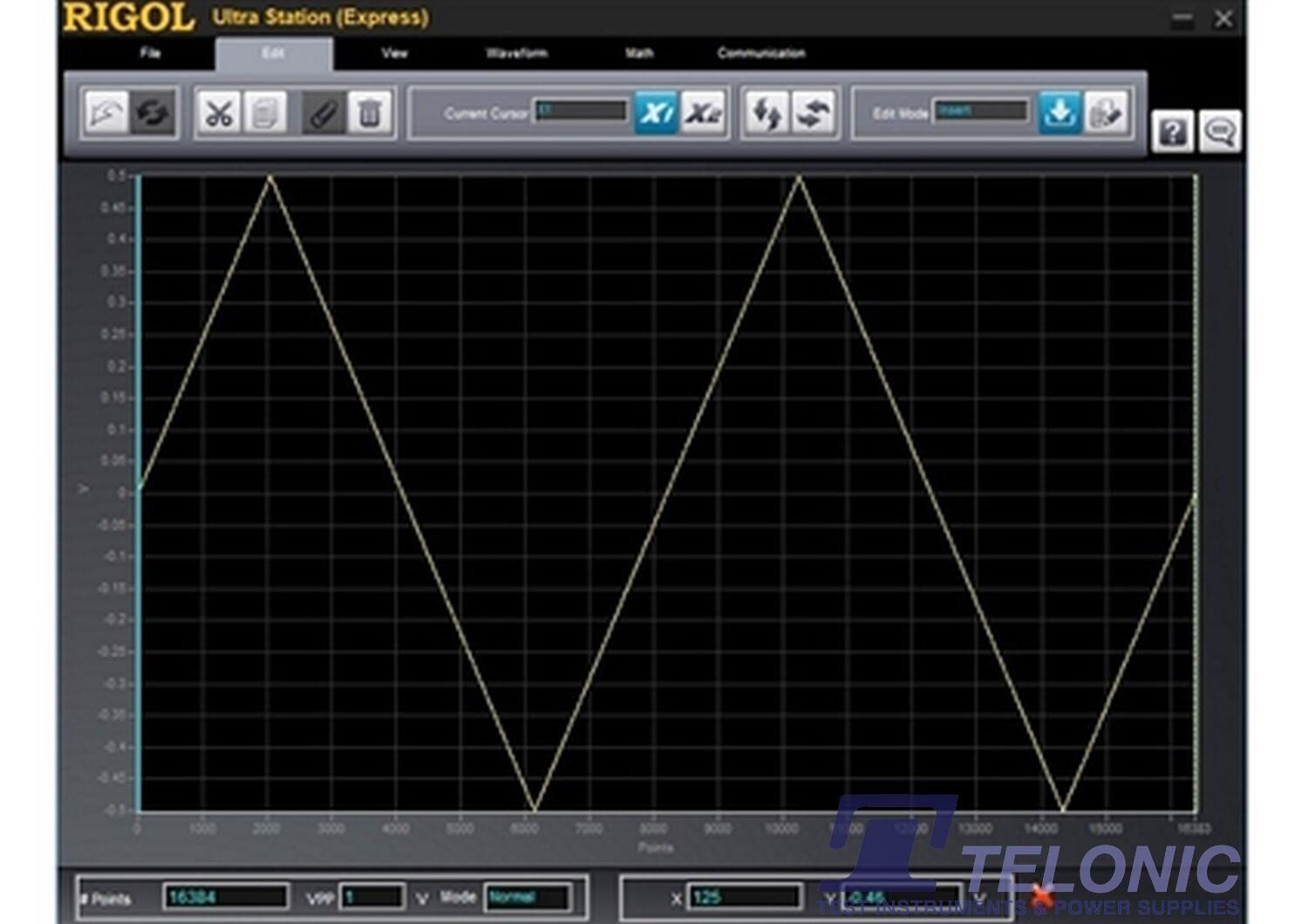

- Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing

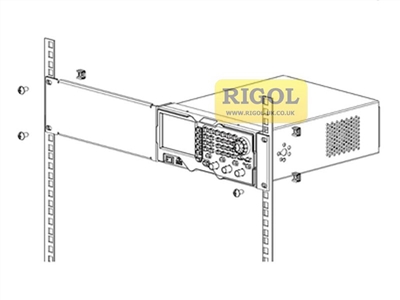

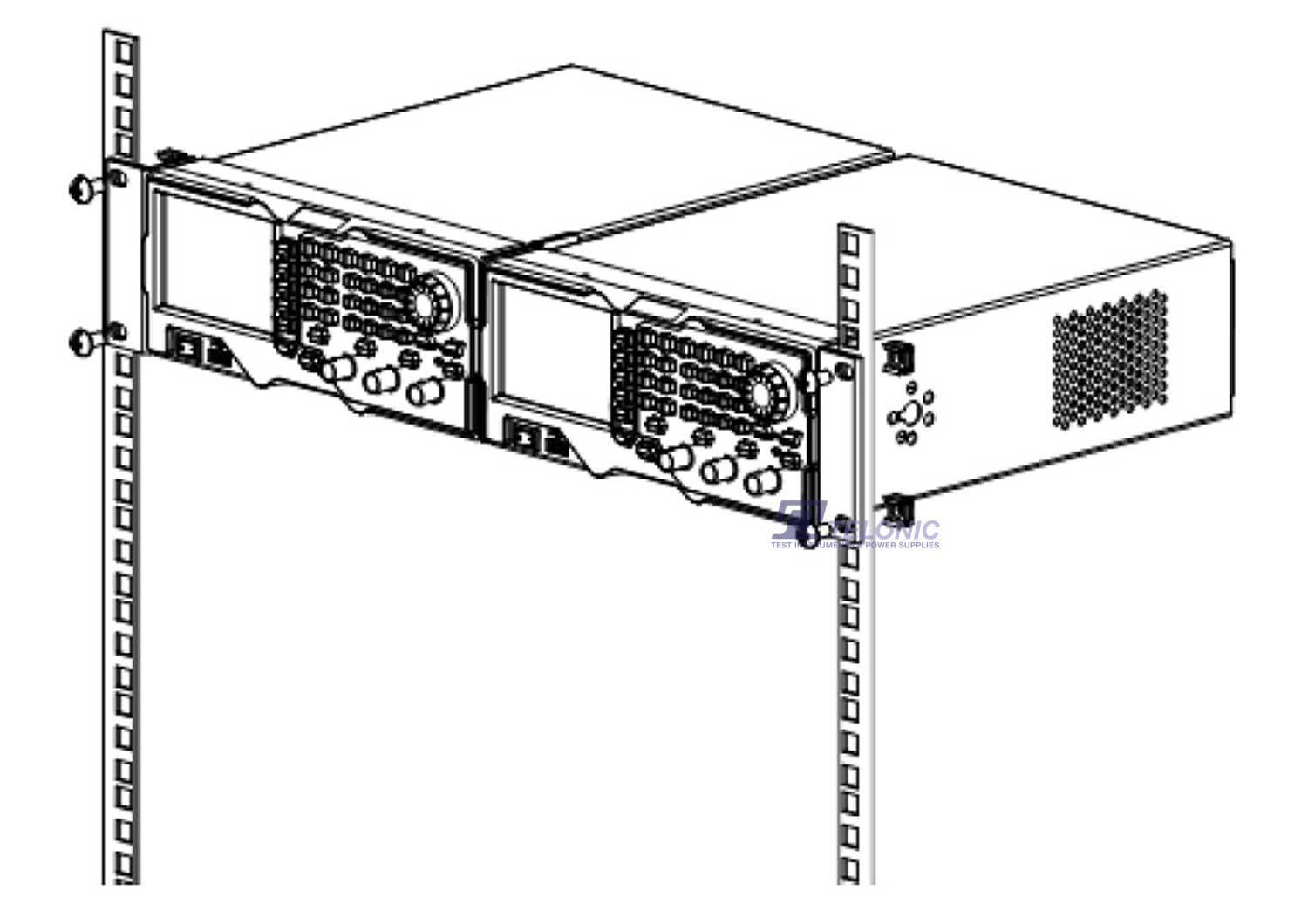

- Other options include… 16Mpts memory, 10W power amplifier, 40dB attenuator, rack mount kits (single & dual), USB to GPIB module, RCL Standard Calibration, RCL 17025 Calibration
