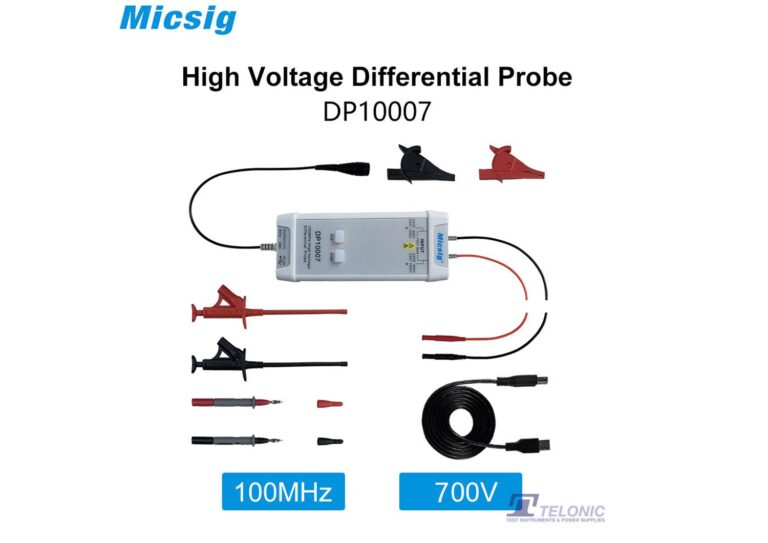

Micsig DP10007 ±70V 10X ±700 100X Differential Probe

£161.25 (£193.50 inc VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: DP10007 Categories: , ,

Description


DP10007 is the newest product of DP series, it allows conventional earth-grounded oscilloscopes to be used for floating signal measurements of up to 700 V of differential voltage and common mode voltage.

Applications include…

  • Floating measurements
  • Switch-mode power supply design
  • Motor drive design
  • Electronic ballast design
  • CRT display design
  • Power converter design and service
  • Power device evaluation

Features:

  • 100MHz bandwidth
  • Rated to measure differential and common mode voltage up to ±70V (DC + ACpp) at 10:1 mode
  • Rated to measure differential and common mode voltage up to ±700V (DC + ACpp) at 100:1 mode
  • Maximum input voltage to Earth 1.0kV CAT II

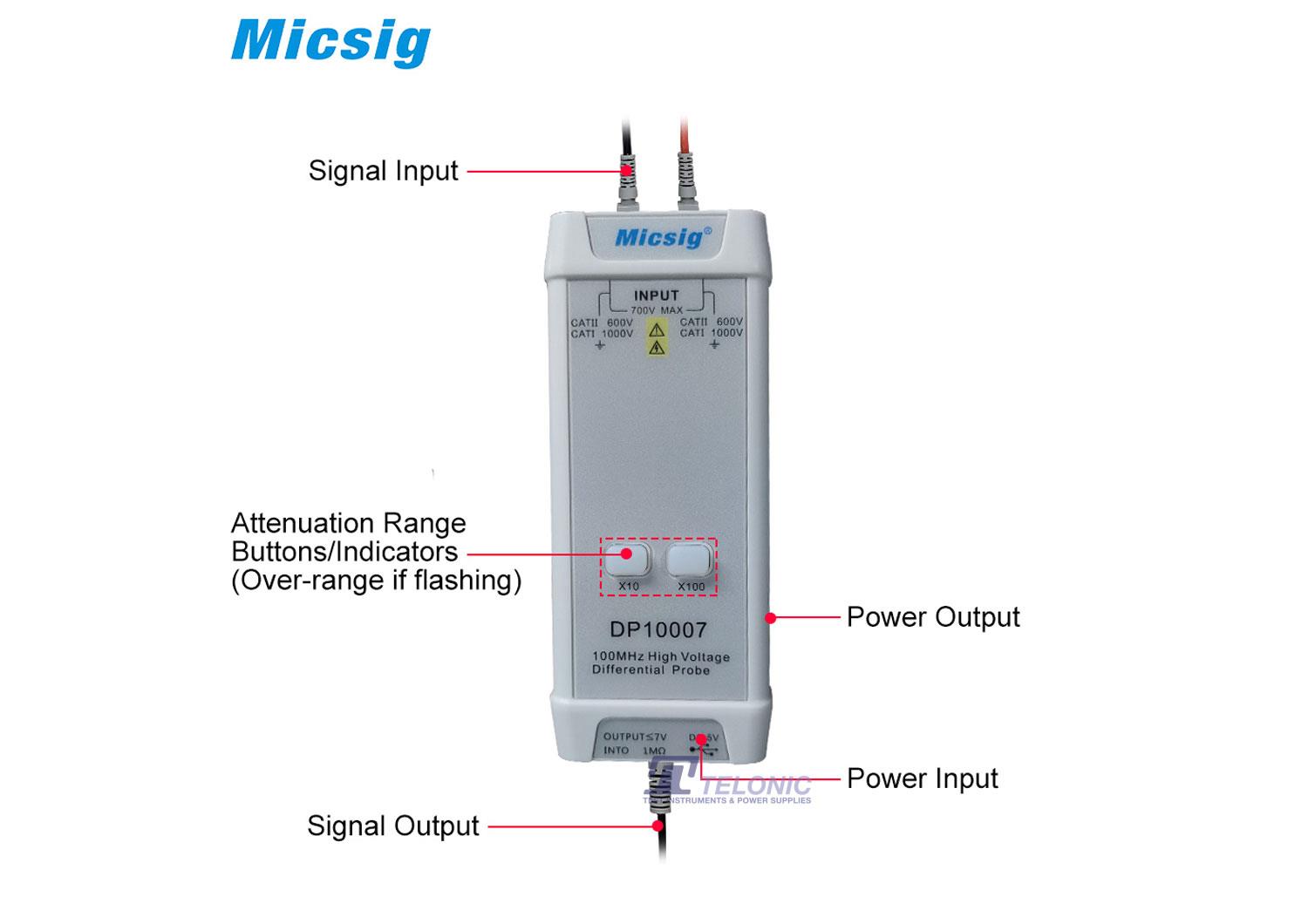

  • Switchable attenuation, 10x and 100x

Documentation

Datasheet

Micsig Differential Probe Datasheet


DP10007 Specifications
ModelDP10007
Bandwidth100MHz
Rise Time3.5ns
Attenuation10X
100X
Gain accuracy±2%
Maximum Differential Test Voltage (DC+AC PK）70V（10X）
700V（100X)
Maximum input common mode voltage (DC+AC PK）CAT II 600V
CAT I 1000V
Input referred noise≤15mVrms（10X）
≤60mVrms（100X）
Common Mode Rejection Ratio≤-80dB@50Hz
≤-50dB@1MHz
≤-60dB@20KHz
≤-40dB@10MHz
Input Impedance8MΩ/1.25pF（differential）
4MΩ/2.5pF（single-ended to ground）
Output Voltage≤7V
Over range AlarmButton light flashes
Power SupplyDC  5V，USB Supply
Power1.25W
Dimension14.5cm*6cm*2.7cm
Input cable lengthApprox 45cm
Output cable lengthApprox 90cm

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
