JBC JTSE-2QA Hot Air Soldering Station WITHOUT Extractor Desk

(£0.00 inc VAT)

SKU: JTSE-2QA Categories: ,

Description

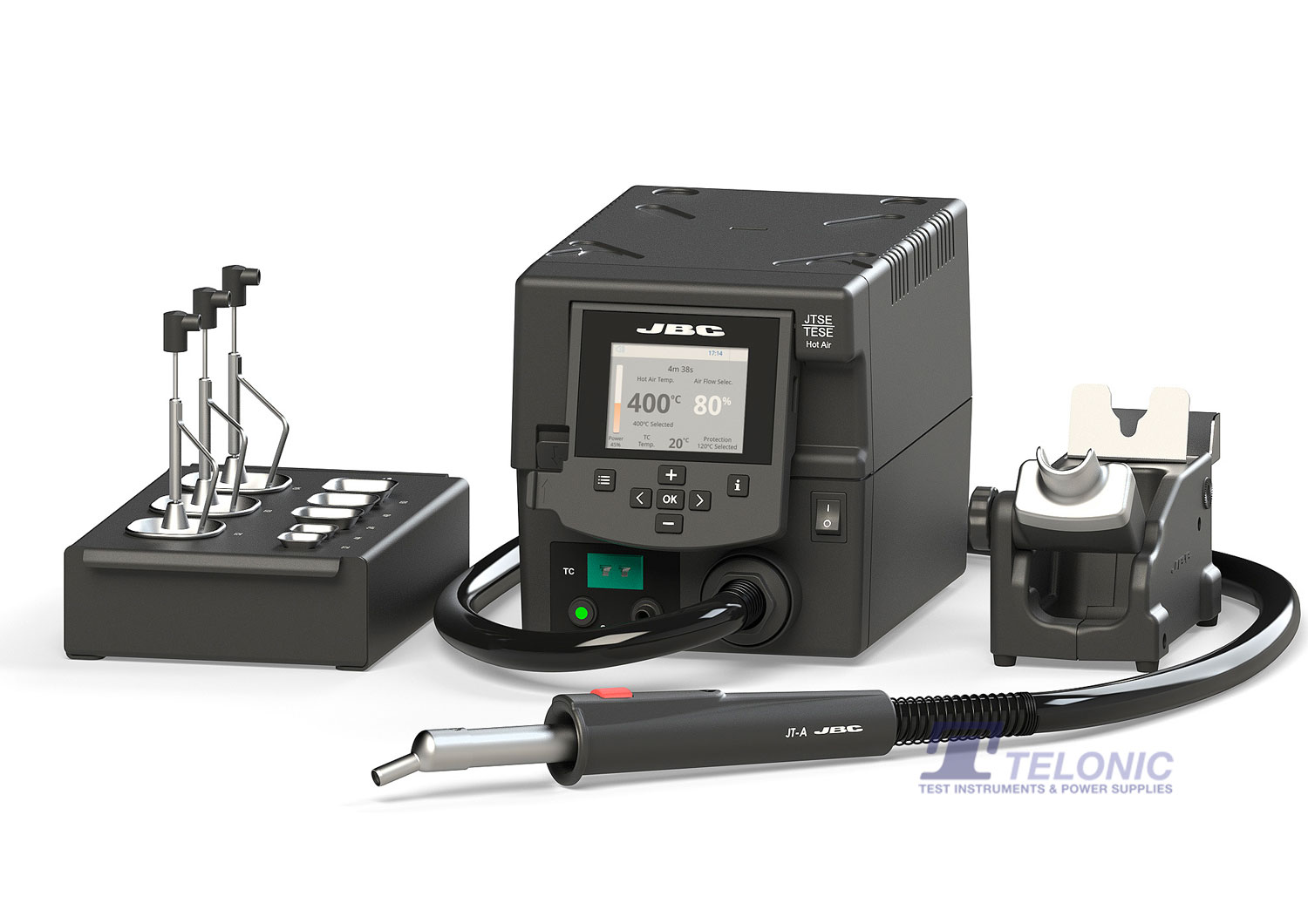

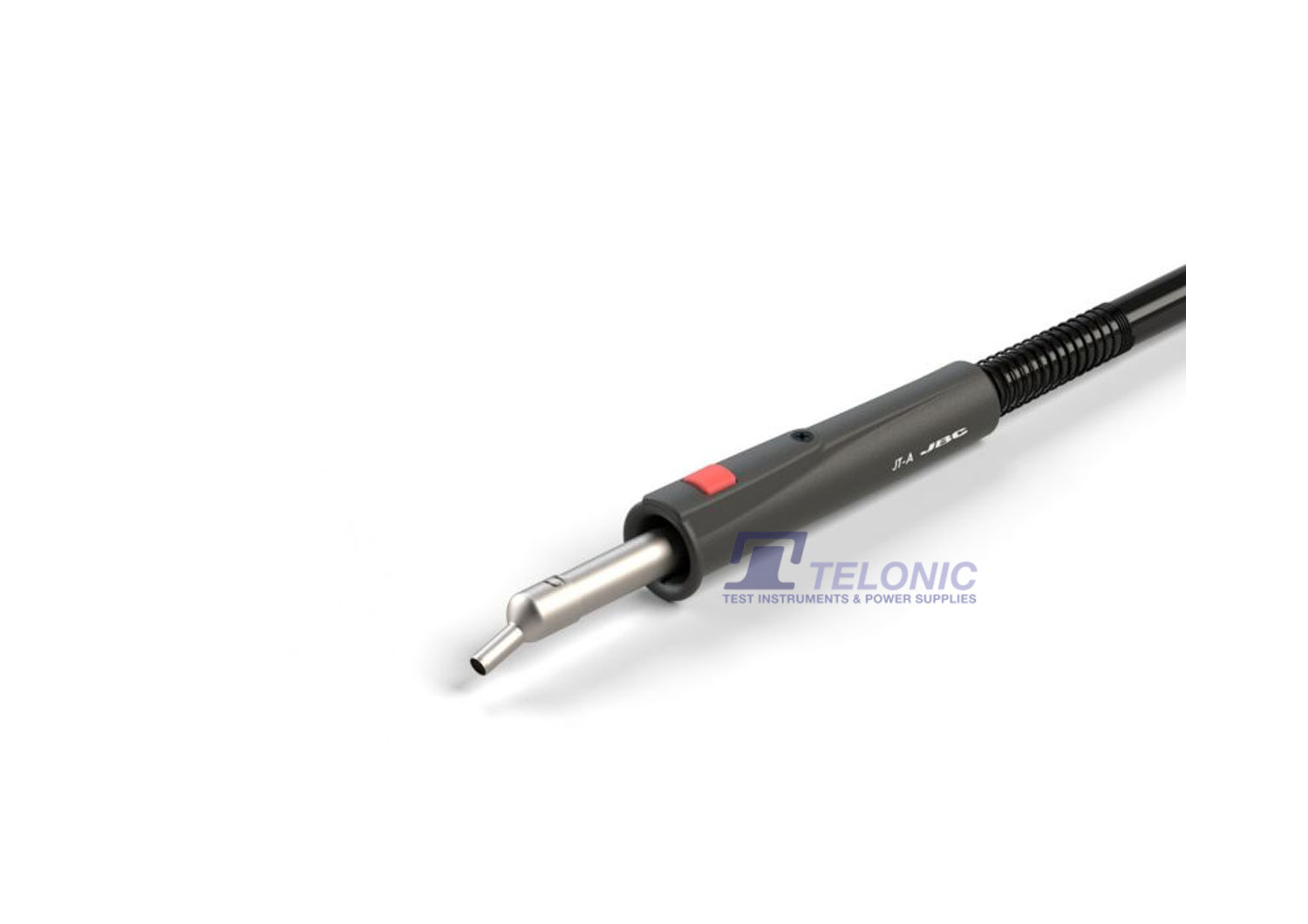

This JBC JTSE-2QA is a 700W high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.

Two work modes
You can set the temperature values and air flow rate manually or by creating your own profiles(up to 25).
Control Thermocouple
Read the temperature at a specific point on the PCB with the control thermocouple. It helps
protect the components or a specific area on the PCB and provides greater precision when regulating the temperature.
Auto-stop function

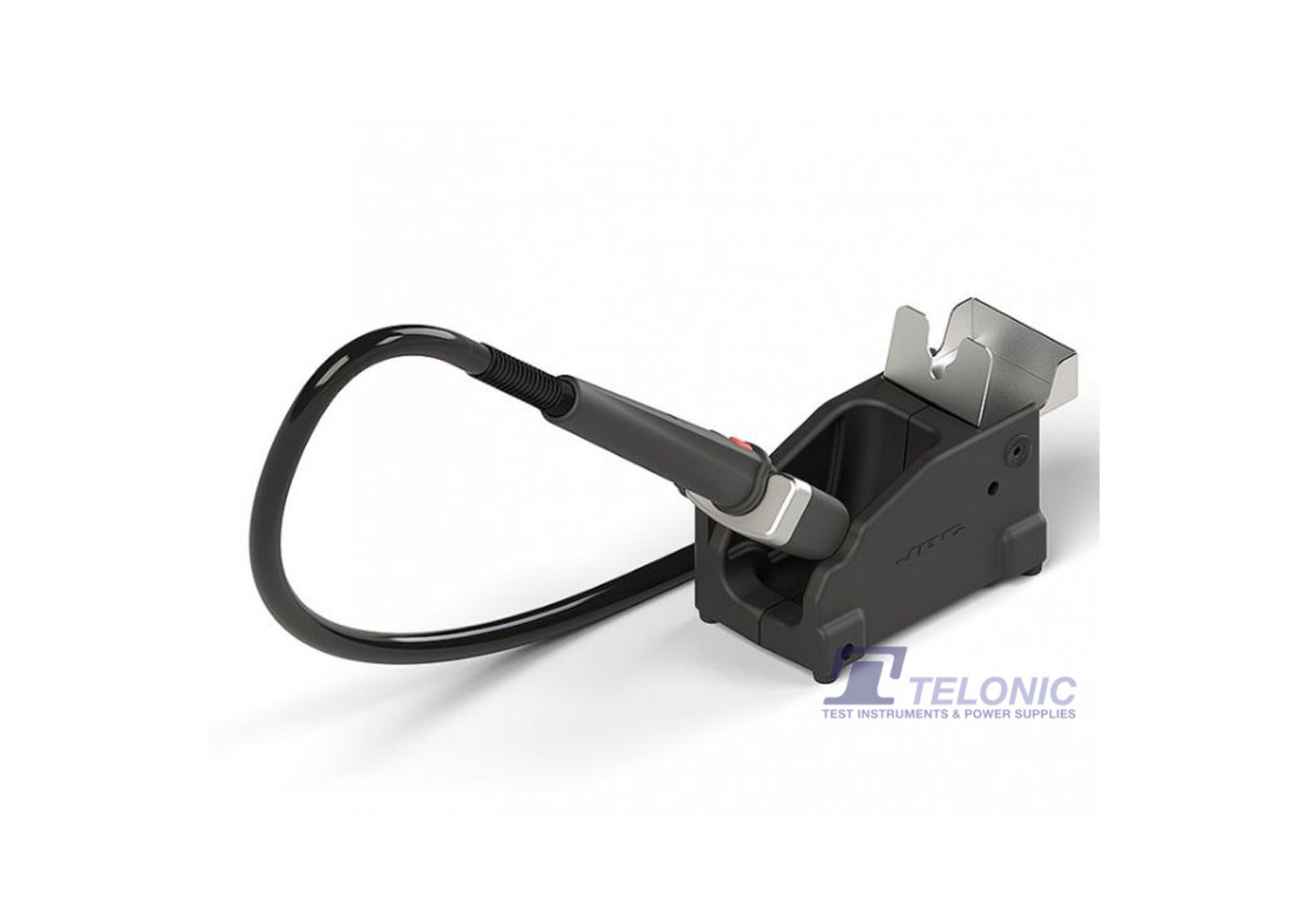

A safety measure which ensures the heat is automatically cut off when the tool is in the JT-SD stand.

Features:

  • Selectable Temperature: 150 to 450 ºC (300-840 ºF)
  • Air flow: 5 to 50 SLPM
  • Temperature profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
  • Operating modes: Heating / Profiles / Cooling
  • Vacuum: 30% / 228 mmHg / 9 inHg
  • CONNECTIVITY:
  • Type K thermocouple: Can be used both for Control and Protection purposes.
  • USB-B (rear): Software PC
  • USB-A (front): Firmware update, Graphics / Profiles management
  • Robot: RS-232 remote control
  • Pedal: Optional tool control
  • Equipotential bonding: Optional connection to EPA
  • ESD/EOS:
  • ESD Safe
  • POWER SUPPLY:
  • Peak power: 700 W
  • Ambient operating temp: 10 to 50 ºC / 50 to 120 ºF
  • DIMENSIONS AND WEIGHT
  • Premium Stations: 230 x 148 x 160 mm / 4.93 kg. – 9.06 x 5.83 x 6.30 in / 10.86 lb.
  • Package: 474 x 368 x 195 mm / 6.01 kg. – 18.66 x 14.49 x 7.68 in / 13.25 lb.
JTSE-2QA Specifications
ModelJTSE-2QA
Selectable Temperature150 to 450 ºC (300-840 ºF)
Air flow5 to 50 SLPM
Temperature profiles
Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
Operating modes
Heating / Profiles / Cooling
Vacuum30% / 228 mmHg / 9 inHg
Peak power
700 W
Ambient operating temp10 to 50 ºC / 50 to 120 ºF
Dimensions230 x 148 x 160 mm
Weight4.10kg

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
